THE IMPORTANCE OF NDT IN THE PRECISION INDUSTRY

The precision industry is a sector focused on the manufacturing, design, and assembly of products and components with extremely strict dimensional and geometric tolerances. It spans a wide range of fields, from traditional to cutting-edge industries, where precision and reliability are paramount. This industry plays a key role in producing high-quality goods for diverse domains such as aerospace, medicine, automotive, watchmaking, and many more.

To meet these demanding requirements, CMS has designed and developed Eddy Currentand Ultrasonic inspection sensors and systems to detect defects both on the surface and subsurface of these precision components. CMS high-performance sensors operate on extremely fine products, such as wires with diameters as small as 0.1 mm, as well as on products with complex geometries.

Our goal is to ensure that your parts meet the required specifications before being integrated into applications.

CMS EXPERTISE

  • Defects detection: surface, subsurface, internal, external, transverse, longitudinal, oblique defects, holes, microcracks, porosity, corrosion…
  • Material sorting, mix grades…
  • Checking heat treatment and hardness
  • And much more…



Combined Eddy Current and Ultrasonic inspection is also possible for more complete control.

All our Ultrasonic and Eddy Current systems meet the requirements of current European and international standards ASTM, API, DIN, SEP, BS, ISO, ASME, ASNT…

Our teams are at your disposal to discuss your project and build together an effective solution adapted to your needs, while taking your constraints into consideration.

 MAIN ADVANTAGES

  • State-of-the-art inspection NDT systems: CMS systems are fully customizable to suit the specific product being inspected, as well as your detection requirements and constraints. Precise and compact, they are able to inspect very small and thin products.
  • Early Defect Detection: CMS systems help identify small cracks, porosities, inclusions, or other surface defects with high sensitivity and high speed at early stages of production. Parts can be sorted by material.
  • Preservation of Material Integrity: CMS NDT systems allow the inspection of small applications without altering them, meaning they can continue to be used after testing.
  • Enhanced Security: By identifying weaknesses in precision applications, CMS systems reduce the risk of accidents or catastrophic failures, especially in critical industries.
  • Production Quality Control and Certifications: CMS systems ensure parts comply with strict industry standards and better management of industrial risks.
  • Real Time Inspection: Thanks to our high-performance CMS software, inspection results are displayed in real-time ensuring continuous quality control.
  • Precise defect analysis and traceability: Comprehensive inspection reports with complete traceability tracking are created at the end of the control.

FOR MORE INFORMATION

OUR NDT SYSTEMS & REFERENCES

Here are a few examples of inspected parts for the precision industry and some of our NDT systems:

Eddy Current inspection non-magnetic products thanks to encircling coils

Eddy Current inspection of magnetic products thanks to magnetizing unit

Material sorting of turned parts thanks to Eddy Current encircling sorting probe

Eddy Current inspection of needles thanks to encircling coil

Precise wire inspection (Ø from 0.8 mm) at high speed to detect longitudinal defects thanks to Eddy Current rotating head TRVC

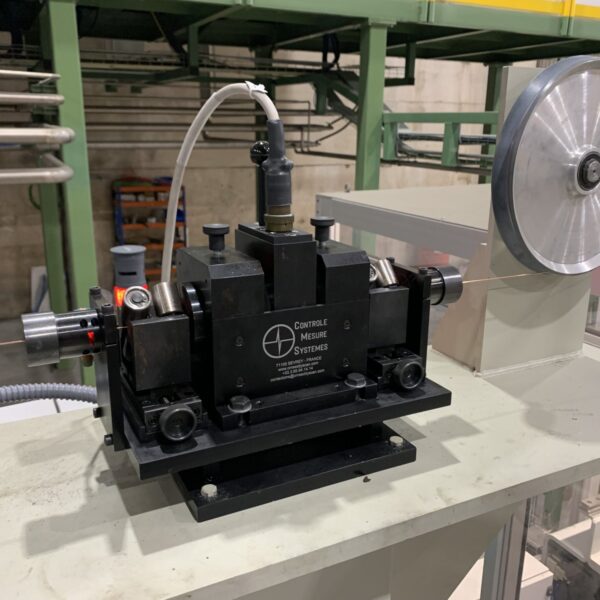

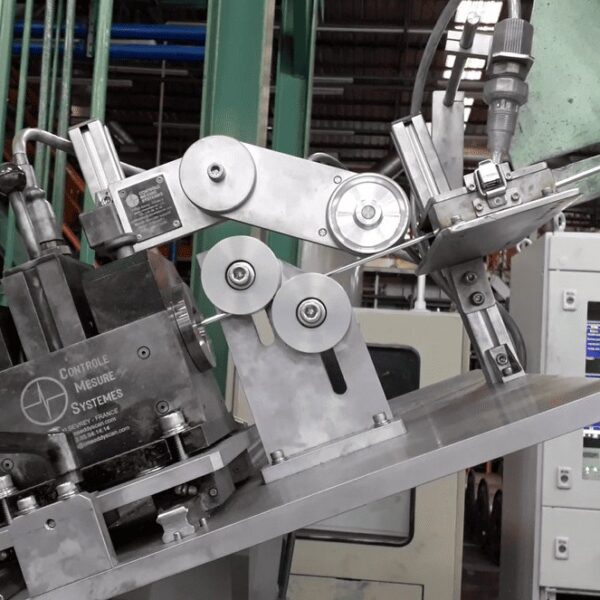

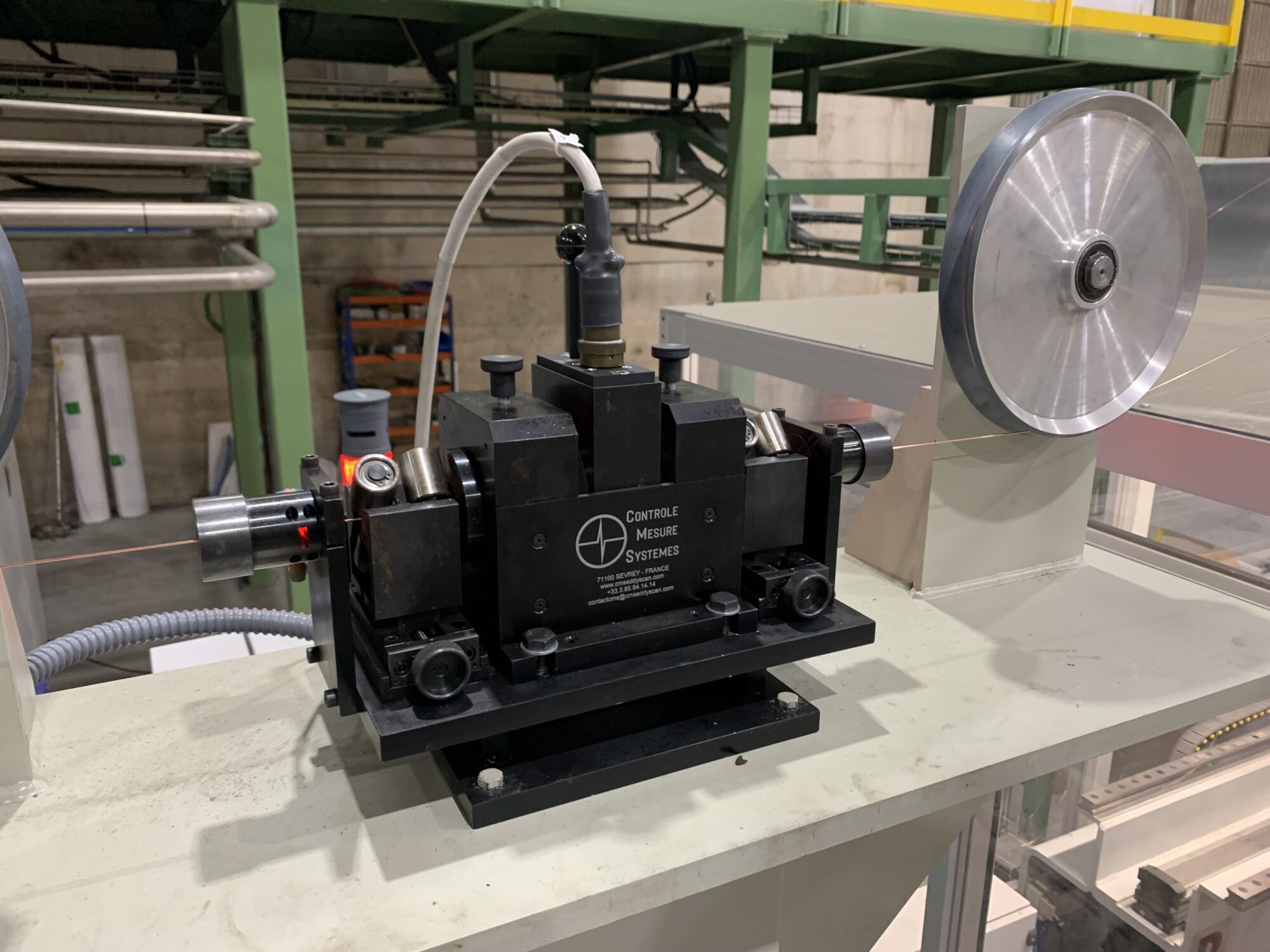

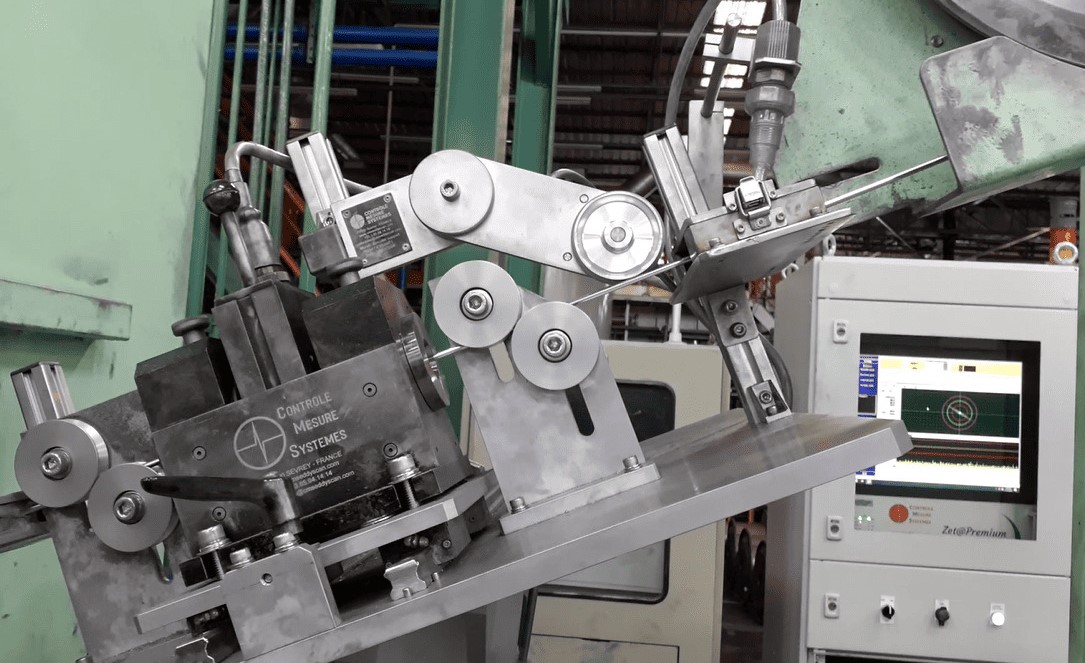

Precise wire inspection (Ø from 0.1 mm) at high speed to detect short and transverse thanks to Eddy Current encircling coil

Precise parts inspection thanks to Eddy Current pencil probe

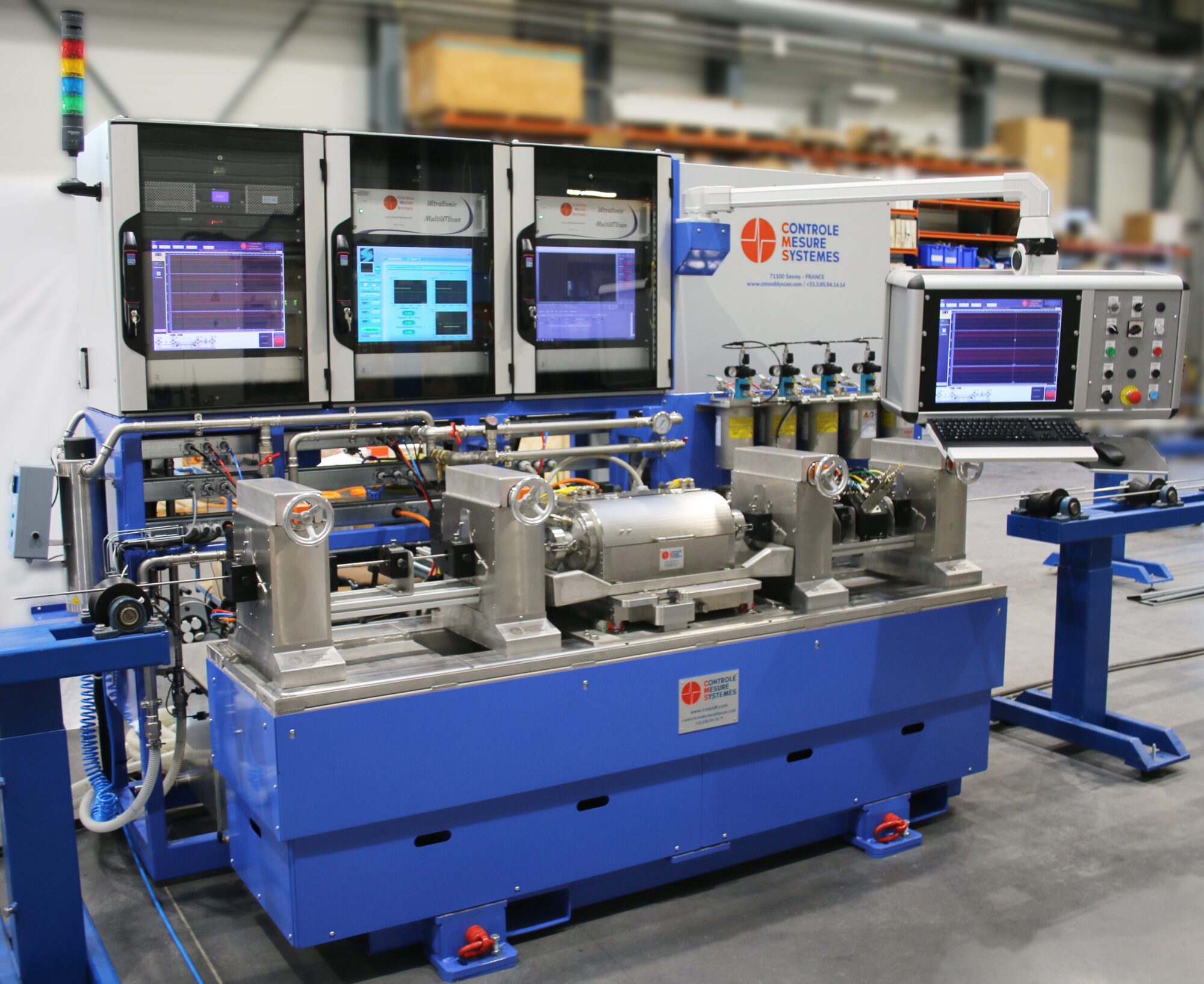

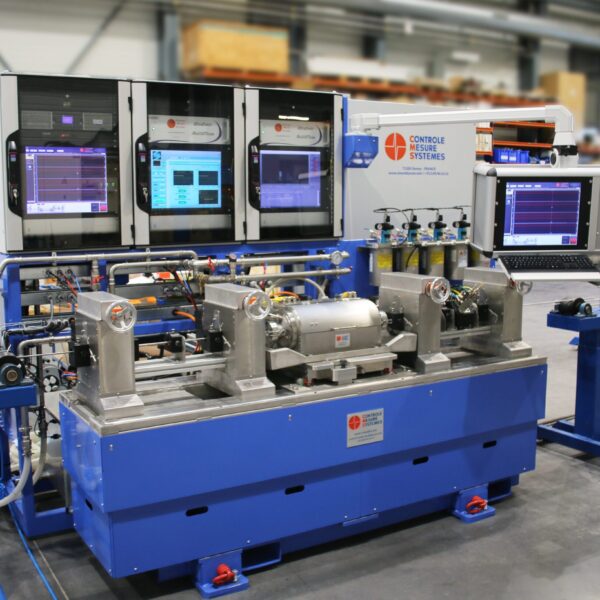

Internal/external defects detection on tubes and bars (Ø from 4 mm) thanks to Ultrasonic rotating head RotoUTscan

our main references in the field

INSPECTED PRODUCTS

Our systems enable Non-Destructive Testing of a wide range of aluminium applications such as: micro-tubes, micro-bars, micro-parts, wires, watch gear, needles, parts with special geometries…

CMS STRENGTHS / ADDED VALUE

Since 1988, CMS designs, manufactures and installs Non-Destructive Testing solutions for the precision industry


Start with an Eddy Current/Ultrasonic product and build a 100% customized solution based on our experience and to meet your specific needs

Production and design of all our Eddy Current/Ultrasonic probes, sensors and software on our own premises (mechanical and electronic design office, engineering, etc.)

Highly responsive in providing assistance and information to our customers

A wide range of complementary Eddy Current/Ultrasonic systems and accessories that can be combined to offer you inspection of specific parts for the precision industry

Eddy Current and Ultrasonic inspection results are displayed in real time, and traceability is ensured by our production software, which creates complete inspection reports

Inspection speed optimized to production constraints

INNOVATION: Ability to combine Eddy Current and Ultrasonic inspection methods for 100% product inspection
