Demagnetizing Unit

The Demagnetizing Unit is installed directly on the production line, following the Magnetizing Unit. It is designed to remove residual magnetic fields from the product to prevent interference with subsequent manufacturing processes.

3 versions of the Demagnetizing Unit are available:

  • Demagnetizing Unit AC
  • Demagnetizing Unit AC Tunnel
  • Demagnetizing Unit DC
  • Demagnetizing Unit DC + AC



Robust, compact with low maintenance, these systems are customized according to custumers needs. Several versions of the Demagnetizing Unit are available depending on the diameter of the product.

These systems comply with international standards such as ASTM, API, BS, AF, DIN, EN, SEP and others.


  • Products range

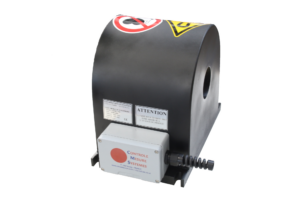

Demagnetizing Unit AC: Creation of an alternating demagnetizing field at 50/60 Hz.

AC STANDARDAC STD T1AC STD T2
Maximum Ø (mm)4080
Maximum Ø (inch)1.53
Power Supply Max0-240 VAC / 50-60HZ / 1.5 KW

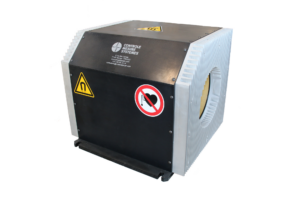

Demagnetizing Unit AC Tunnel: Like the Demagnetizing Unit AC, it creates an alternating demagnetizing field at 50/60 Hz. The AC Tunnel Demagnetizing Unit is larger, creating more alternating cycles for better demagnetizing.

AC TUNNELAC T1AC T1.2AC T2AC T3AC T4
Maximum Ø (mm)104080170230
Maximum Ø (inch)3/81.536.59
Power Supply Max0-240 VAC / 50-60HZ / 3.3 KW

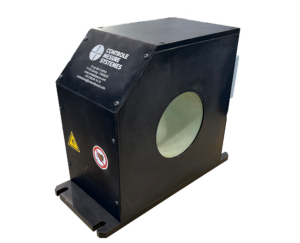

Demagnetizing Unit DC: Creation of a continuous field exactly opposite to that created by the Magnetizing Unit.

DCDC T1DC T2DC T3DC T4
Maximum Ø (mm)4080170230
Maximum Ø (inch)1.536.59
Power Supply Max0-240 VAC / 50-60HZ / 330 KW

Demagnetizing Unit DC + AC: For difficult applications requiring high power (bars, thick tubes…), the Demagnetizing Unit DC+AC has a low-frequency box capable of handling both continuous and alternating voltage.


DC+AC WITH LOW FREQUENCY POWERBOXDC/AC T1DC/AC T2DC/AC T3DC/AC T4
Output frequency10-50 HZ
Output intensity5-50 HZ
Maximum Ø (mm)4080170230
Maximum Ø (inch)1.536.59
Power Supply Max230 VAC / 50-60 Hz
400 VAC / 50-60HZ
