Eddy Current and Ultrasonic inspection methods complement each other and, when combined, enable a comprehensive surface and depth inspection of products.
A turnkey technical solution is developed based on the required inspection characteristics. This process can extend to defining the surrounding mechanics or even designing a complete conveyor line.

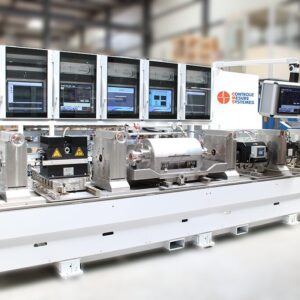

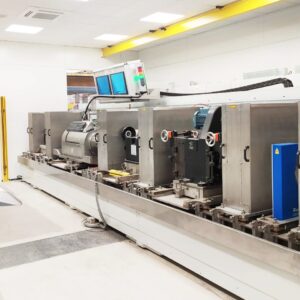

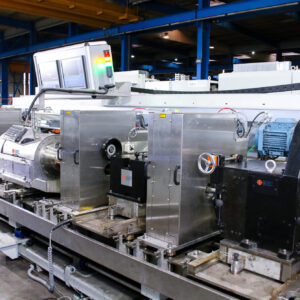

The inspection is conducted on a fully equipped test bench that integrates both Eddy Current and Ultrasonic systems. Additional control systems can also be incorporated and managed by the supervisor.
All inspection data is collected and processed by the supervision software, which generates detailed reports. The systems can be endlessly configured to create custom test benches that meet specific customer requirements.
Advantages of Combined Ultrasonic and Eddy Current Testing
Combined Eddy Current & Ultrasonic inspection:
Defects detection: surface, subsurface, internal, external, transverse, longitudinal, oblique defects, holes, cracks…
Perform a complete volumetric inspection
Perform dimensional measurements (thickness, ovality, eccentricity, internal and external diameter)
All our combined Ultrasonic and Eddy Current systems meet the requirements of European and international standards (ASTM, API, DIN, SEP, BS, ISO, ASME, ASNT, SAE…), calibration standards and comply with EN 12668-1, EN 22232-1, EN 15548-1, EN 15548-2, EN 15548-3, EN 15549.
| Zet@Micro: The most economical and easy-to-use instrument in our Zet@ range, designed for defect detection and material sorting. + technical information |  |
| Zet@Premium: The standard version of our Zet@ range with a touch screen, compact and easy to use, designed for defect detection and material sorting. + technical information |  |
| Zet@Master: The most powerful, self-contained and easy-to-use version of our Zet@ range, designed for fault detection and multi-sensor applications. + technical information |  |
| MultiUTscan: MultiUTscan is a powerful, high-precision, multi-frequency, multi-channel Ultrasonic inspection instrument. It performs defect detection, dimensional measurement (ID, OD) and thickness measurement. + technical information |  |
Rotative Head RotoETscan: Dedicated to the detection of longitudinal defects on round products such as tubes, bars and wires in ferrous and non-ferrous materials. |  |

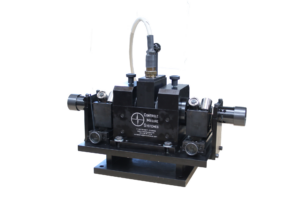

Coil support: The coil holder supports and centers the test coil on the product to be inspected. |  |

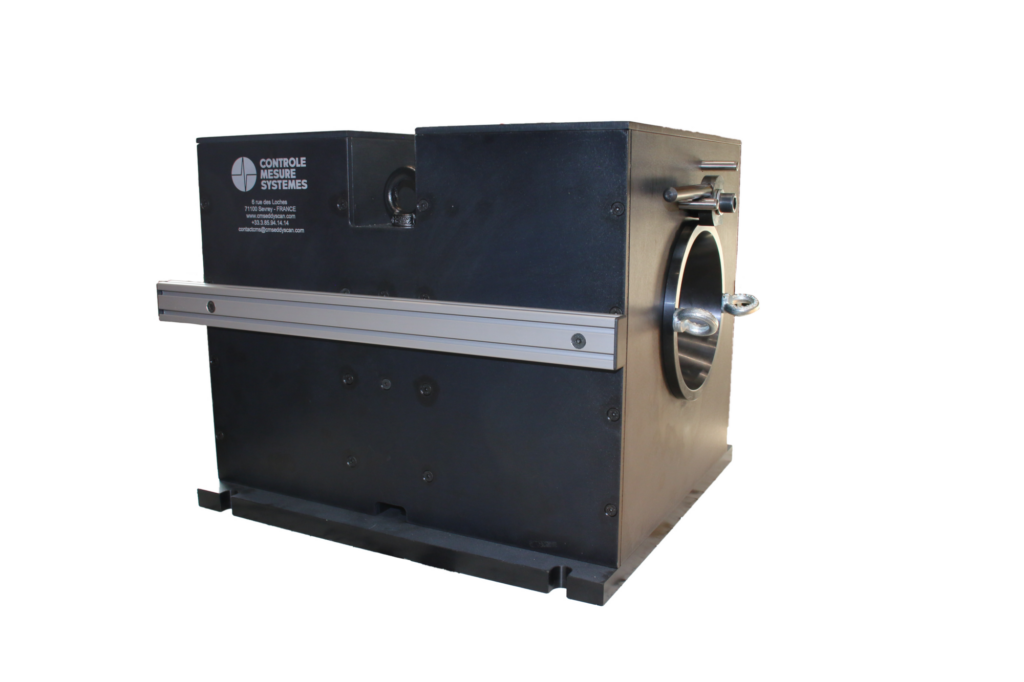

Magnetizing Unit: Coupled with an encircling coil, it can be used to detect point and transverse defects on the surface or below the surface of ferromagnetic materials. |  |
Demagnetizing Unit: These systems make it possible to cancel out the remanent magnetic field within a product so as not to disturb its next processing stages. |  |

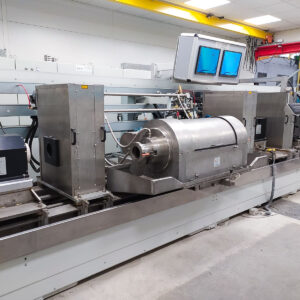

Rotating Head RotoUTscan: Dedicated to the detection of internal and external defects of any orientations on tubes, bars and wires, and performs dimensional measurements (ID, OD, wall thickness). |  |

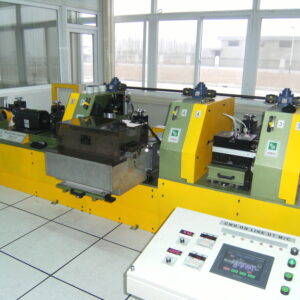

UT Line: The Phased Array Ultrasonic inspection system detects internal and external defects in bars and billets at very high speed. |  |
All our software is designed and developed in-house by our team of electronics engineers. They are fully customizable and adaptable to your needs.
Zet@Setting: Zet@Setting software is specially designed for defects detection. |  |
Zet@Setting Material Sorting: Zet@Setting Material Sorting software is specially designed for material sorting and hardness applications. |  |

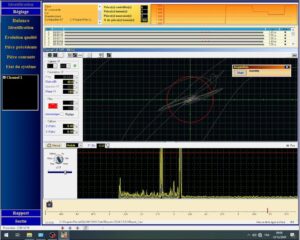

Production: Production software centralizes and collects information from Eddy Current equipment to create comprehensive inspection reports. |  |

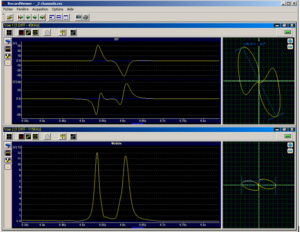

Recordviewer: Recordviewer lets you acquire and replay all the Eddy Current measurement points of an application in real time. |  |
All our software is designed and developed in-house by our teams of electronics engineers. They are fully customizable and adaptable to your needs.
Probus Supervision: Probus is a supervision software application, which collects information from the various NDT equipment and processes the resulting data. The Probus application is designed to be integrated as a quality control tool in the customer's production line. |  |
Probus Viewer Analyser: This software enables real-time acquisition and replay of all Ultrasonic measurement points in an application. |  |
Other software is available depending on the application. |
Mechanical testing bench: For each application, a test bench may be required to support the various systems and thus ensure inspection under the best possible conditions. |  |
Centering systems: They enable precise product guidance. |  |
Other accessories: Discover the many other accessories CMS has to offer. |  |
| Engineering: Our team is made up of complementary technical profiles: a mechanical design office, an electronics design office and a team of specialized technicians who design and build all our turnkey NDT systems. |
Installation: Our technical team installs, checks and calibrates instruments and systems on site or at our premises, as requested by our customers. A calibration certificate is then issued. |
Training: We can offer you high-quality training to help you become more efficient and effective in using our control systems. |
Rental: We offer Non-Destructive Testing equipment for rental. This option can be very effective and economical when inspecting small production runs or during a period of equipment breakdown. |
Support: On-site or remote support, in real time, enables our engineers to offer our customers fast, high-quality technical service. |
After-sales service: CMS instruments, systems, probes and sensors can be repaired after expert appraisal, costing and agreement. Please contact us for further information. |
Some examples of our combined Eddy Current and Ultrasonic applications installed at our customers’ site:

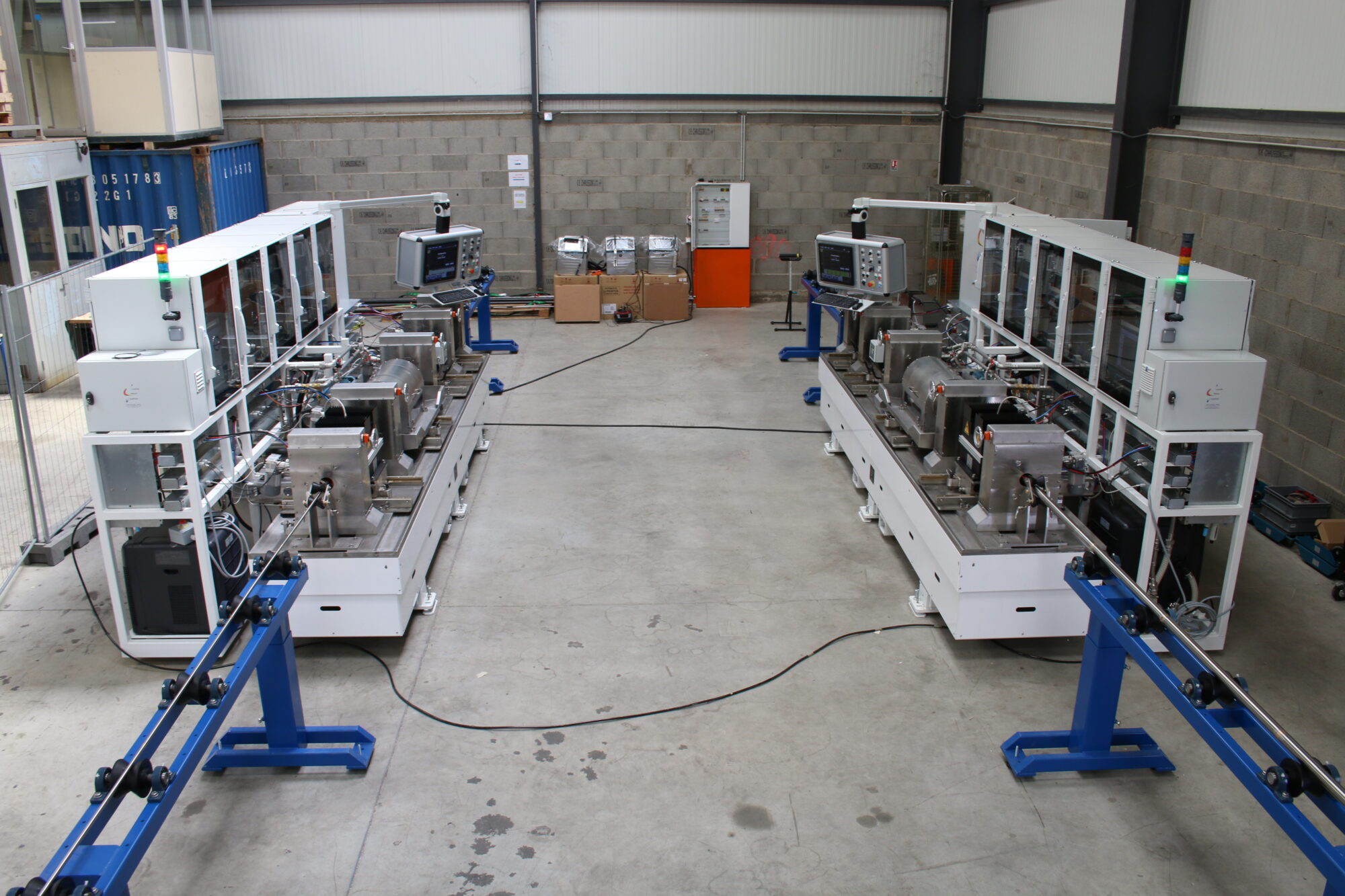

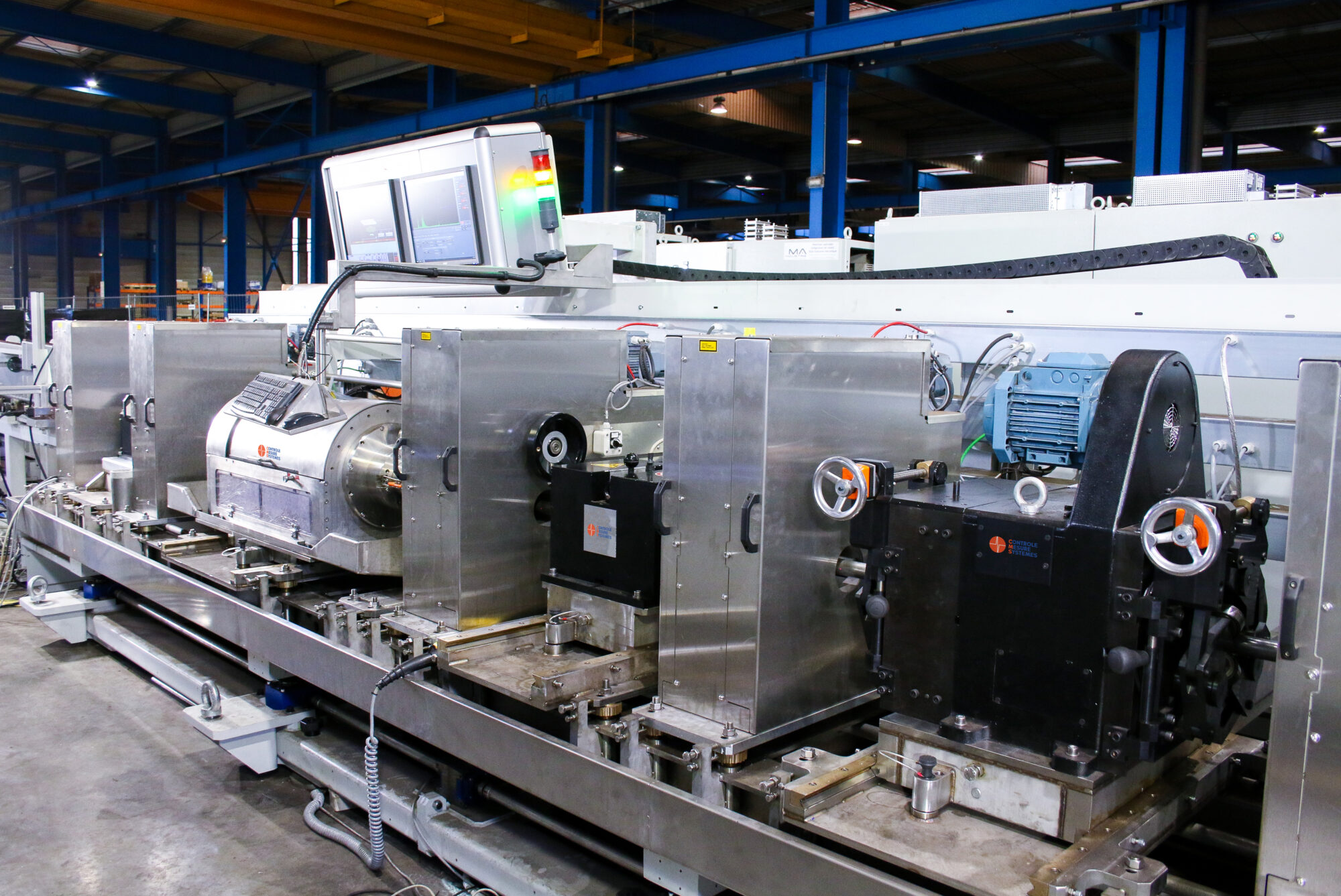

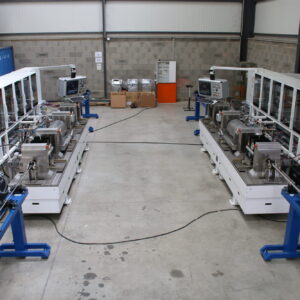

Combined NDT benches composed of Eddy Current and Ultrasonic equipment for seamless carbon steel tubes inspection

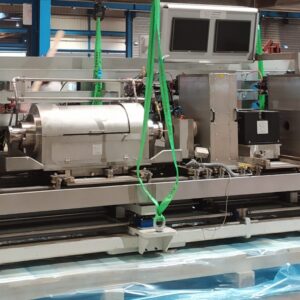

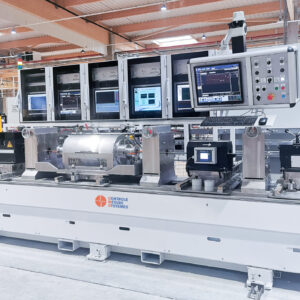

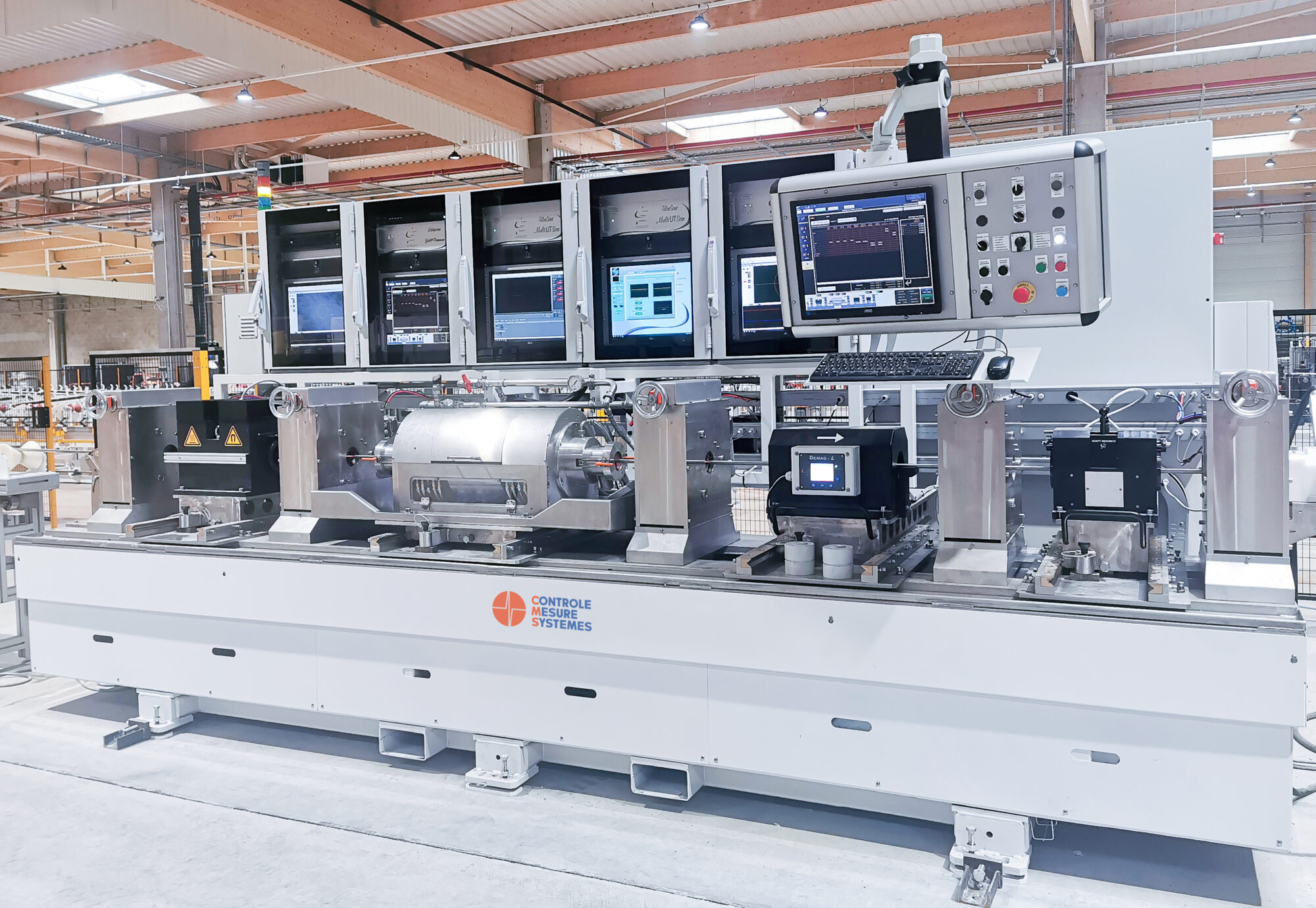

Bars and tubes inspection thanks to the combination of Eddy Current and Ultrasonic technologies
Combination of RotoETscan and RotoUTscan rotating heads
Combination of RotoUTscan rotating head with Magnetizing unit and Demagnetizing unit

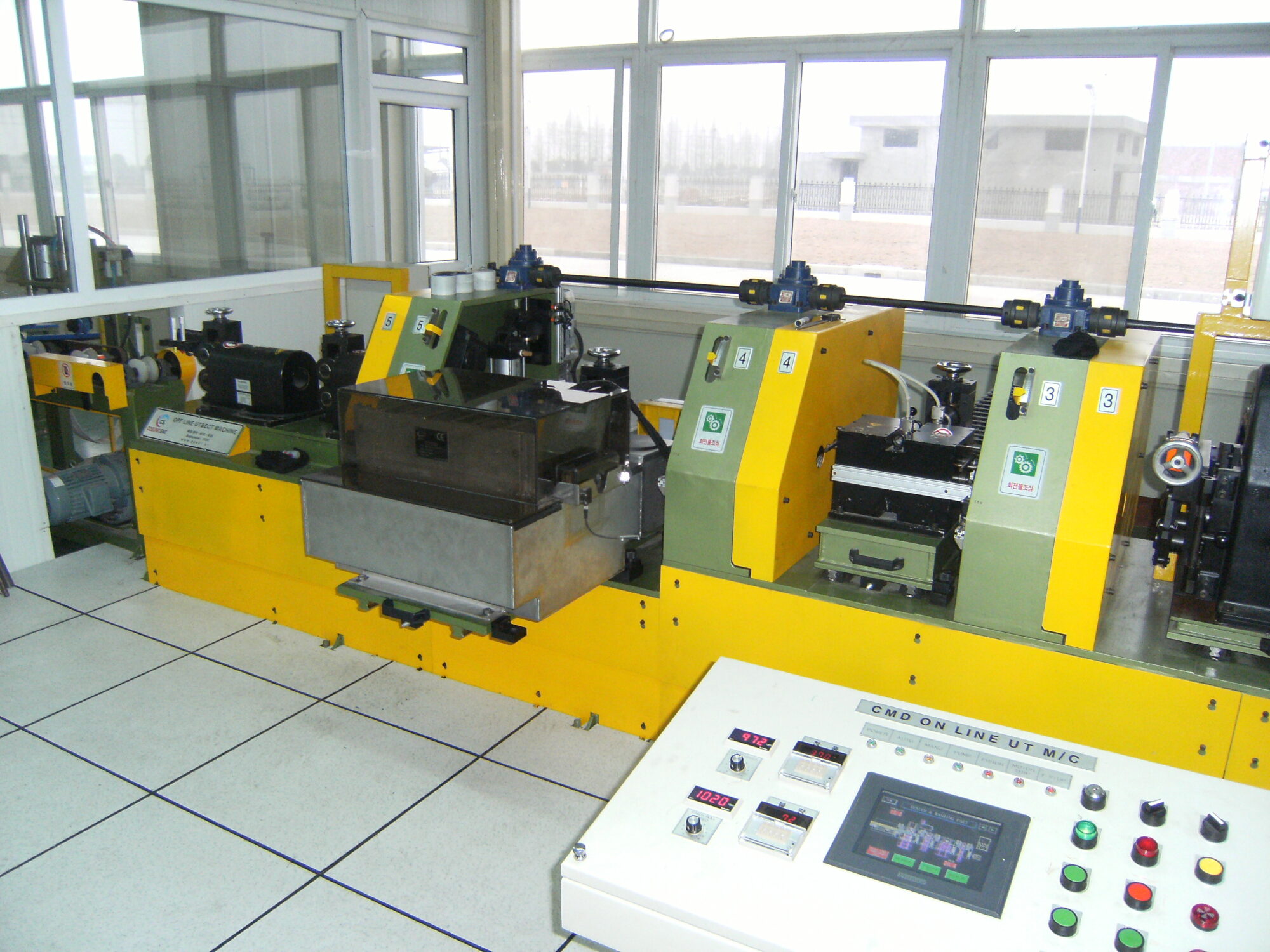

Combination of Ultrasonic Phased Array transducers with Magnetizing unit
Our applications allow the Non-Destructive Testing of many products:
Innovating and unique concept in the NDT market
Design and conception of inspection benches including mechanics, electronics and software
Combines all electronic, mechanical, engineering, probes, sensors, software, instruments, Eddy Current and Ultrasonic accessories for 100% products inspection
Includes dimensional measurement for more precise control
Since 1988, CMS designs, manufactures and installs turnkey ET and UT systems
Highly responsive in providing assistance and information to our customers
Ultrasonic/Eddy Current inspection results are displayed in real time and traceability is ensured by our production software, which creates complete inspection reports
Inspection speed optimized to production constraints
