Eddy currents are widely used in Non-Destructive Testing (NDT) to detect and characterize surface and subsurface defects in conductive materials, with a penetration depth of up to 30 µm under optimal conditions.

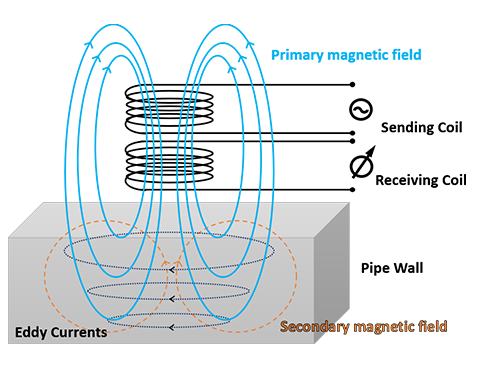

These currents are induced by a variable magnetic field generated by a sensor. They circulate locally within the examined material, with their distribution and spread influenced by several factors:
When a defect is present in the material, the flow of Eddy Current is disrupted, altering the apparent impedance of the sensor. This change depends on the nature and size of the anomaly.

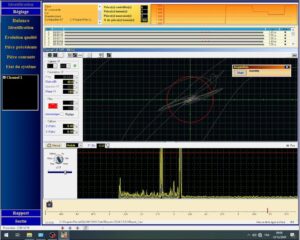

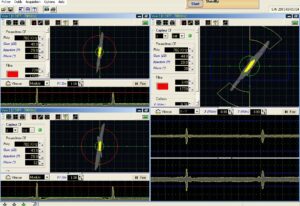

These variations are displayed in real-time on the instrument screen as Eddy Current signals or Lissajous figures. The amplitude and phase of these signals provide information about the nature of the detected defect.
Eddy Current are also affected by the electrical conductivity and magnetic permeability of a material. Therefore, this inspection method can also be used for Material Sorting applications.
Inspections with CMS Eddy Current devices:
Detection of surface and sub-surface defects with very high sensitivity: external, transverse, longitudinal, oblique defects, holes and cracks
Perform conductivity measurement
Perform high-temperature inspection
Perform material sorting, checking hardness and heat treatment
Ends and full body of the product inspection

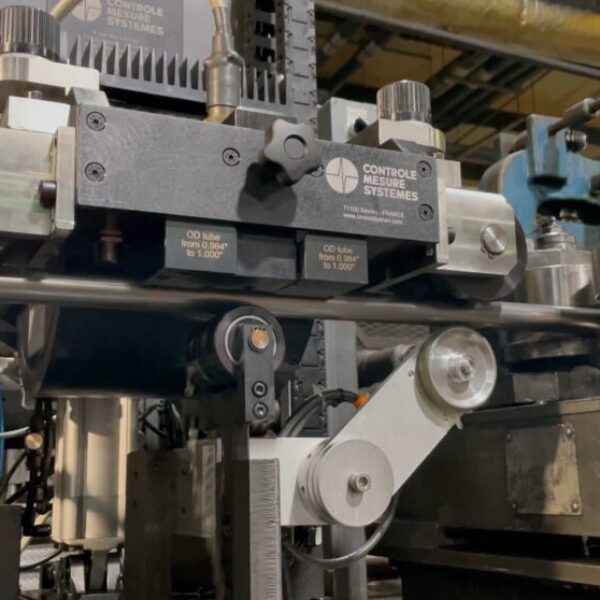

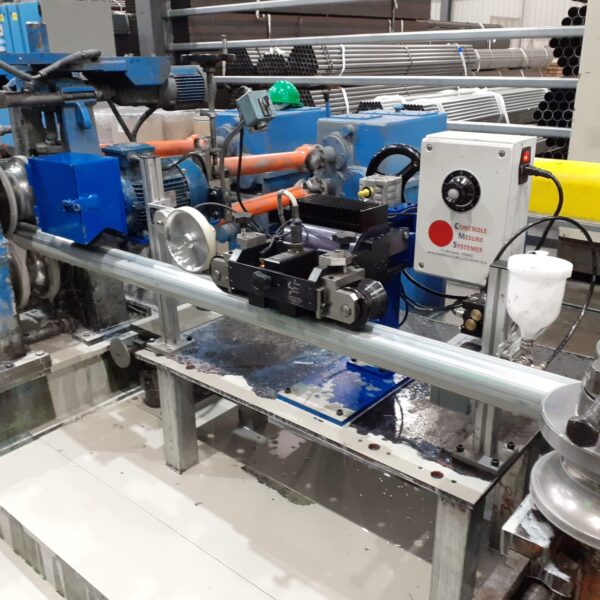

ERW weld inspection of tube
Our Eddy Current systems meet the requirements of European and international standards (ASTM, API, DIN, SEP, BS, ISO, ASME, ASNT, SAE…), calibration standards and comply with NF EN ISO 15548-1, NF EN ISO 15548-2, NF EN ISO 15548-3.

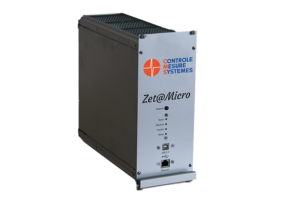

Zet@Micro: The most economical and easy-to-use instrument in our Zet@ range, designed for defects detection and material sorting. |  |
Zet@Premium: The standard version of our Zet@ range with a touch screen, compact and easy to use, designed for defects detection and material sorting. With Zet@Premium instrument, visualize your inspection in real-time. |  |

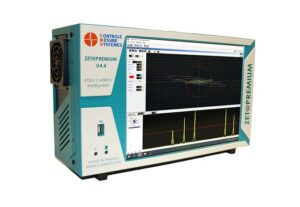

Zet@Master: The most powerful, self-contained and easy-to-use version of our Zet@ range, designed for defects detection and multi-sensor applications. With Zet@Master instrument, visualize your inspection in real-time. |  |

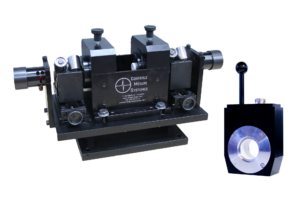

Rotating Head RotoETscan: Dedicated to the detection of longitudinal defects on round products such as tubes, bars and wires in ferrous and non-ferrous materials. |  |
Rotating Systems: These are robust, modular and upgradeable systems that rotate Eddy Current sensors. | |
Coil support: The coil holder supports and centers the encircling coil with the product to be inspected. |  |
Magnetizing Unit: Coupled with an encircling coil, it can be used to detect point and transverse defects on the surface or below the surface of ferromagnetic materials. |  |
Demagnetizing Unit: These systems make it possible to cancel out the remanent magnetic field within a product so as not to disturb its next processing stages. |  |
Sectorial Magnetizing Unit: Dedicated to the inspection of welded rolled tubes, it magnetically saturates the weld zone in order to carry out a segmental coil inspection of the same zone. |  |
Conductivity Measurement System: Control station for conductivity measurement by Eddy Current. |  |

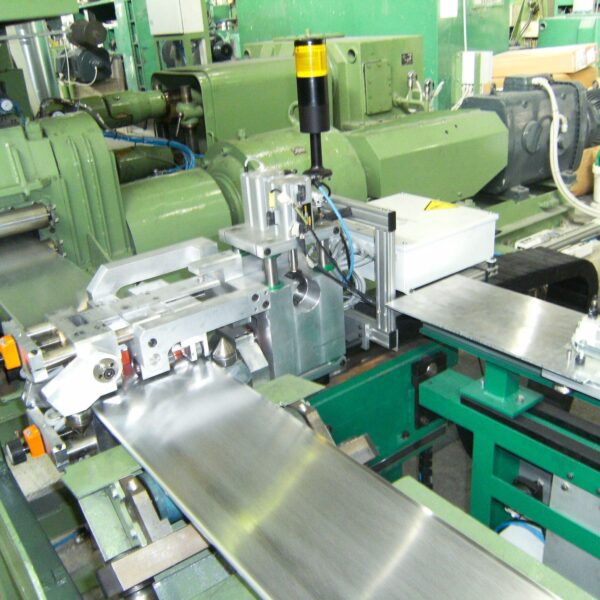

Strip Inspection System: Dedicated to inspection continuous cast aluminum strip |  |
Specific Systems: These systems are designed and developed for special applications. |

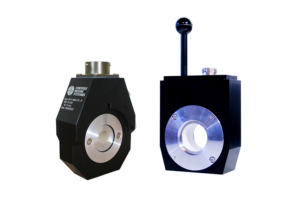

| Encircling Coils: Dedicated to surface inspection of ferrous and non-ferrous bars, wires and tubes, hot rolling and grade sorting of conductive materials. + technical information |  |
Array Probes : Dedicated to the inspection of tubes/barrels in rotation and translation, and to the inspection of parts with complex geometries. |  |
Internal Probes: Dedicated to the internal inspection of straight, bent and curved tubes... the inspection of steam exchanger tubes, the periodic inspection of complete exchangers and the available far-field inspection. |  |

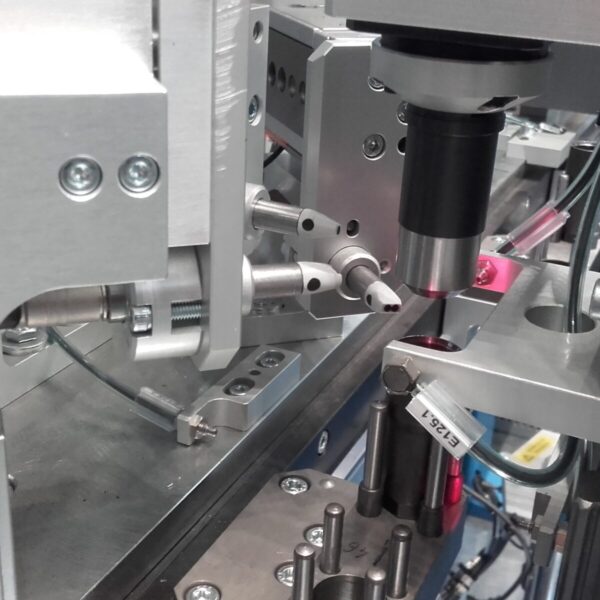

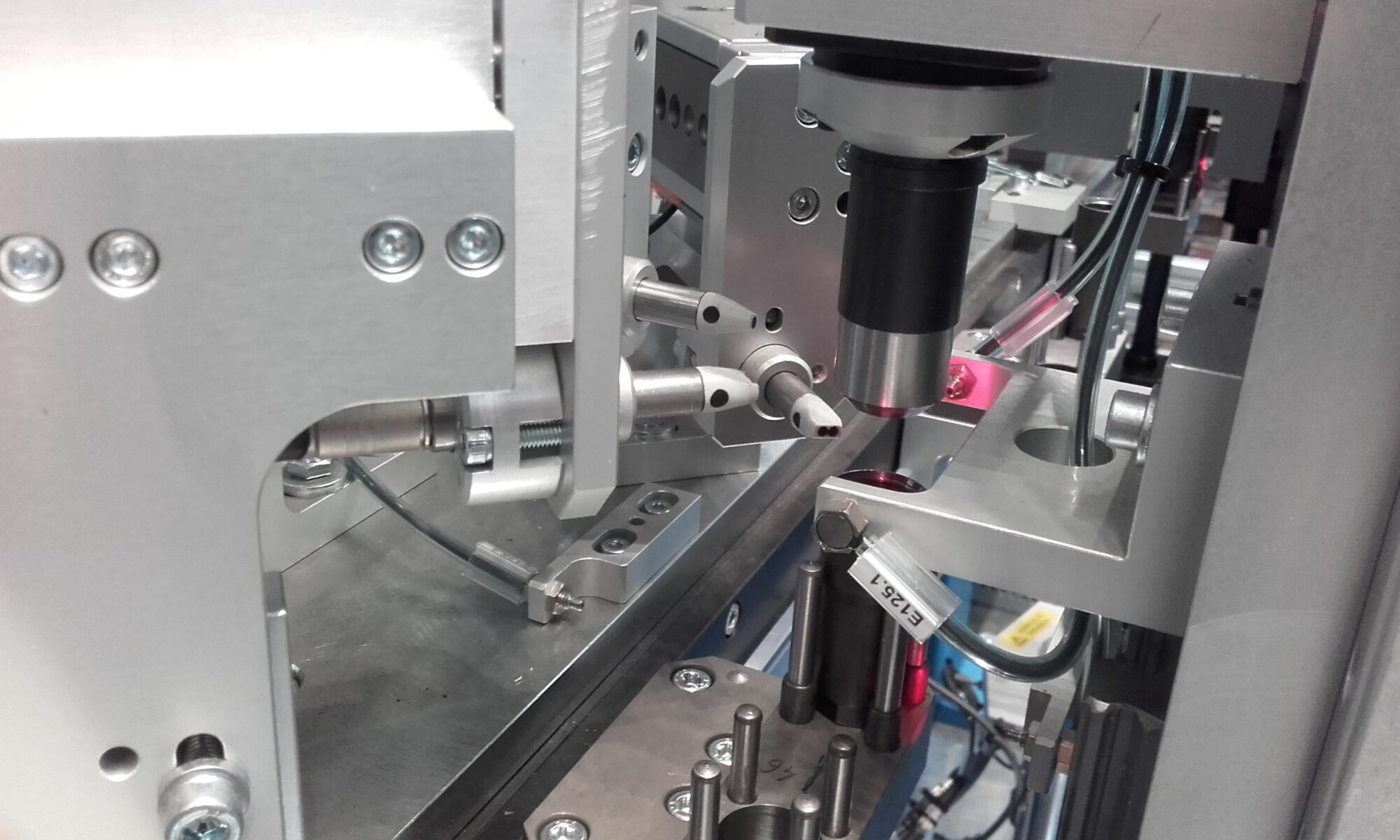

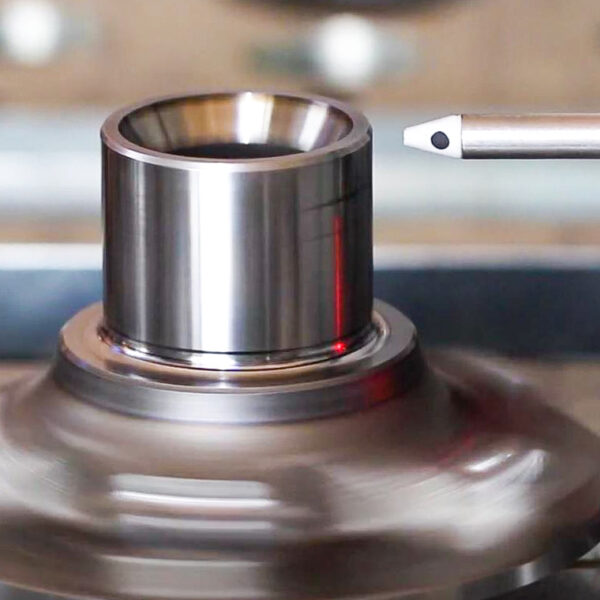

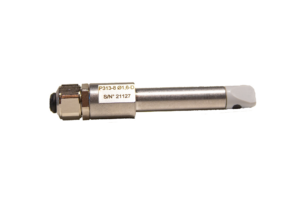

Pencil Probes: Dedicated to detect defects on rotating parts, cracks and point defects, and faults on complex geometries. |  |

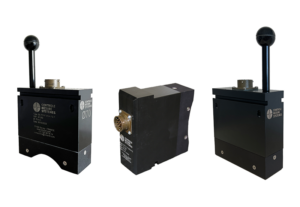

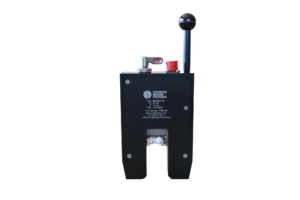

Sectorial Probes: Dedicated to monitoring the weld zone on welded rolled tubes, these probes detect defects in the weld zone. |  |

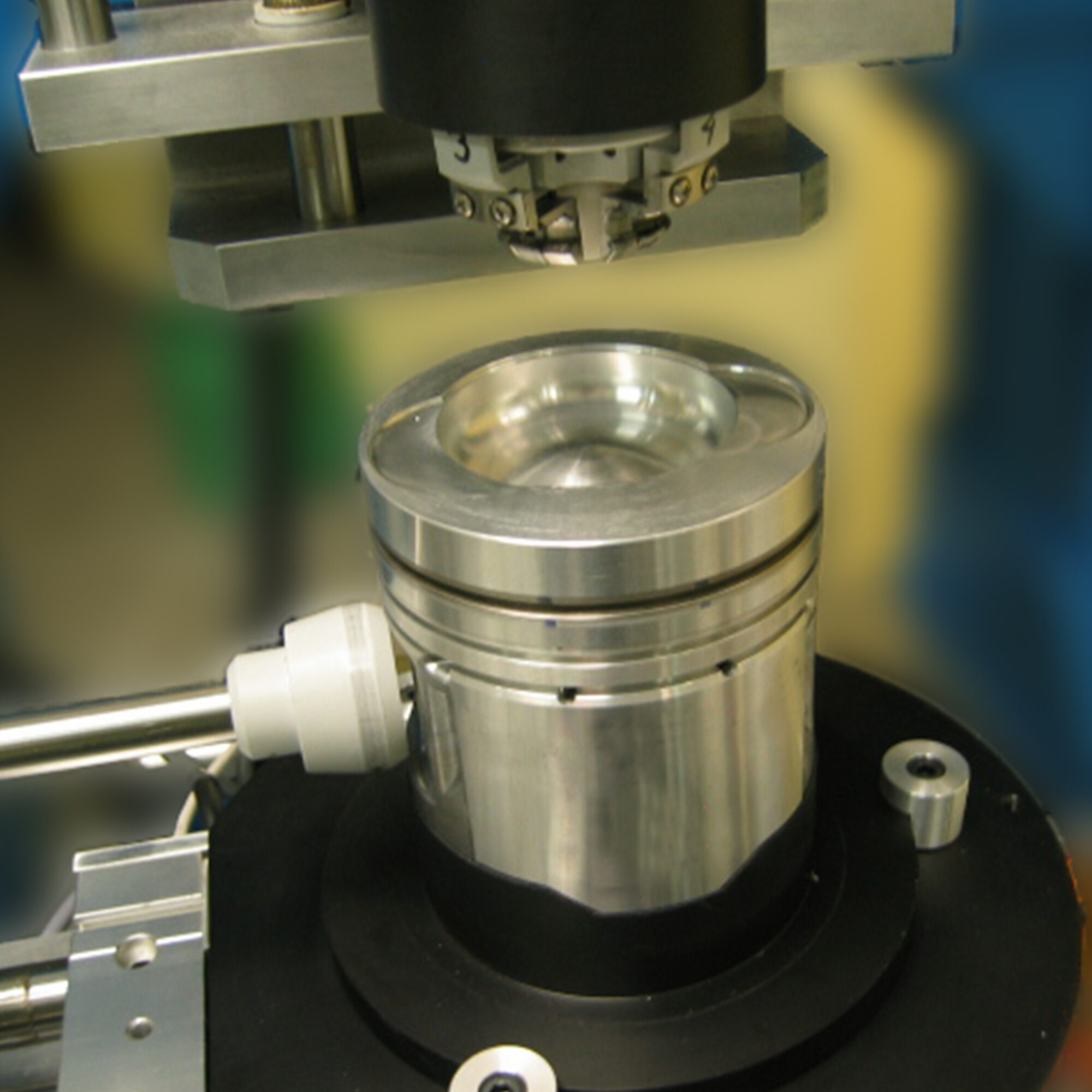

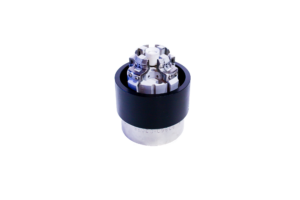

Rotating Probes: Dedicated for inspecting tube ends, pistons, bores, threads, taps, rail inspection, etc. |  |

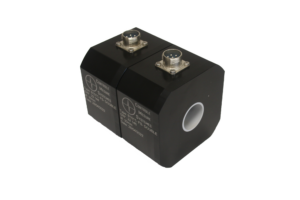

Material Sorting Probes: Dedicated for material sorting, coating thickness control, heat treatment or hardness control, and control of the presence of local HF treatment. |  |

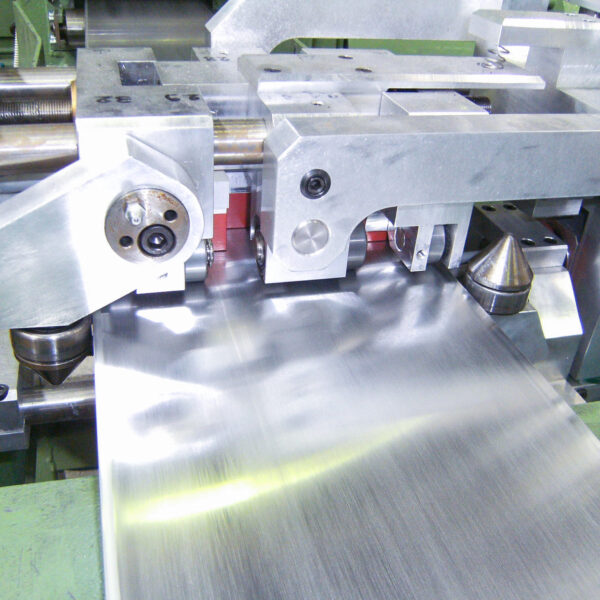

Surface Probes : Dedicated for top and bottom surfaces inspection of continuous strip. |  |
Conductivity Measurement Probes: Dedicated for point conductivity measurement |  |
Rail Inspection Probes: Dedicated to rail to be monitored directly on the production line or in operation (i.e. on the track) using an on-board system. |  |
All our software is designed and developed in-house by our team of electronics engineers. They are fully customizable and adaptable to your needs.
Zet@Setting: Zet@Setting software is specially designed for defects detection. |  |
Zet@Setting Material Sorting: Zet@Setting Material Sorting software is specially designed for material sorting and hardness applications. |  |
Production: Production software centralizes and collects information from Eddy Current equipment to create comprehensive inspection reports. |  |
Recordviewer: Recordviewer lets you acquire and replay all the Eddy Current measurement points of an application in real time. |  |
Mapping: The software centralizes and collects information from the NDT equipment and produces a color map of the inspected product. |  |
Strip Production: This supervision software is used in multi-sensor applications covering a wide control band (strips, ferrules, etc.). |  |
Mechanical testing bench: For each application, a test bench may be required to support the various systems and thus ensure inspection under the best possible conditions. |  |
Centering systems: They enable precise product guidance. |  |
Other accessories: Discover the many other accessories CMS has to offer. |  |
| Engineering: Our team is made up of complementary technical profiles: a mechanical design office, an electronics design office and a team of specialized technicians who design and build all our turnkey NDT systems. |
Installation: Our technical team installs, checks and calibrates instruments and systems on site or at our premises, as requested by our customers. A calibration certificate is then issued. |
Training: We can offer you high-quality training to help you become more efficient and effective in using our control systems. |
Rental: We offer Non-Destructive Testing equipment for rental. This option can be very effective and economical when inspecting small production runs or during a period of equipment breakdown. |
Support: On-site or remote support, in real time, enables our engineers to offer our customers fast, high-quality technical service. |
After-sales service: CMS instruments, systems, probes and sensors can be repaired after expert appraisal, costing and agreement. Please contact us for further information. |

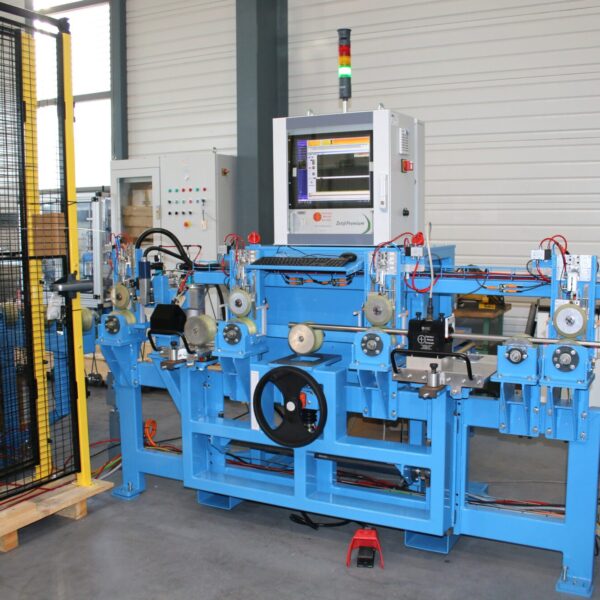

Some examples of our Eddy Current applications installed at our customers’ sites directly on the production line or on off-line testing station:

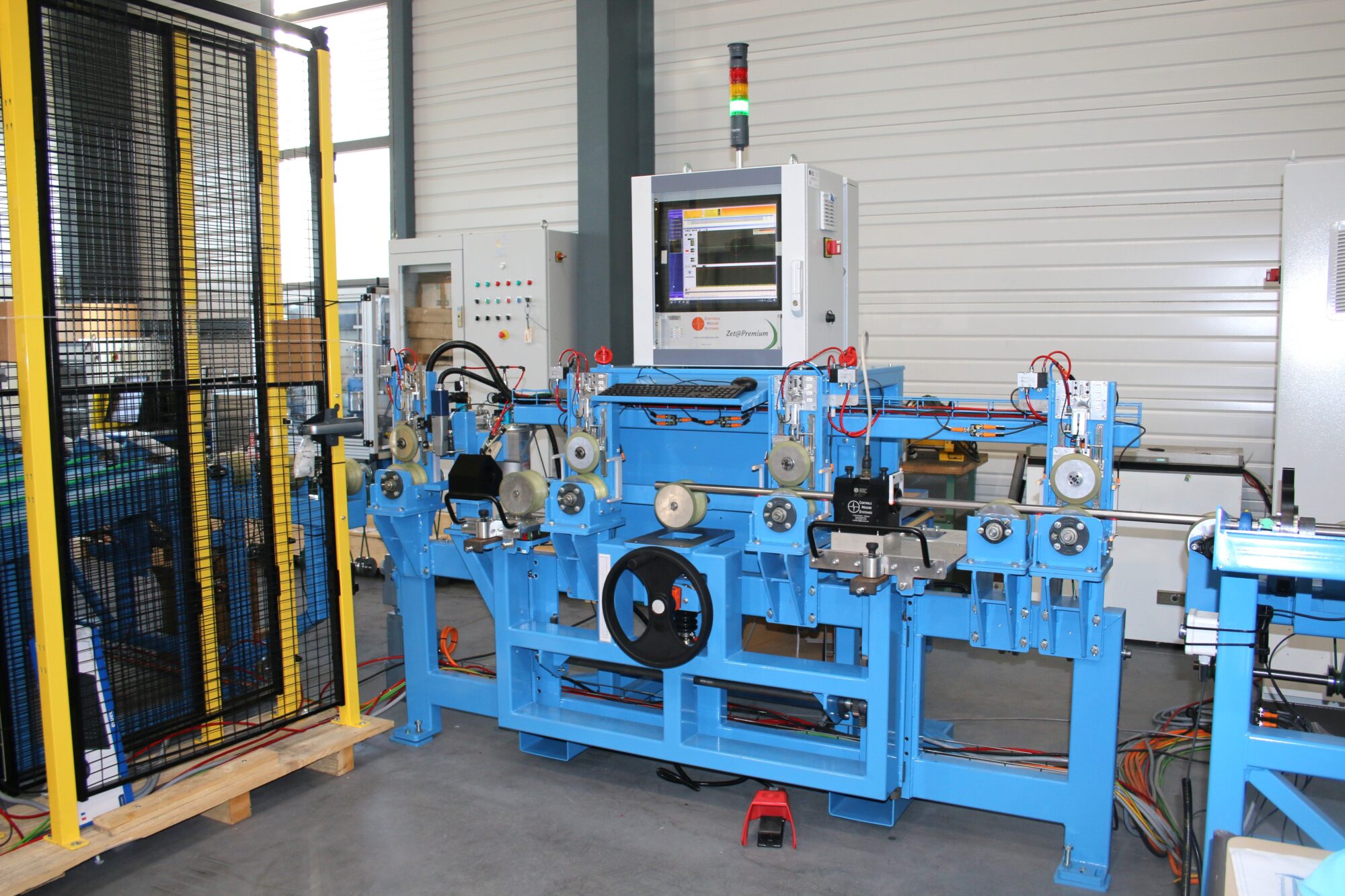

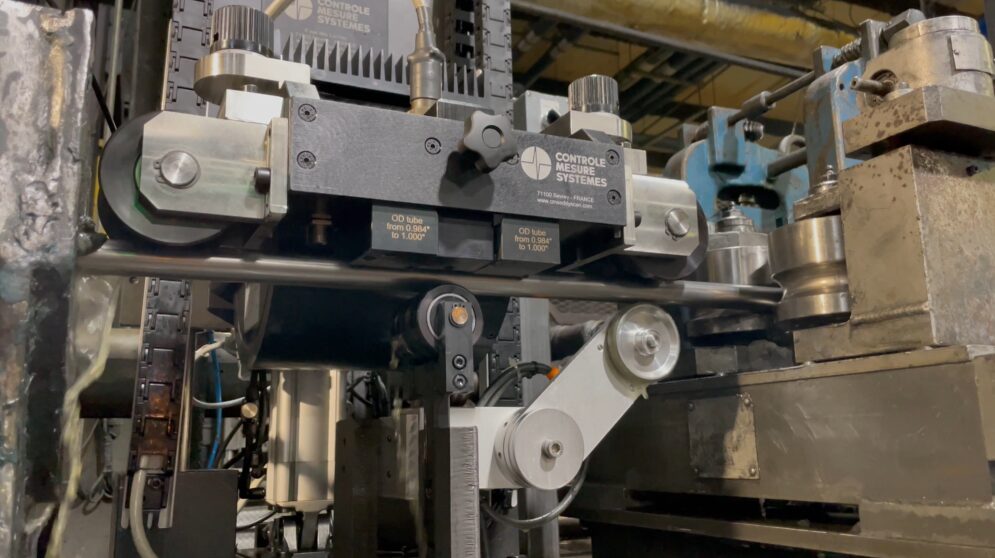

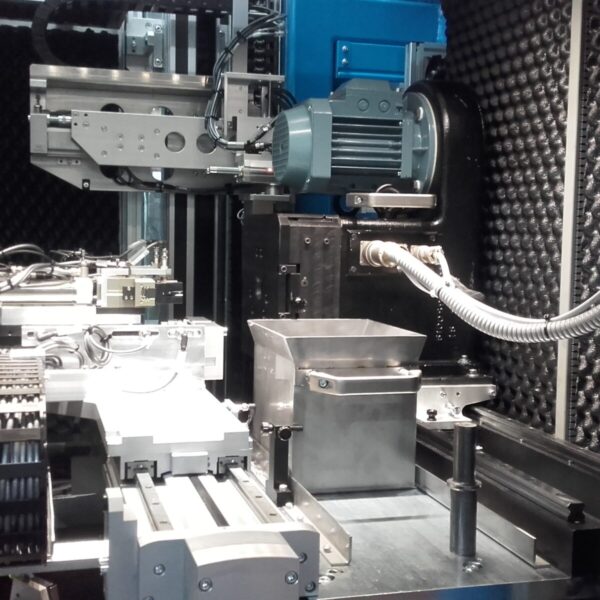

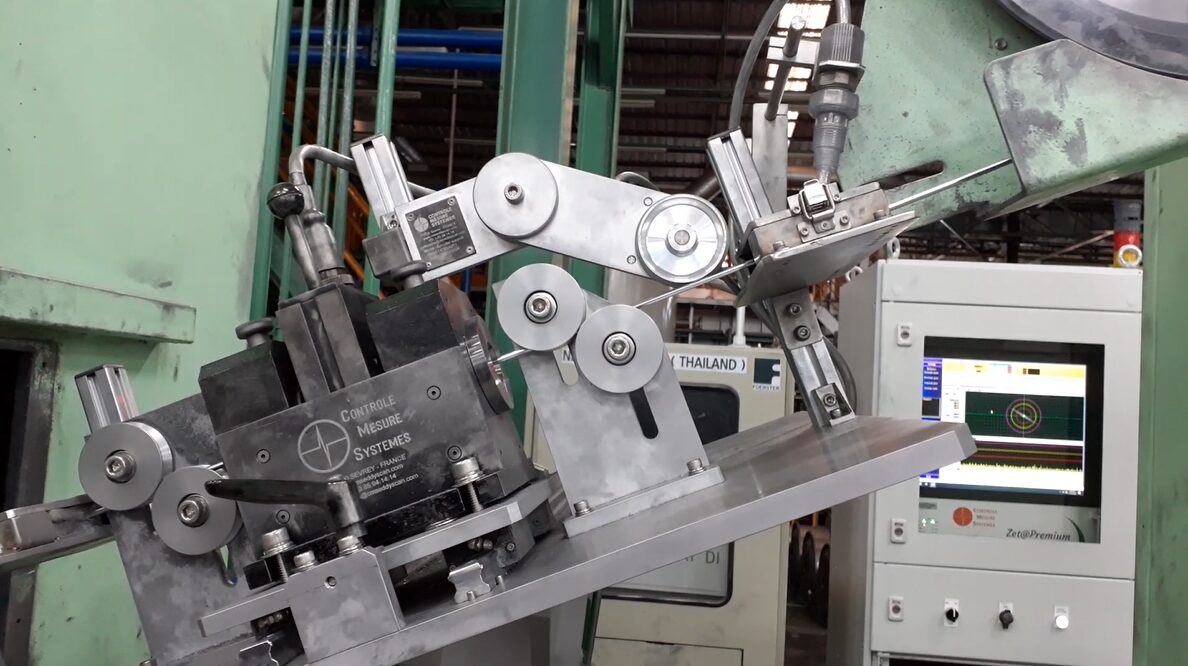

RotoETscan rotating head for longitudinal defects detection on long products

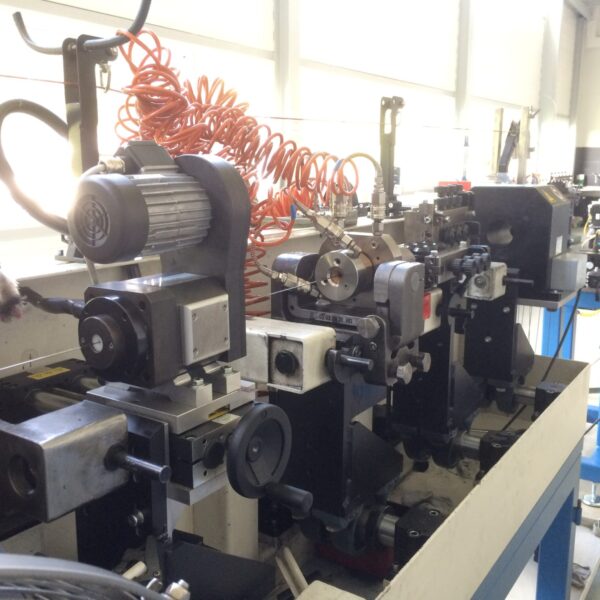

RotoETscan rotating head for longitudinal defects detection on circular parts

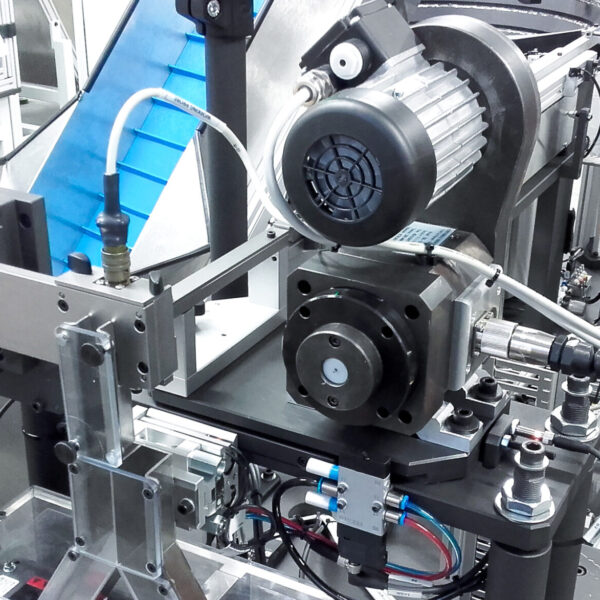

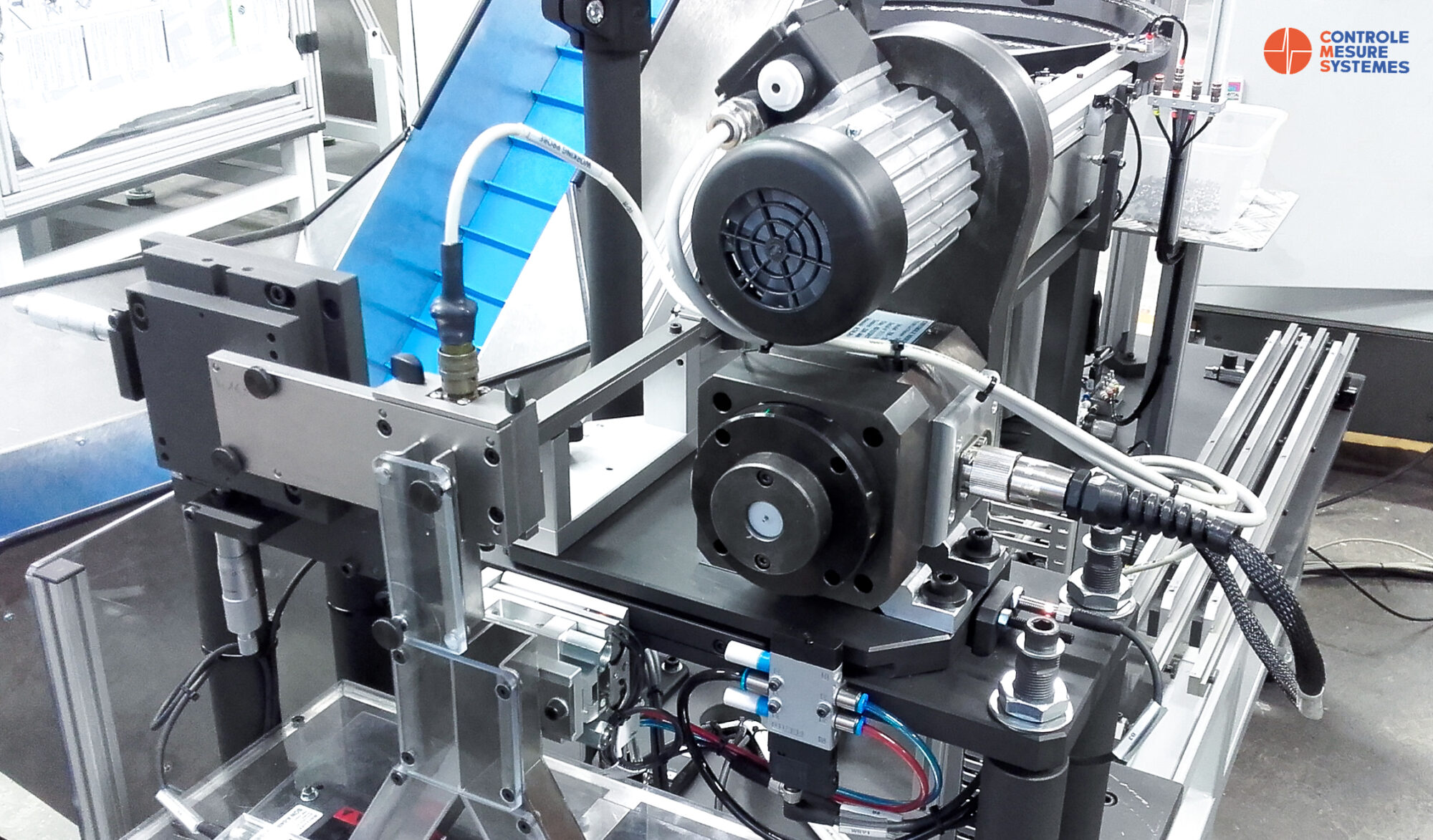

TRVC rotating head for longitudinal defects detection on small diameter products (longitudinal products and revolution parts)

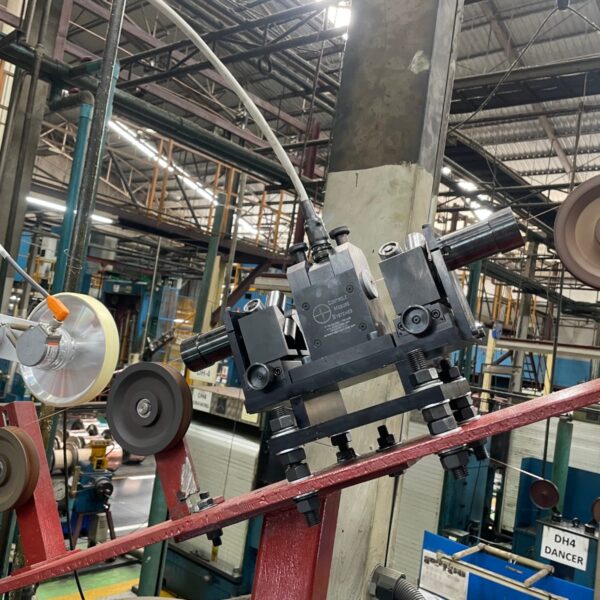

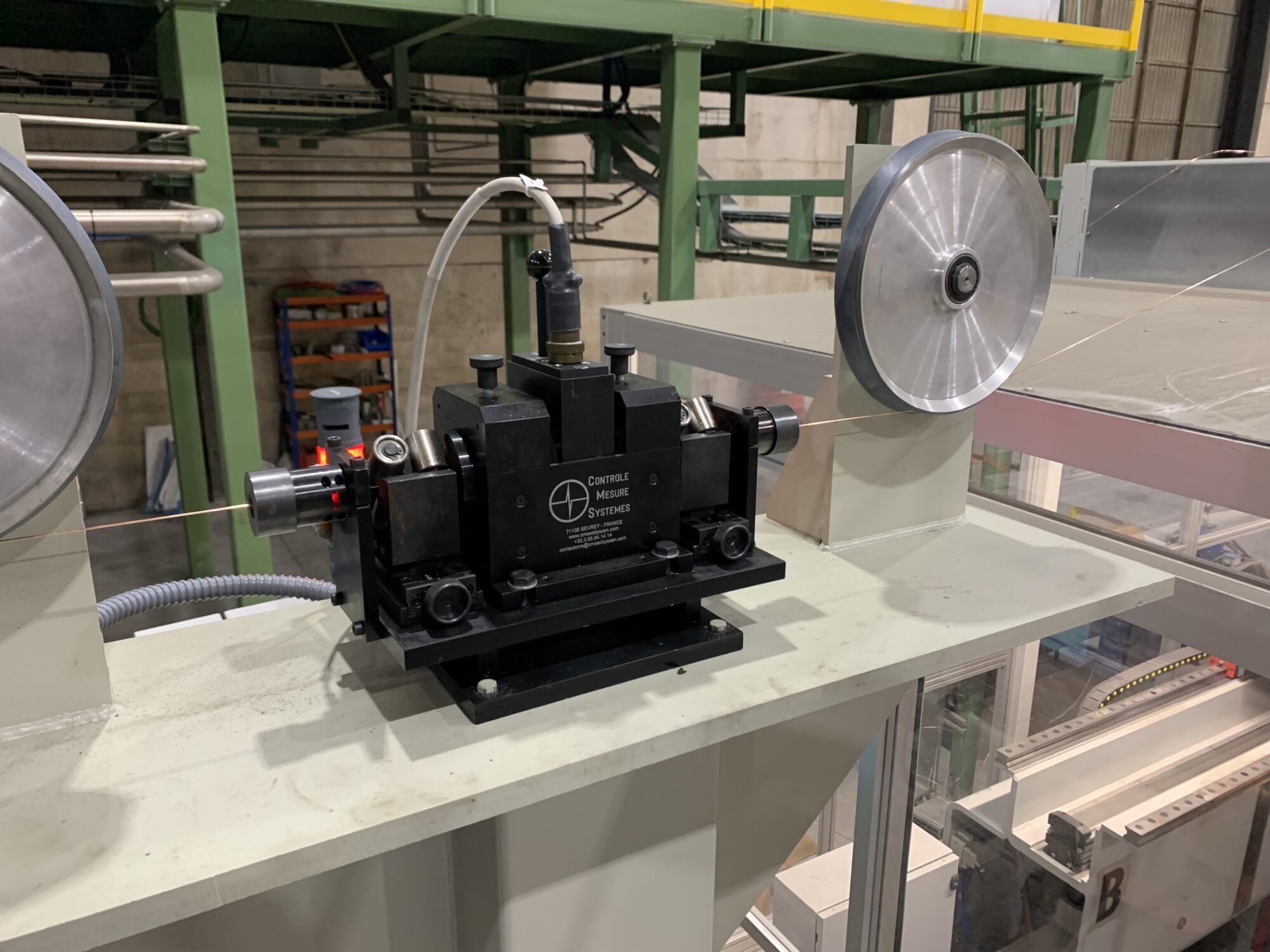

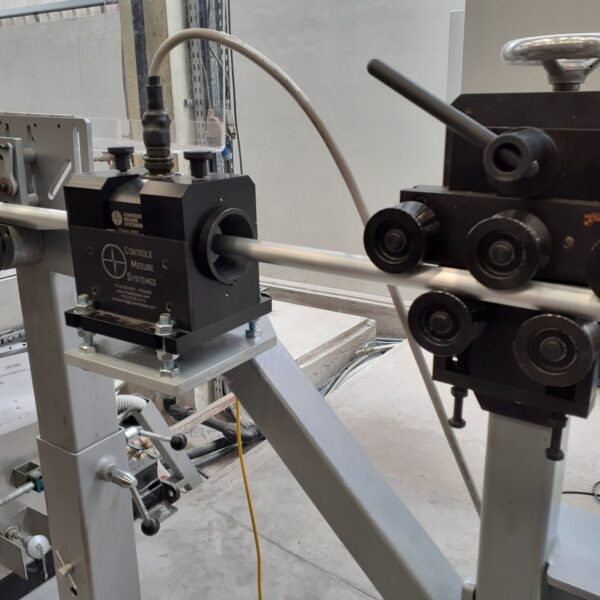

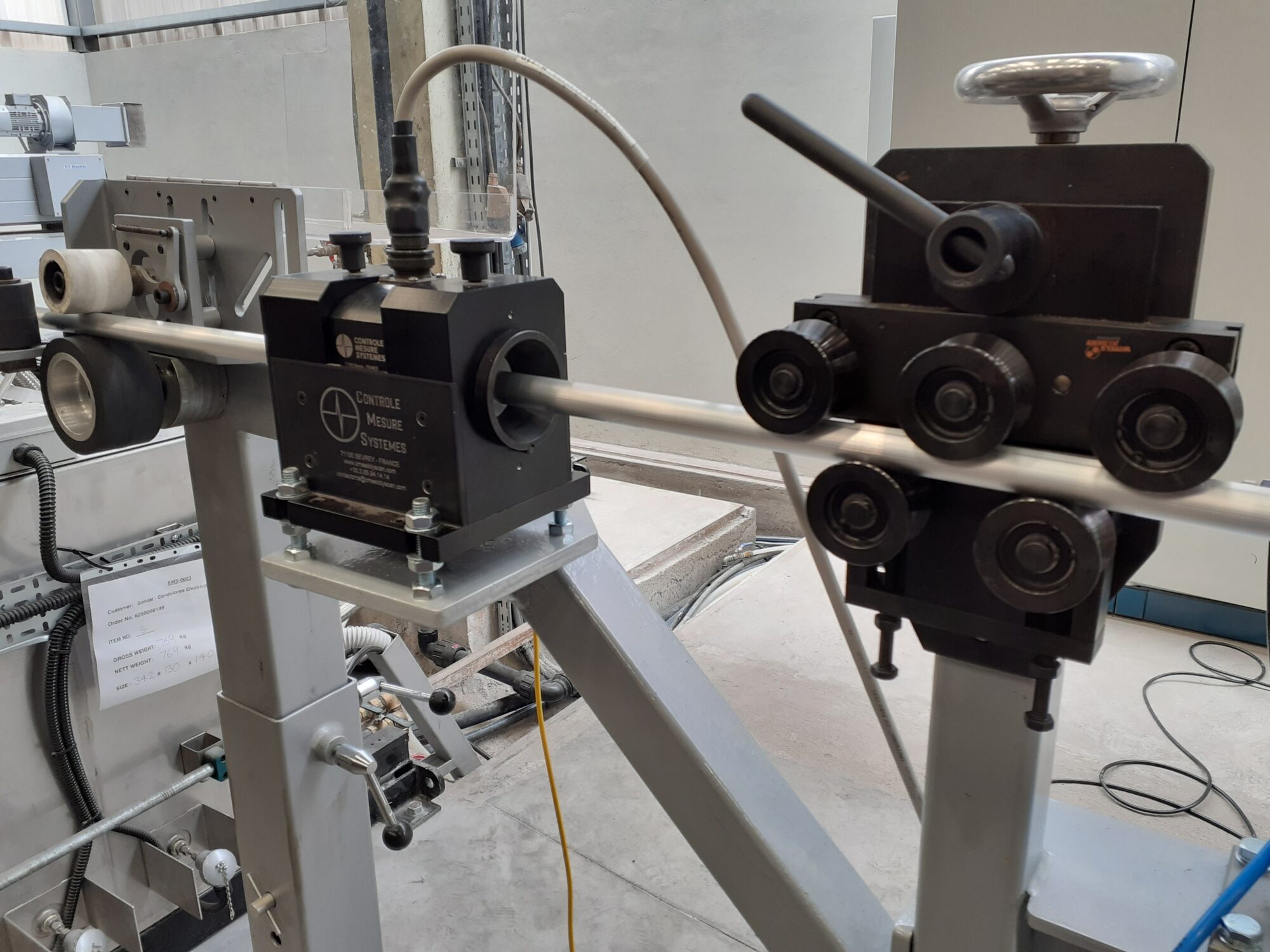

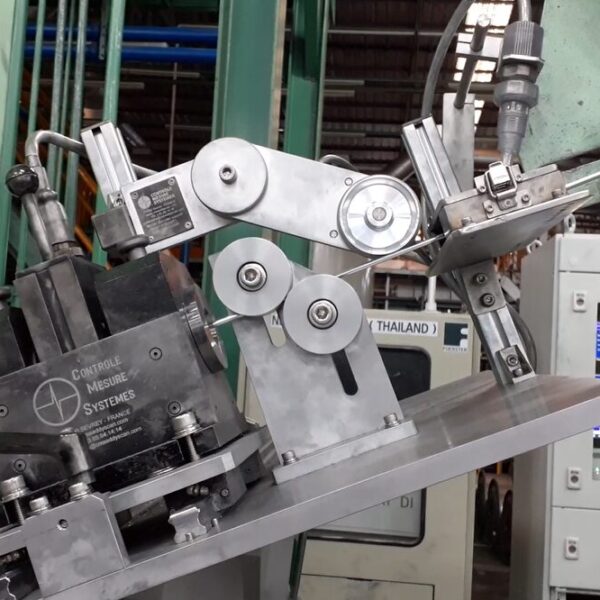

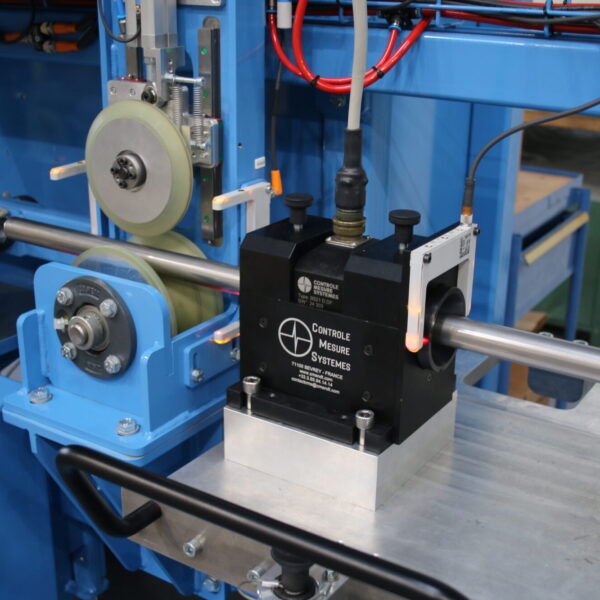

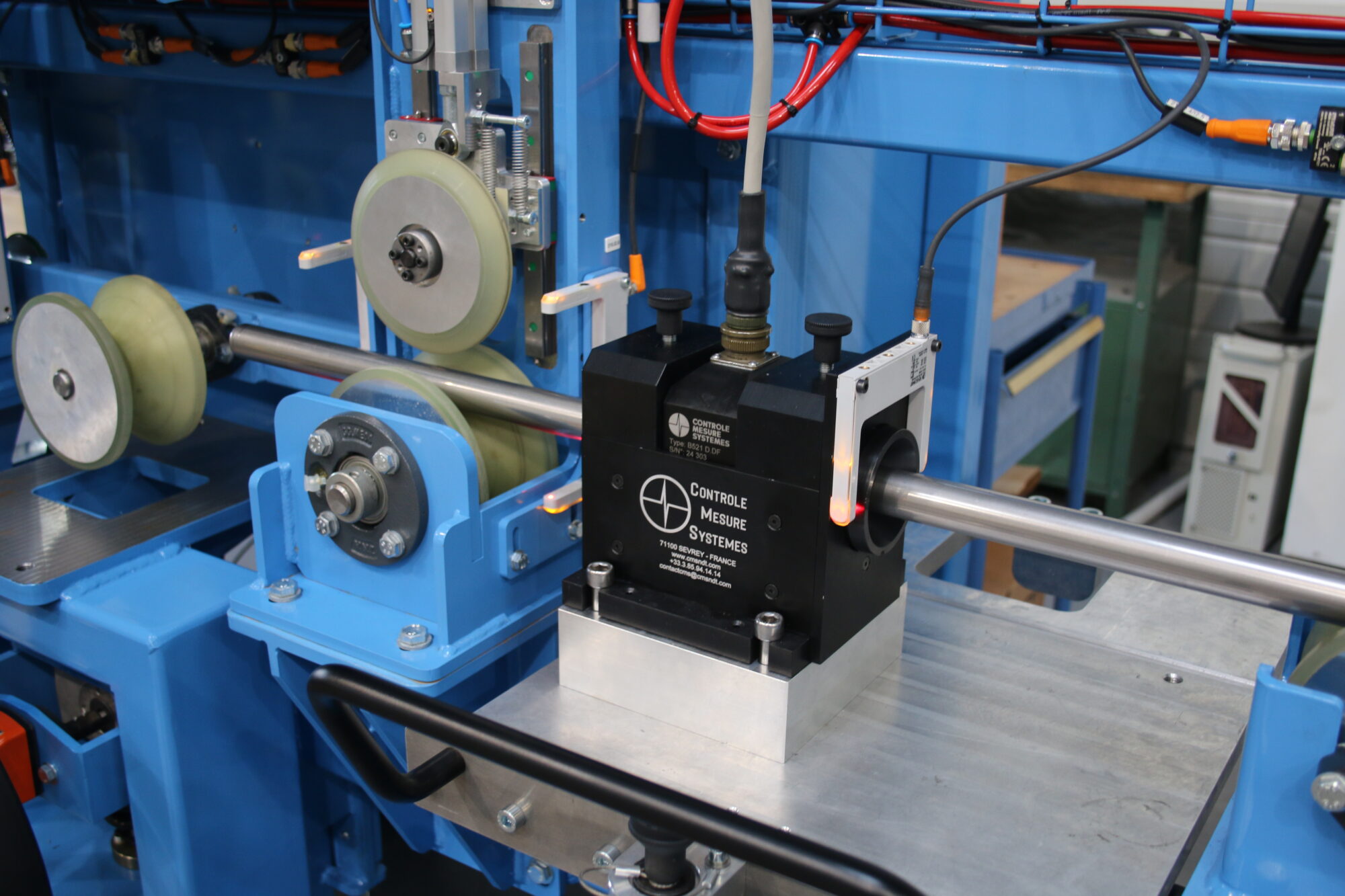

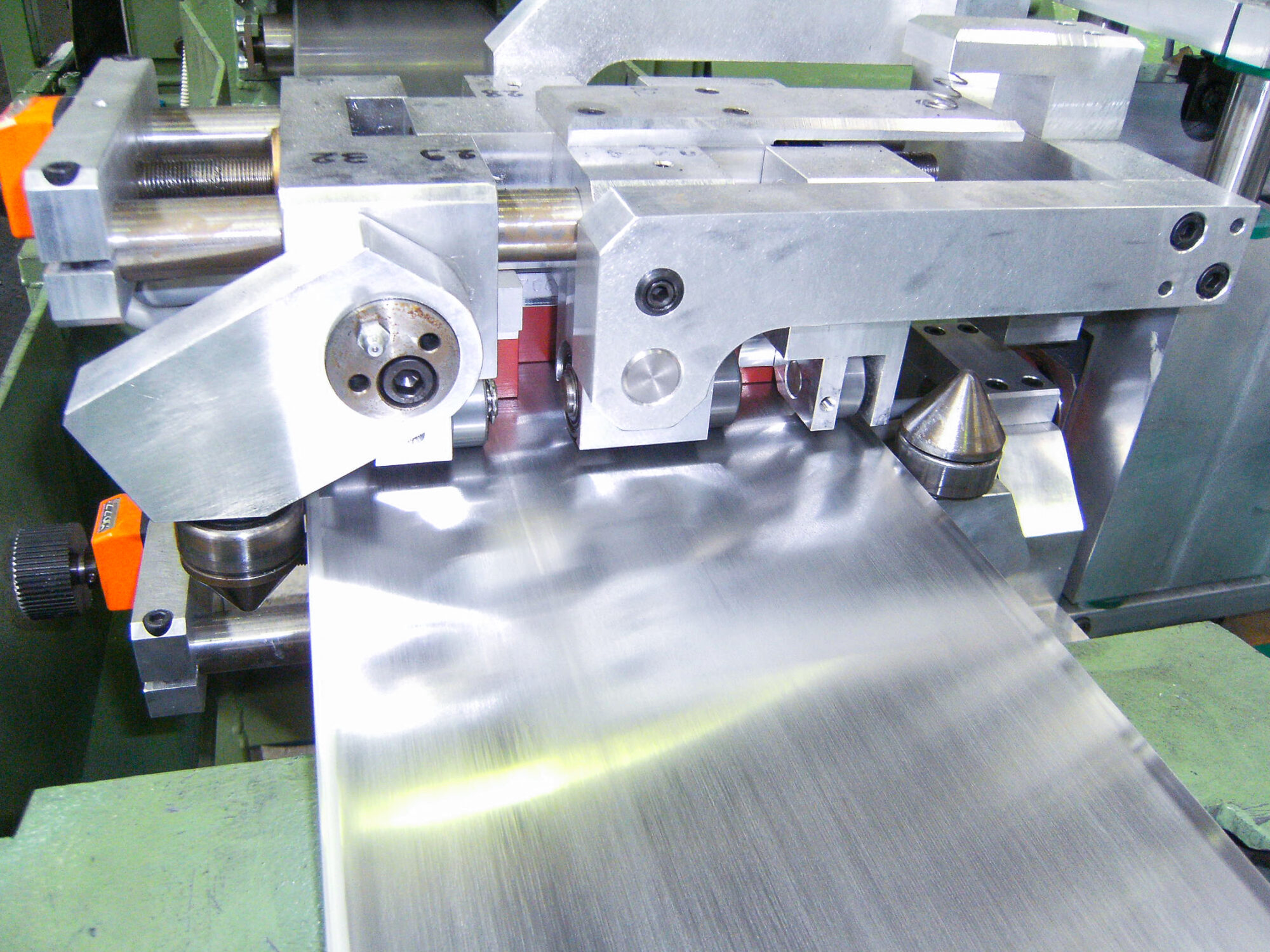

Encircling coils with coil holder for short and transverse defects detection on non-magnetic products

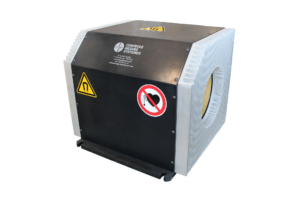

Magnetizing unit for short and transverse defects on ferromagnetic products
Demagnetizing unit to remove the residual magnetic field from a product

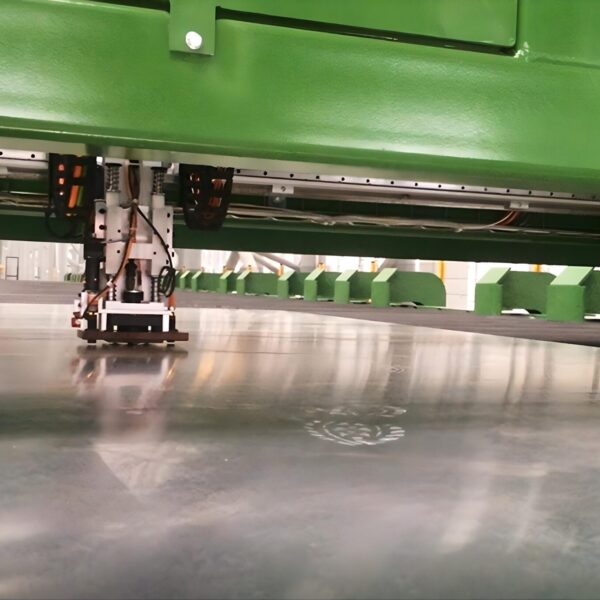

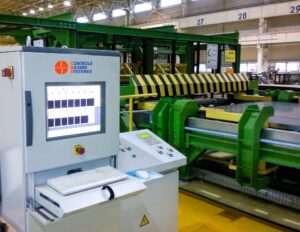

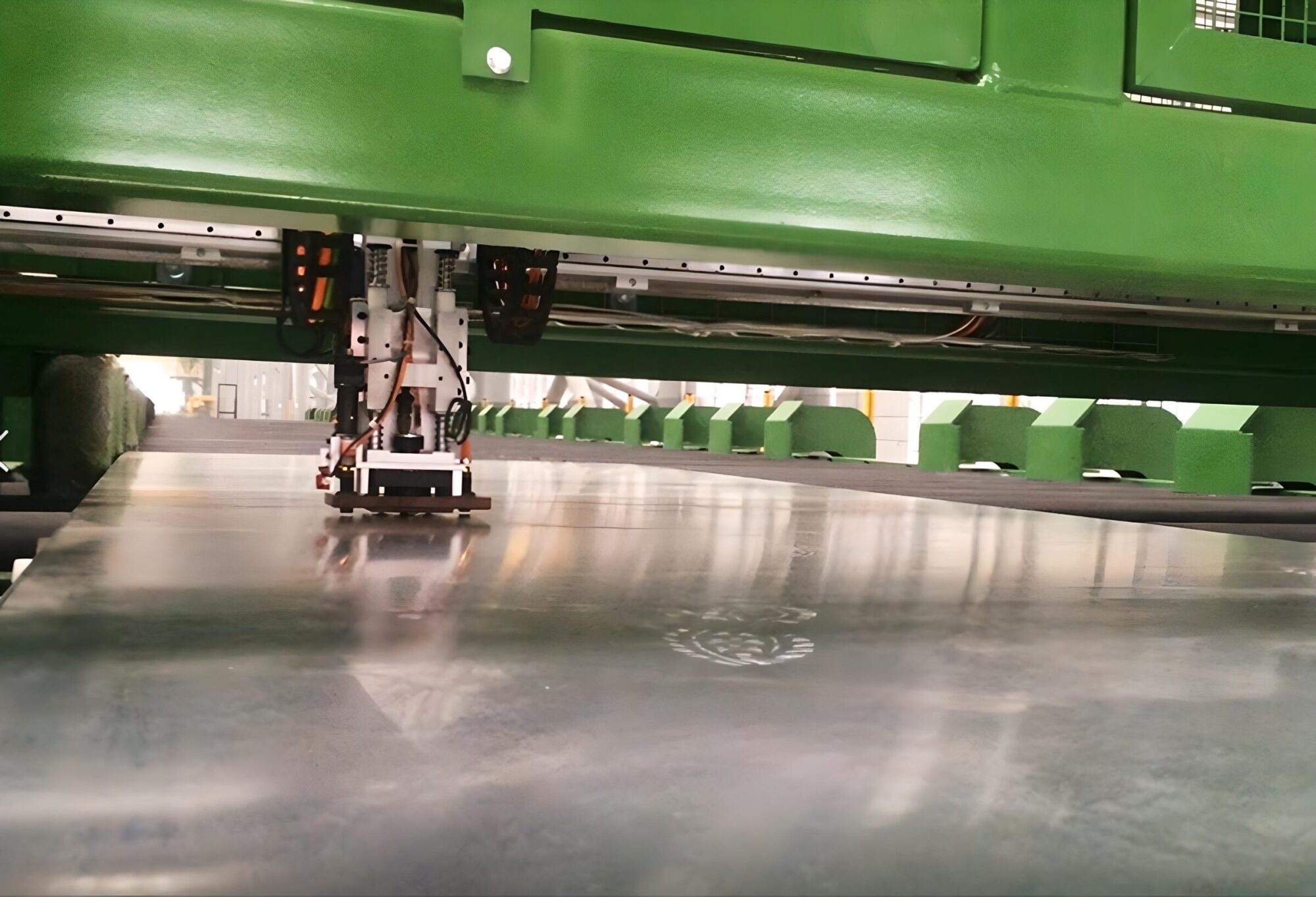

Complete installation with specific probes for conductivity measurement

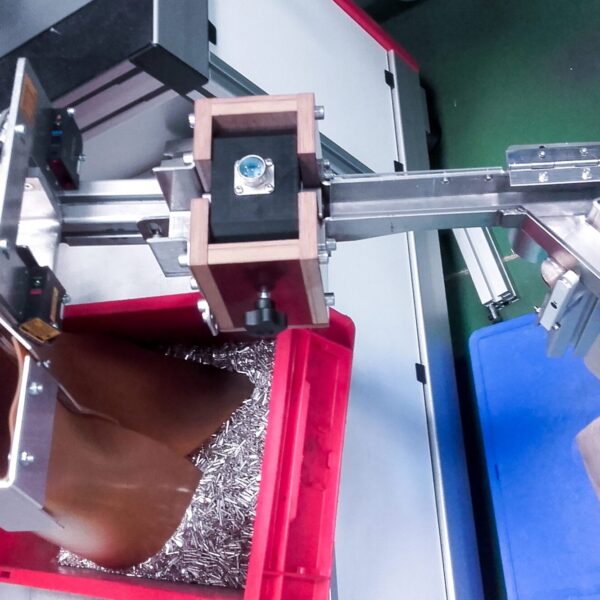

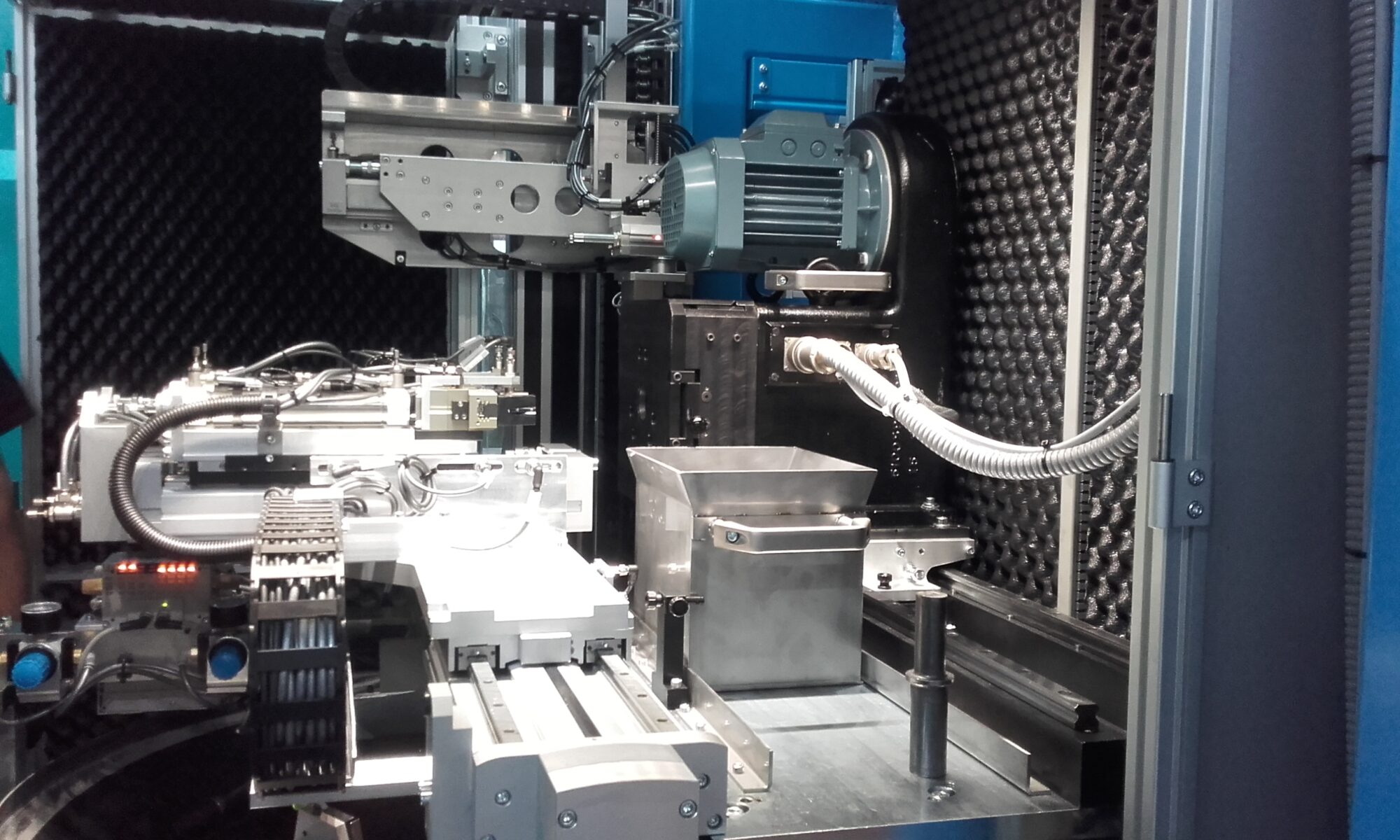

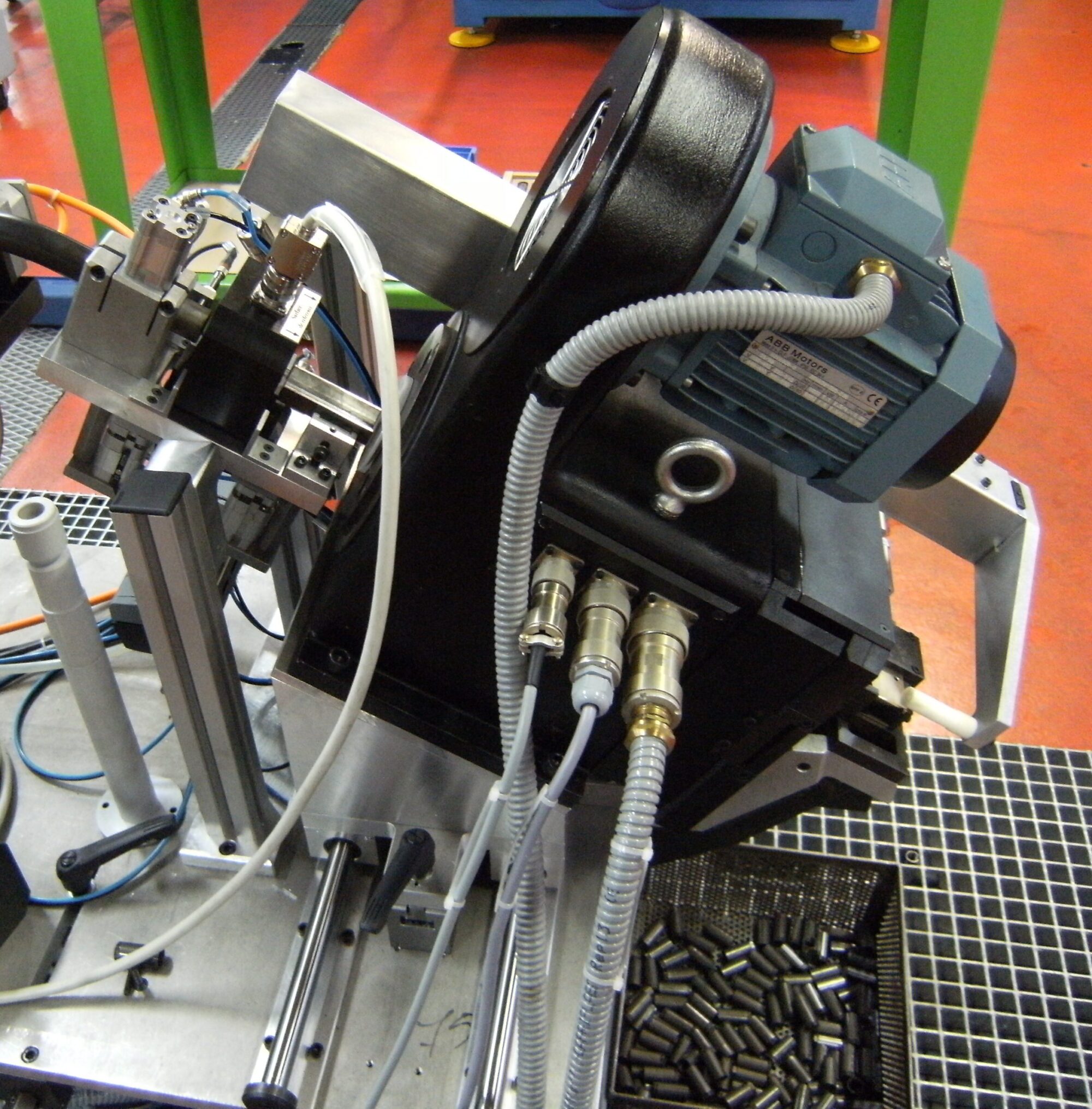

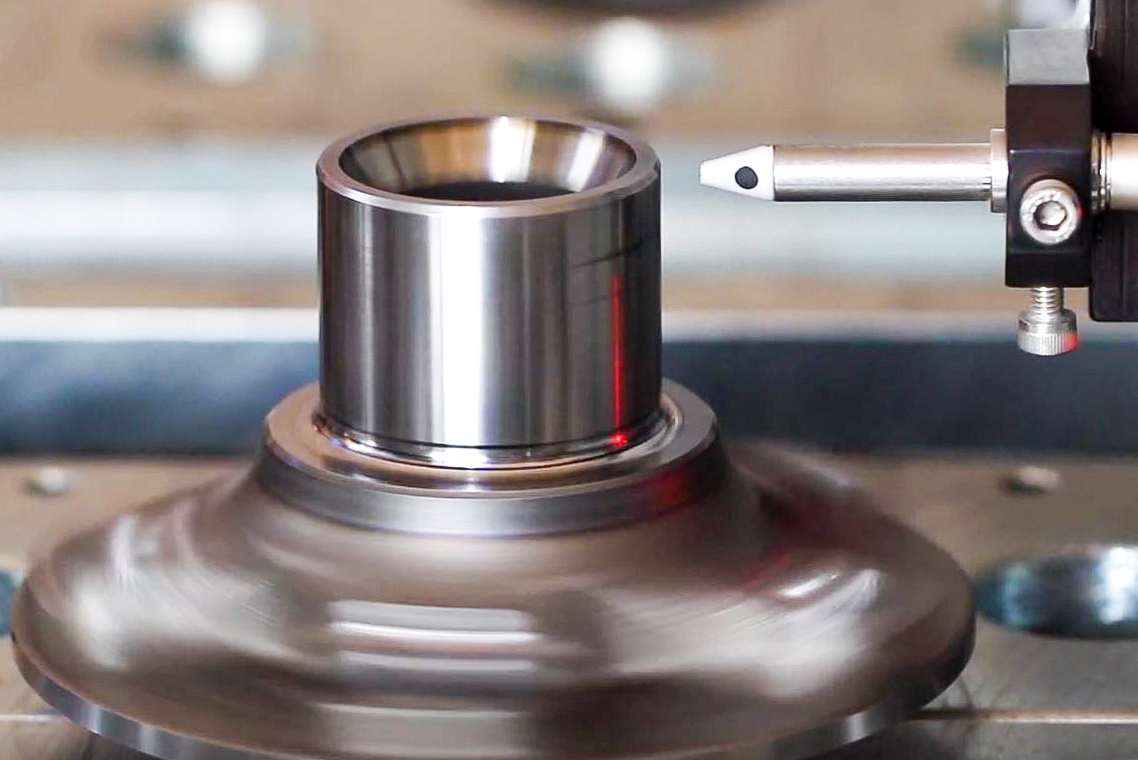

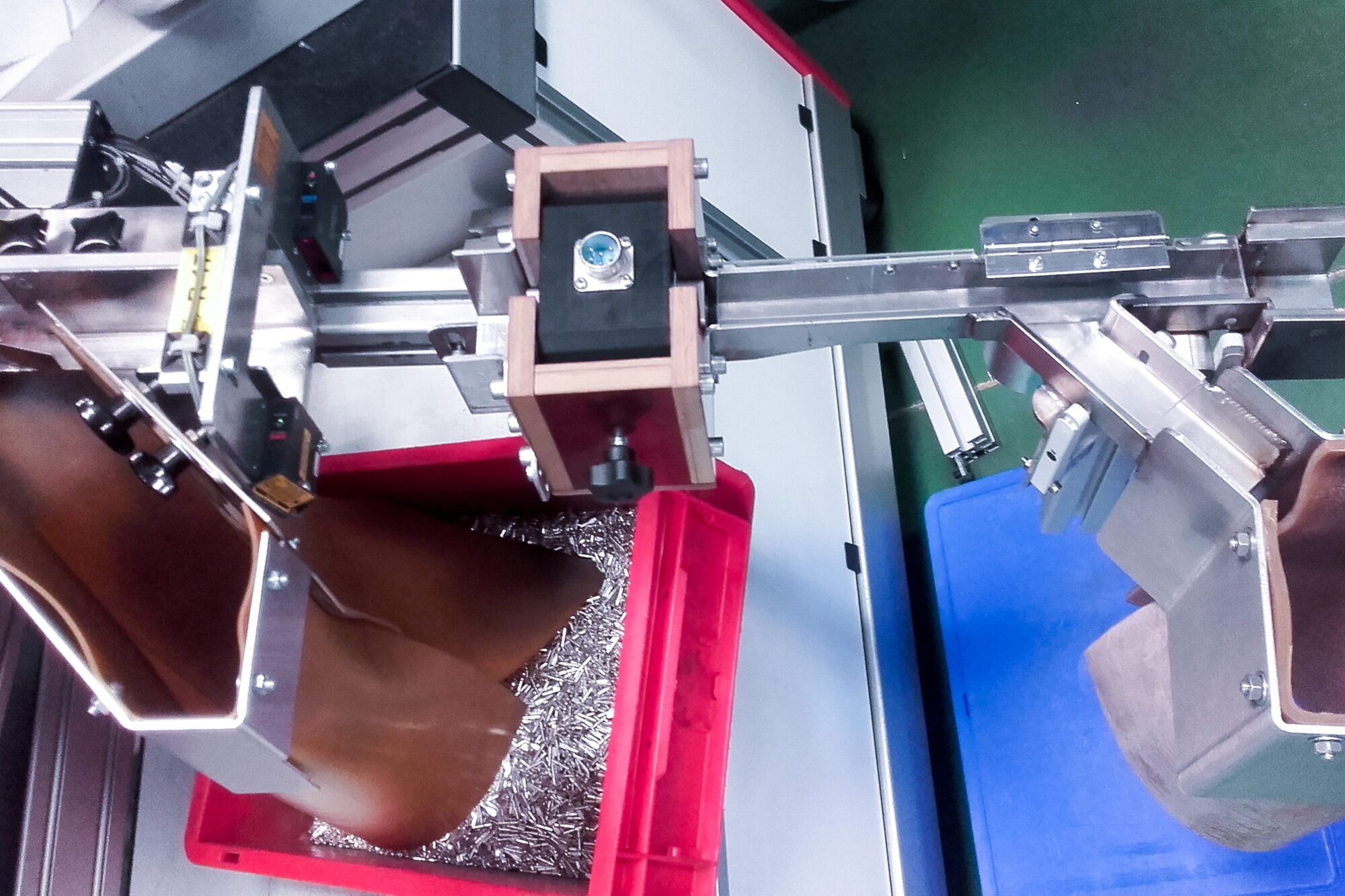

Specific probe for material sorting including heat treatment, hardness and grade sorting, of small parts

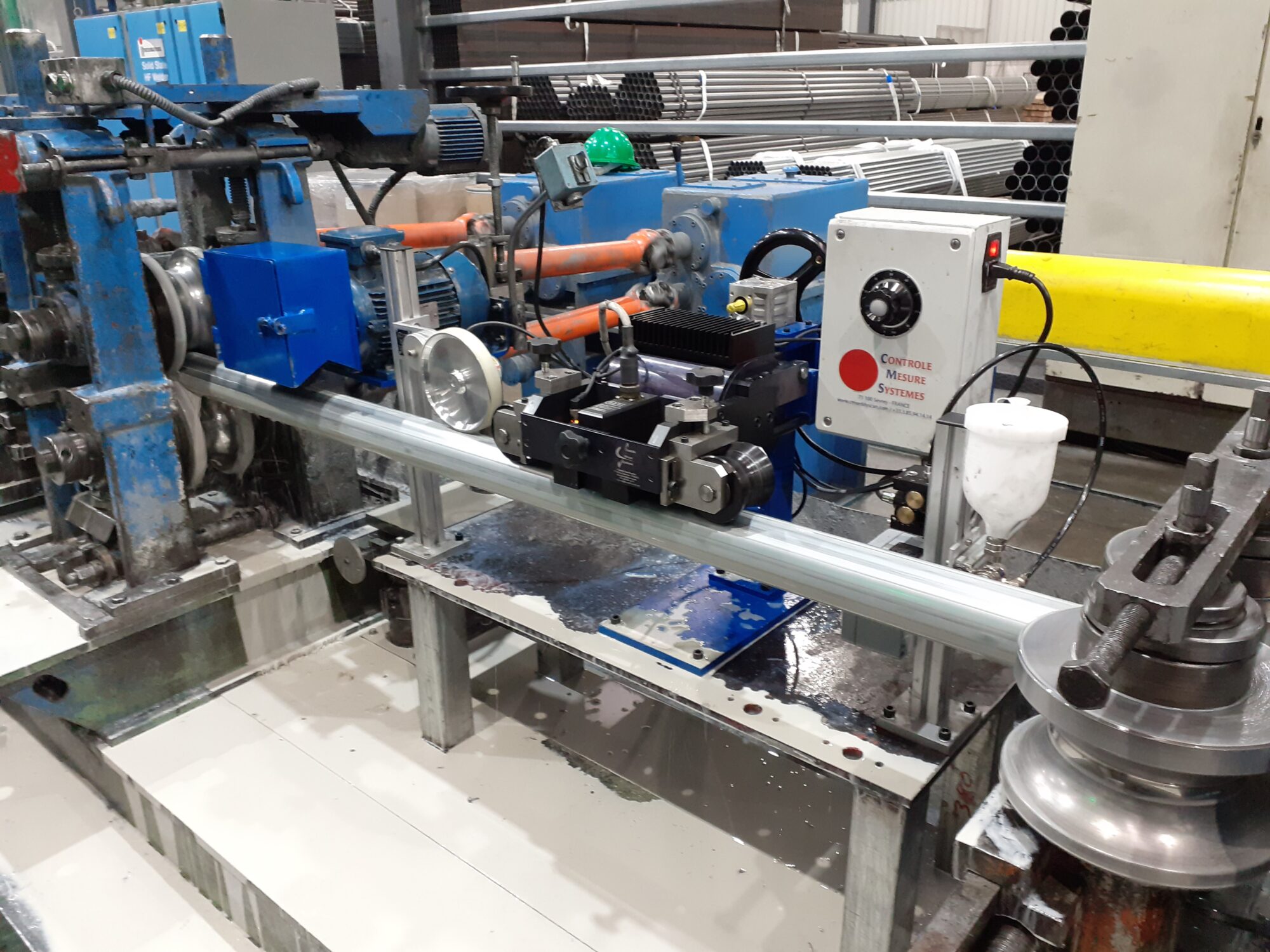

Sectorial Magnetizing Unit for small flaws (holes and cracks) or to identify discontinuities on ERW welded tubes
Specific encircling coil for hot wire rod inspection

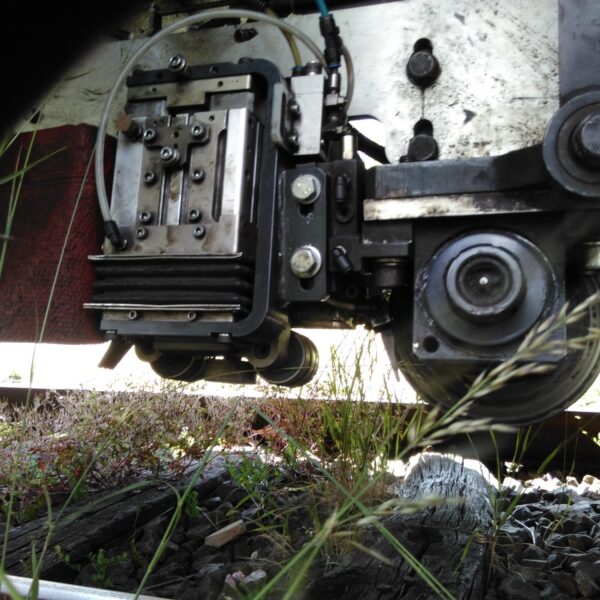

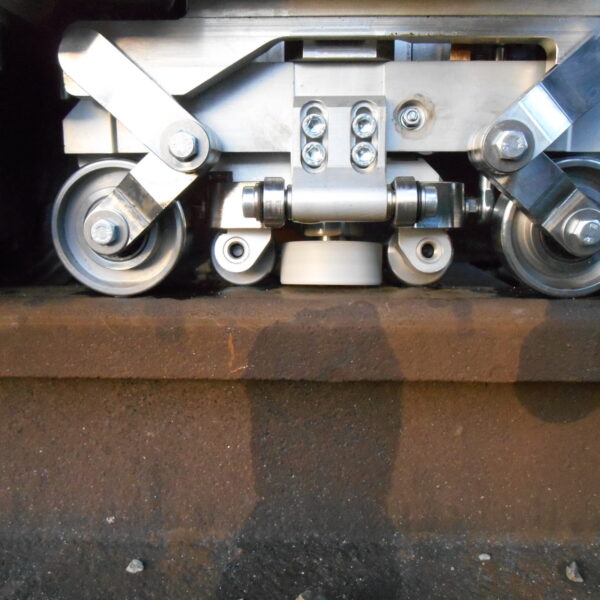

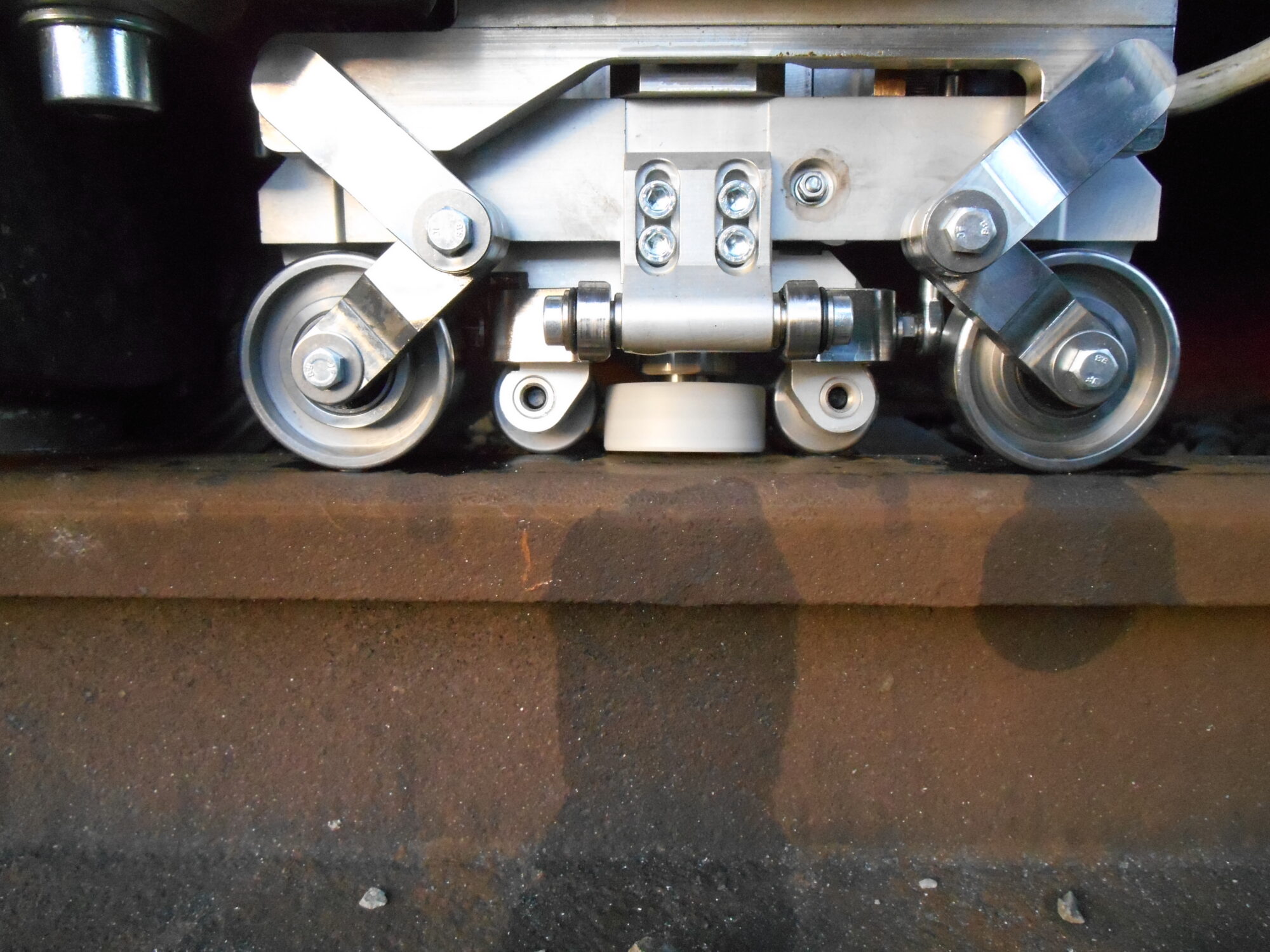

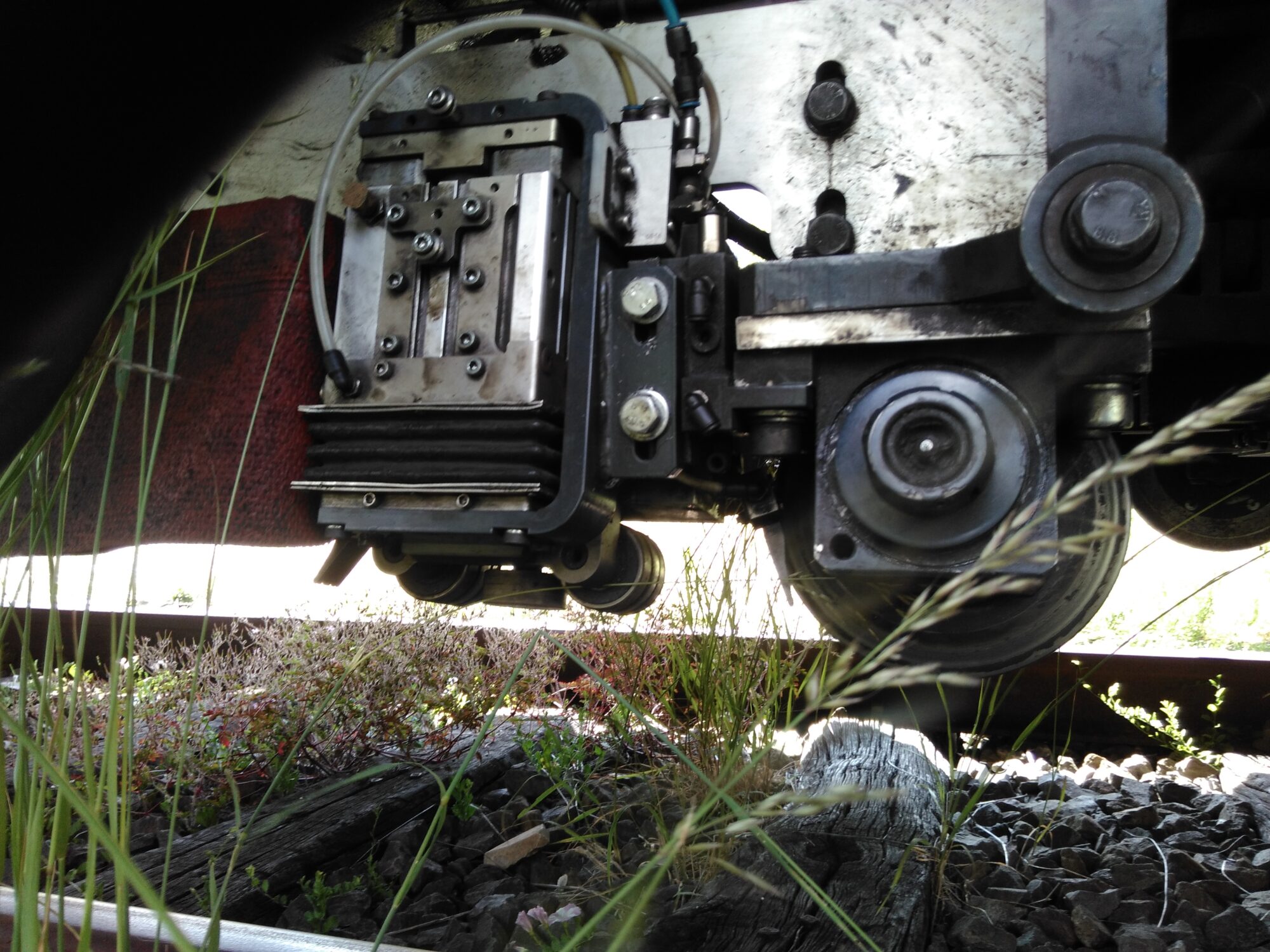

Rotating probes for rails inspection
Our applications allow the inspection of many products such as:
Since 1988, CMS designs, manufactures and installs turnkey Eddy Current systems
Start with an Eddy Current product to build a 100% customized solution specific to your products
Production and design of all our Eddy Current probes, sensors and software on our own premises
Highly responsive in providing assistance and information to our customers
A wide range of complementary Eddy Current systems/accessories that can be combined to provide inspection of ferrous and non-ferrous products
Eddy Current test results are displayed in real time, and traceability is ensured by our production software, which creates complete inspection reports
Inspection speed optimized to production constraints
INNOVATION: Ability to combine Eddy Current and Ultrasonic inspection methods for 100% product inspection
