BAR in industry

Metal bars play a fundamental role in many industrial sectors due to their versatility, their structural characteristics and their geometric format. In the automotive industry, they are used in the manufacturing of mechanical parts, engine components, load-bearing structures, transmission systems, and suspension elements due to their high strength. In the aerospace industry, bars are used to produce aerodynamic and support components where weight and inertia are critical concerns. Additionally, in the medical field, bars contribute to the creation of precise surgical instruments and implantable devices.

Manufactured from various materials such as steel, aluminum, titanium, or specific alloys, they must meet strict quality and strength requirements to comply with the demands of various industries.

unrivalled ndt inspections by cms

Thanks to CMS systems developed with the latest cutting-edge technologies, it is possible to ensure precise and reliable inspection of all types of bars, whether ferromagnetic or non-magnetic, using Eddy Current and Ultrasonic technologies.

Installed on-line or off-line, our specially designed systems can detect a wide range of defects arising during the various manufacturing processes:

  • Surface/subsurface defects detection thanks to Eddy Current systems: Longitudinal and transverse cracks, scratches and scuffing, corrosion, pitting, lack of material (premature wear, irregularities)…
  • Internal/External defects detection thanks to Ultrasonic systems: porosities (air bubbles or gases trapped in the metal), inclusions (foreign particles or impurities), internal cracks (caused by mechanical or thermal stress), delaminations (separations between metal layers)…
  • Defects related to heat treatment: incorrect hardness, material heterogeneity, incorrect alloy classification…

CMS SYSTEMS FOR BAR inspection

RotoETscan Range

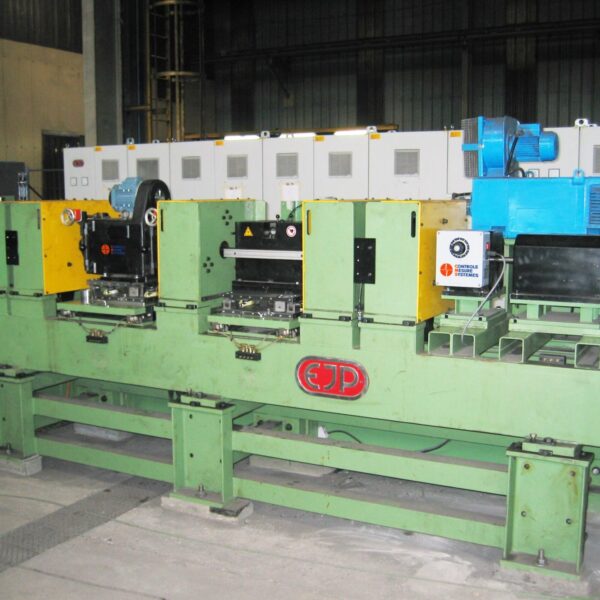

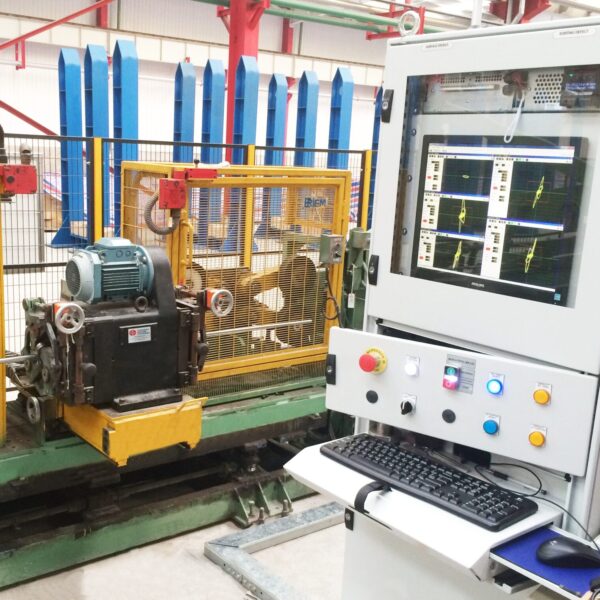

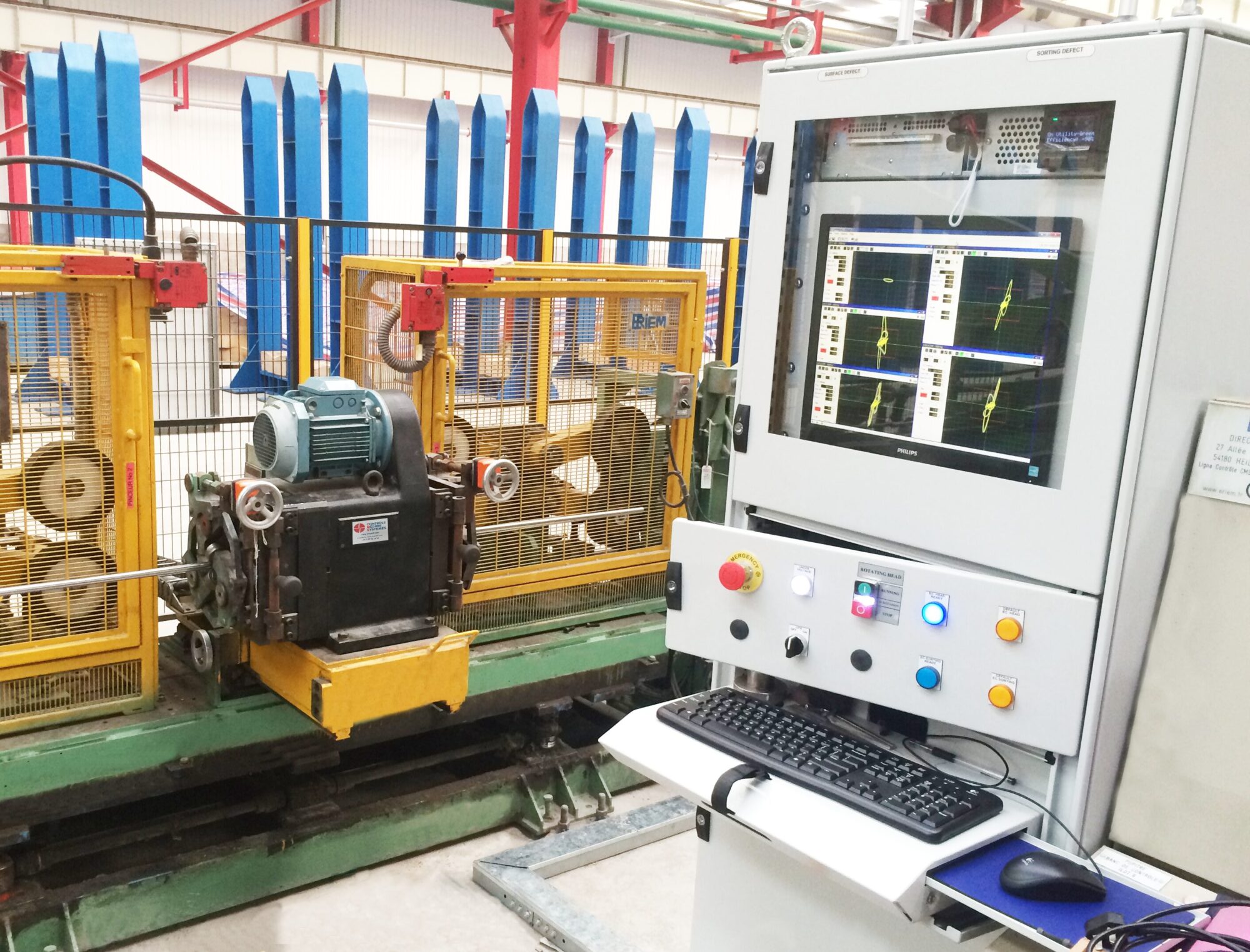

Eddy Current inspection using a rotating head to detect longitudinal defects on the surface/sub-surface

RotoUTscan Range

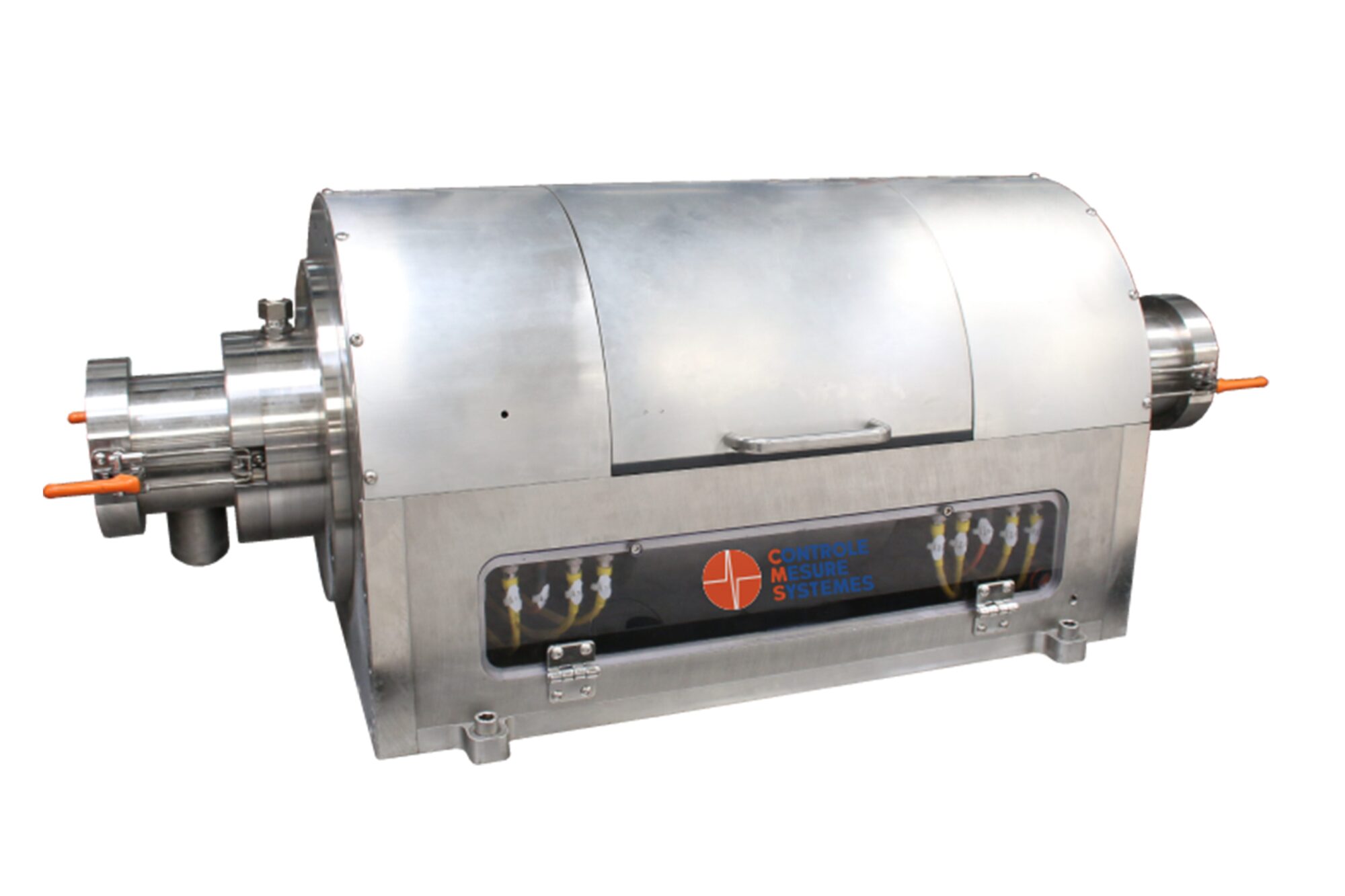

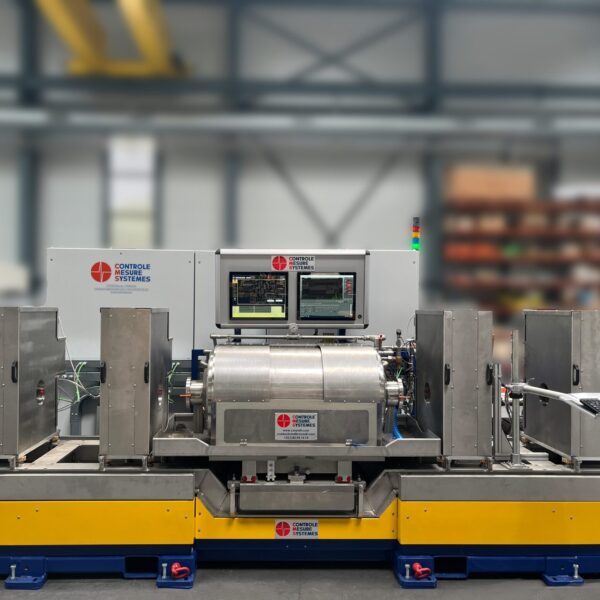

Ultrasonic inspection using a rotating head to detect external and internal longitudinal defects of any orientation

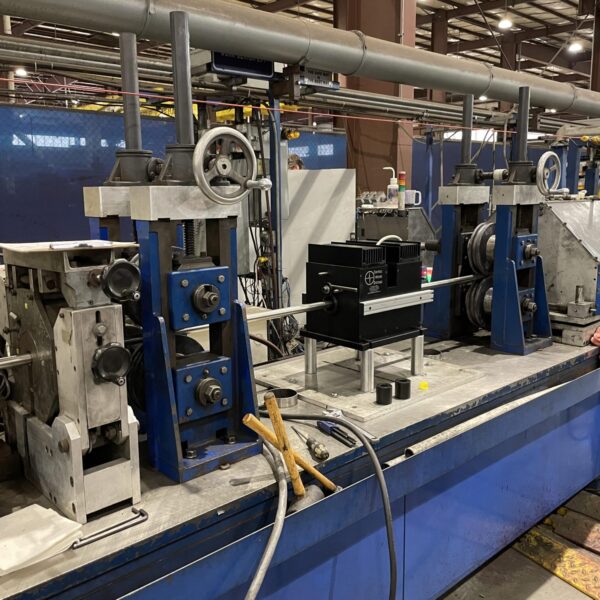

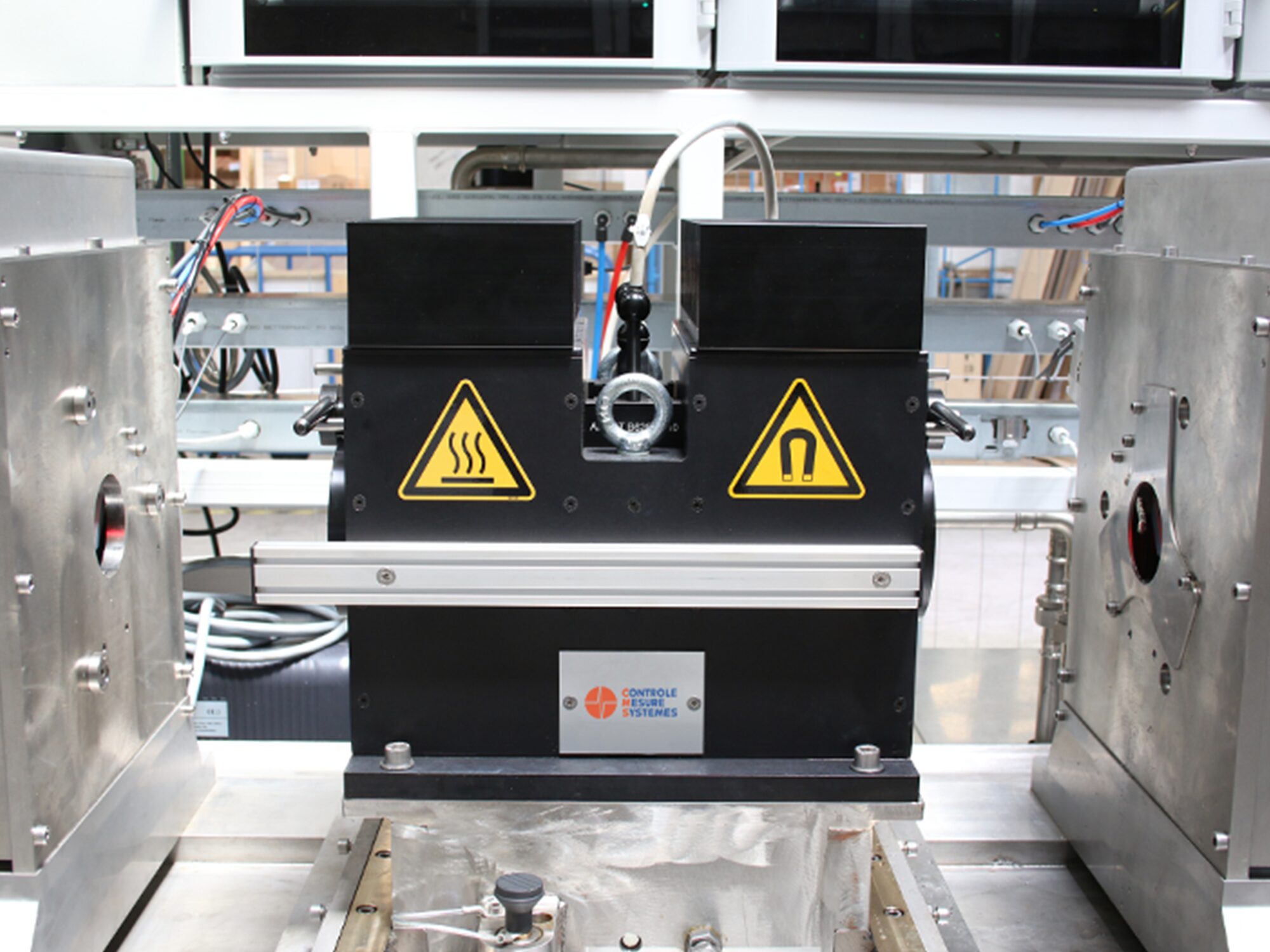

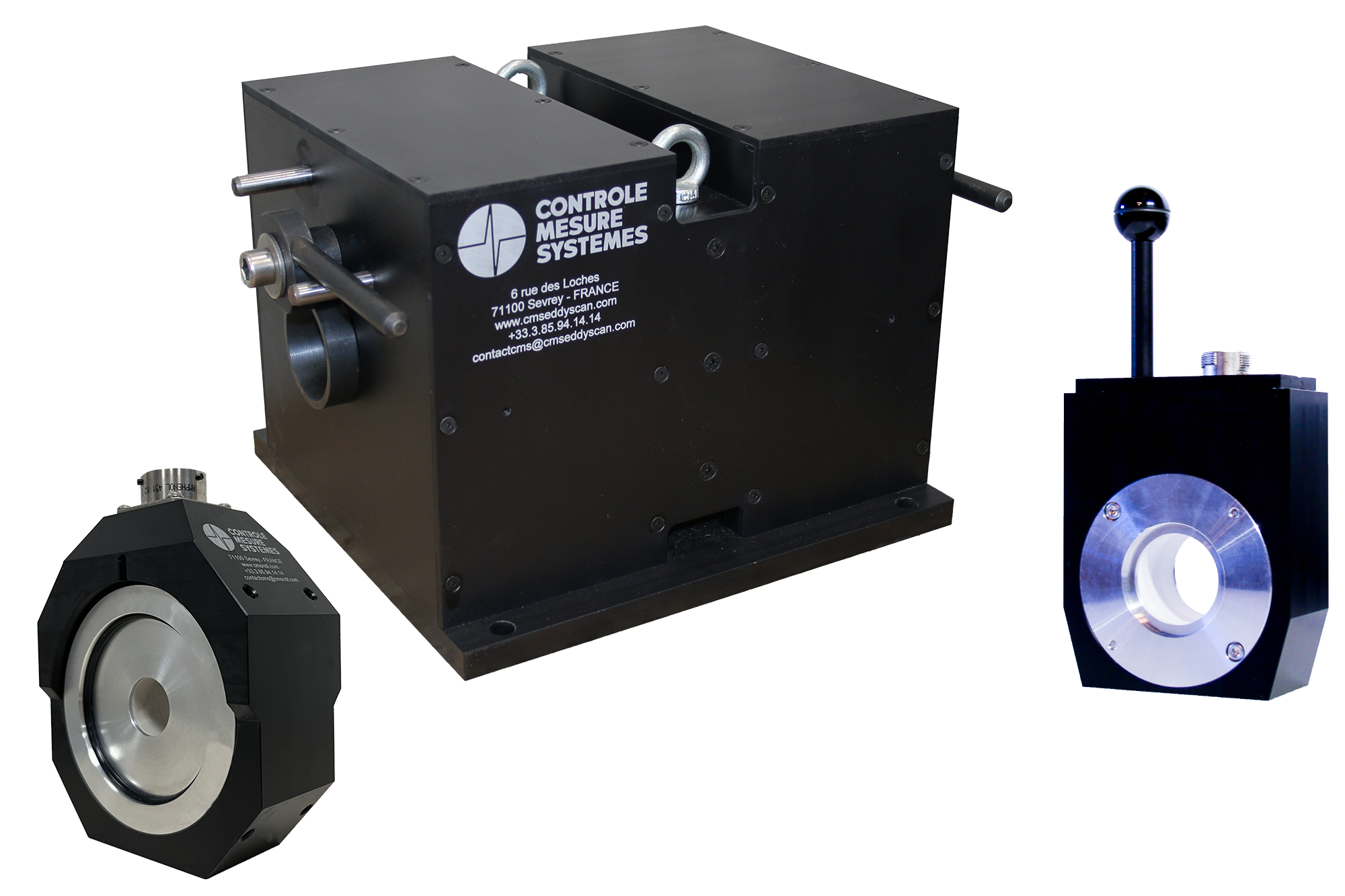

Magnetizing Unit

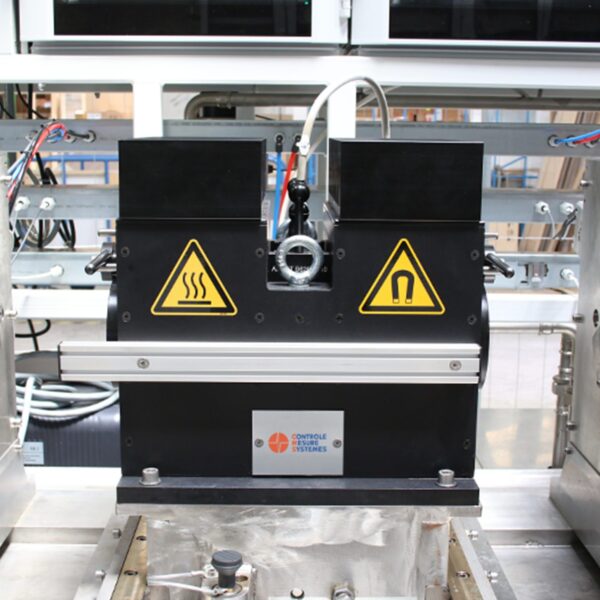

Eddy Current inspection of ferromagnetic bars to detect short and transverse defects on surface/subsurface

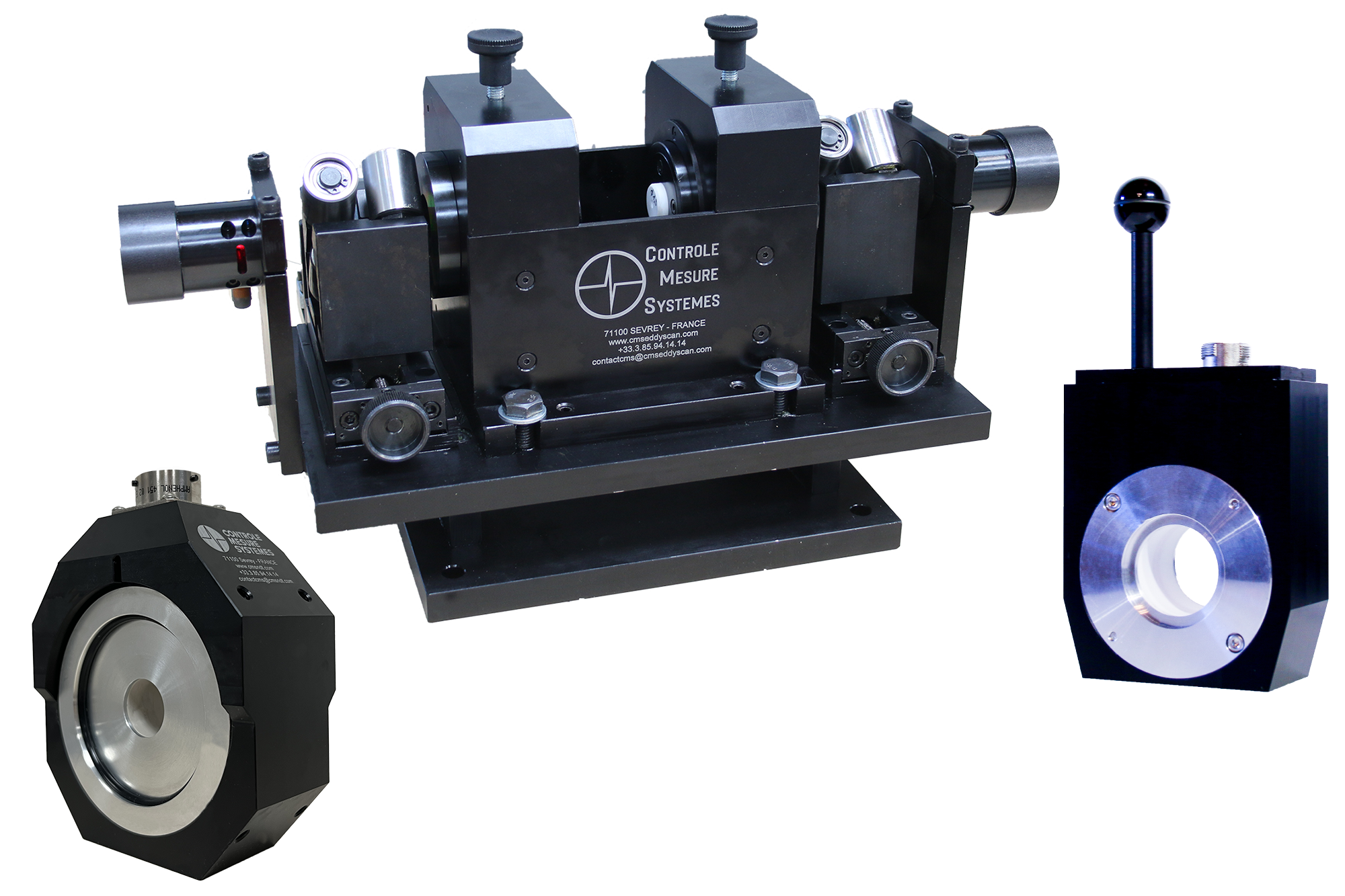

Encircling Coil with Support

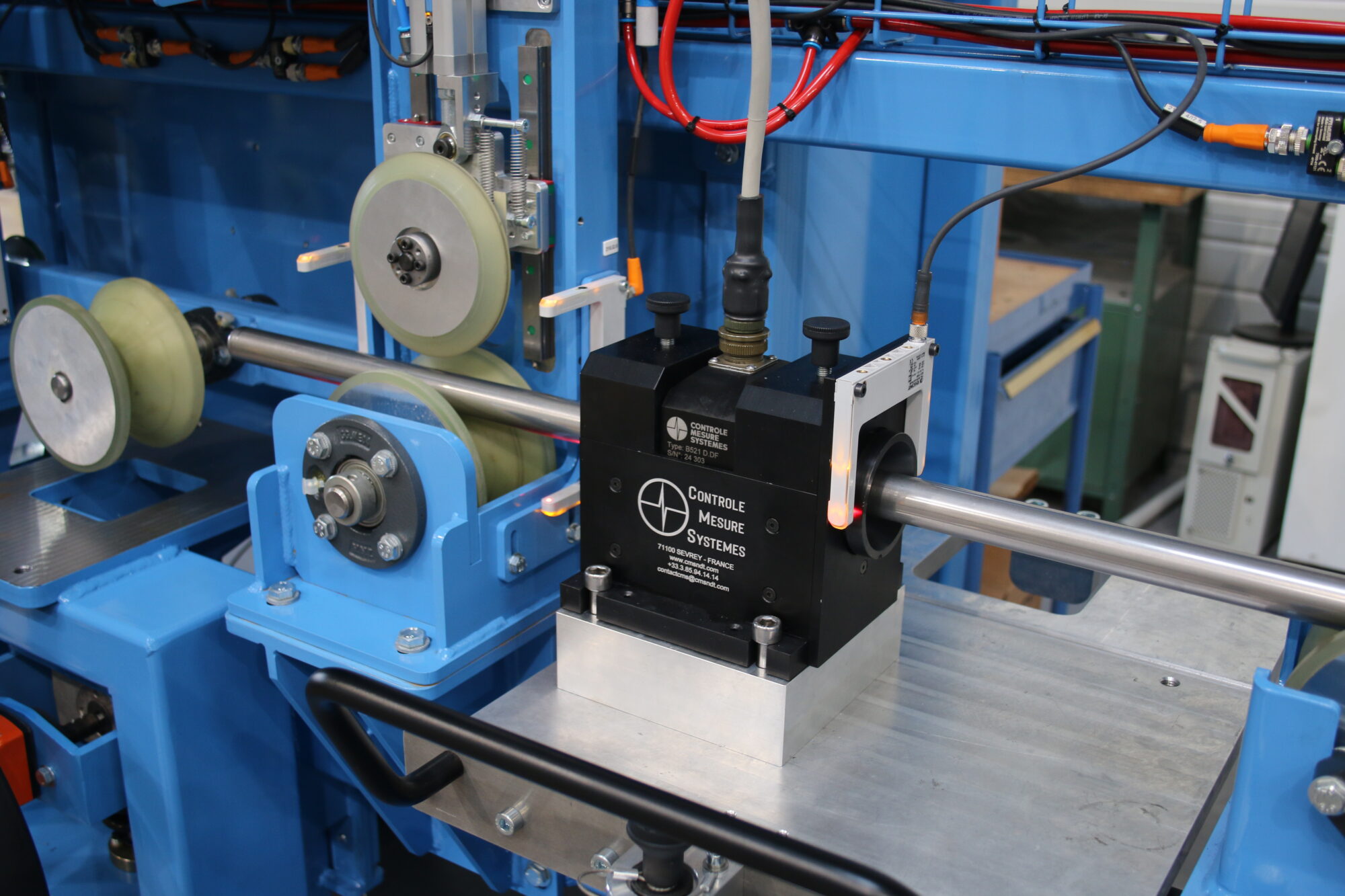

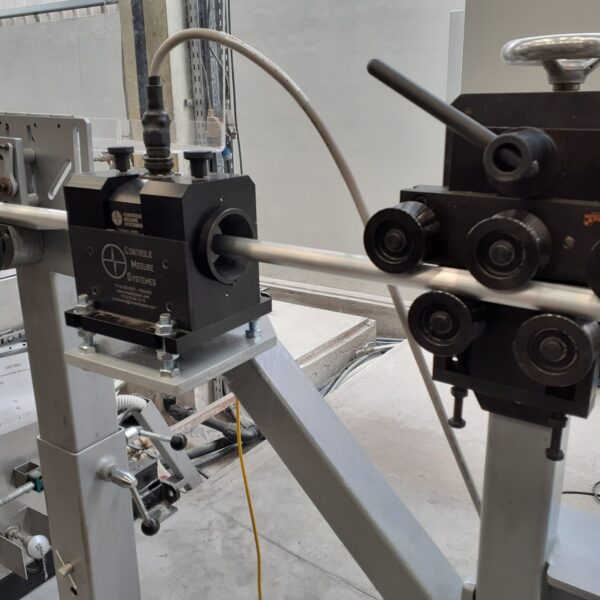

Eddy Current inspection of non-magnetic bars to detect short, transverse defects on surface/subsurface

Immersion Tank

Immersion tank are fully integrated system allowing scanning inspections of bars using Ultrasonic technology

UT Line Range

Ultrasonic Phased Array inspection system allowing a very high speed inspection of bars to detect FBH, SDH and longitudinal defects

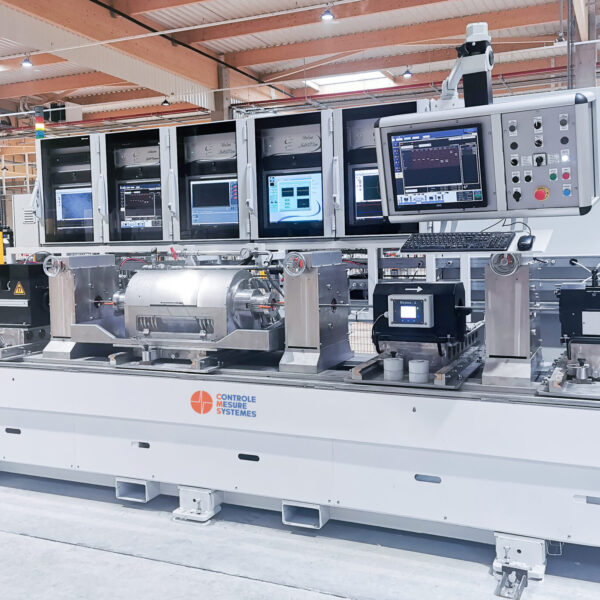

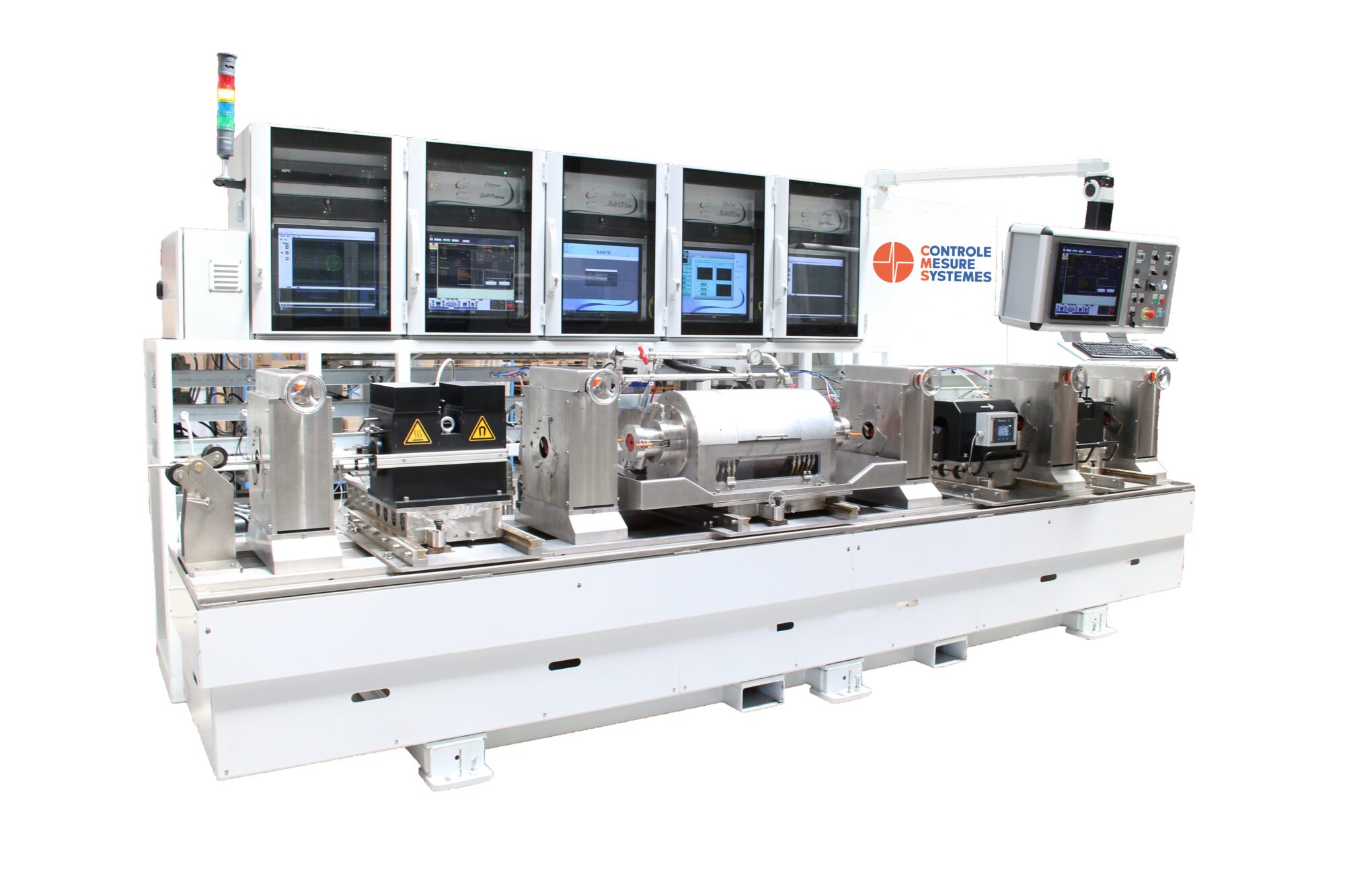

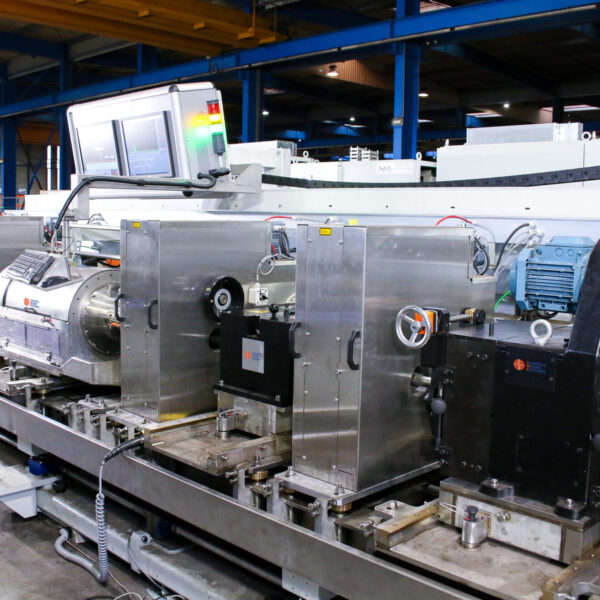

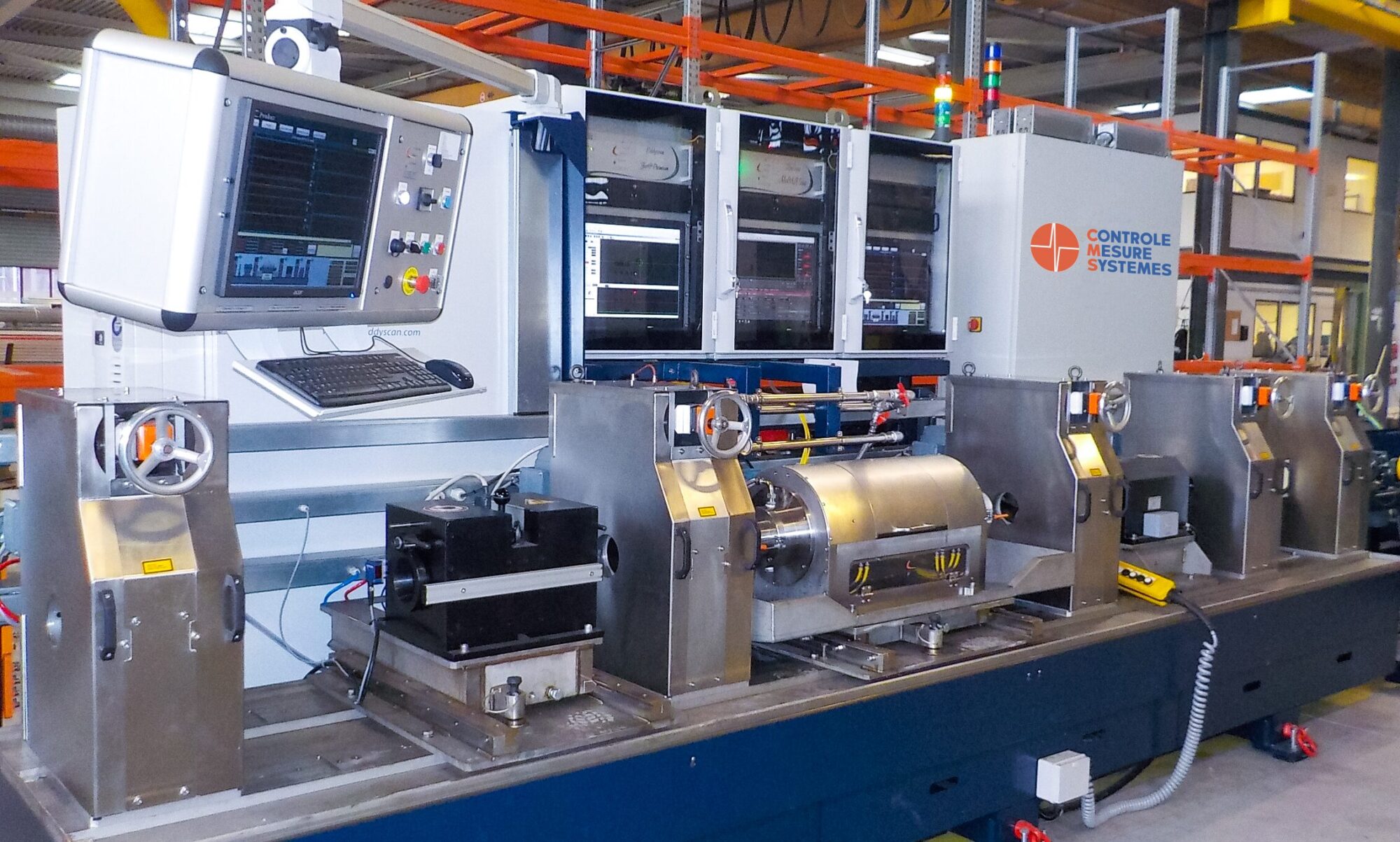

Combined Testing Bench

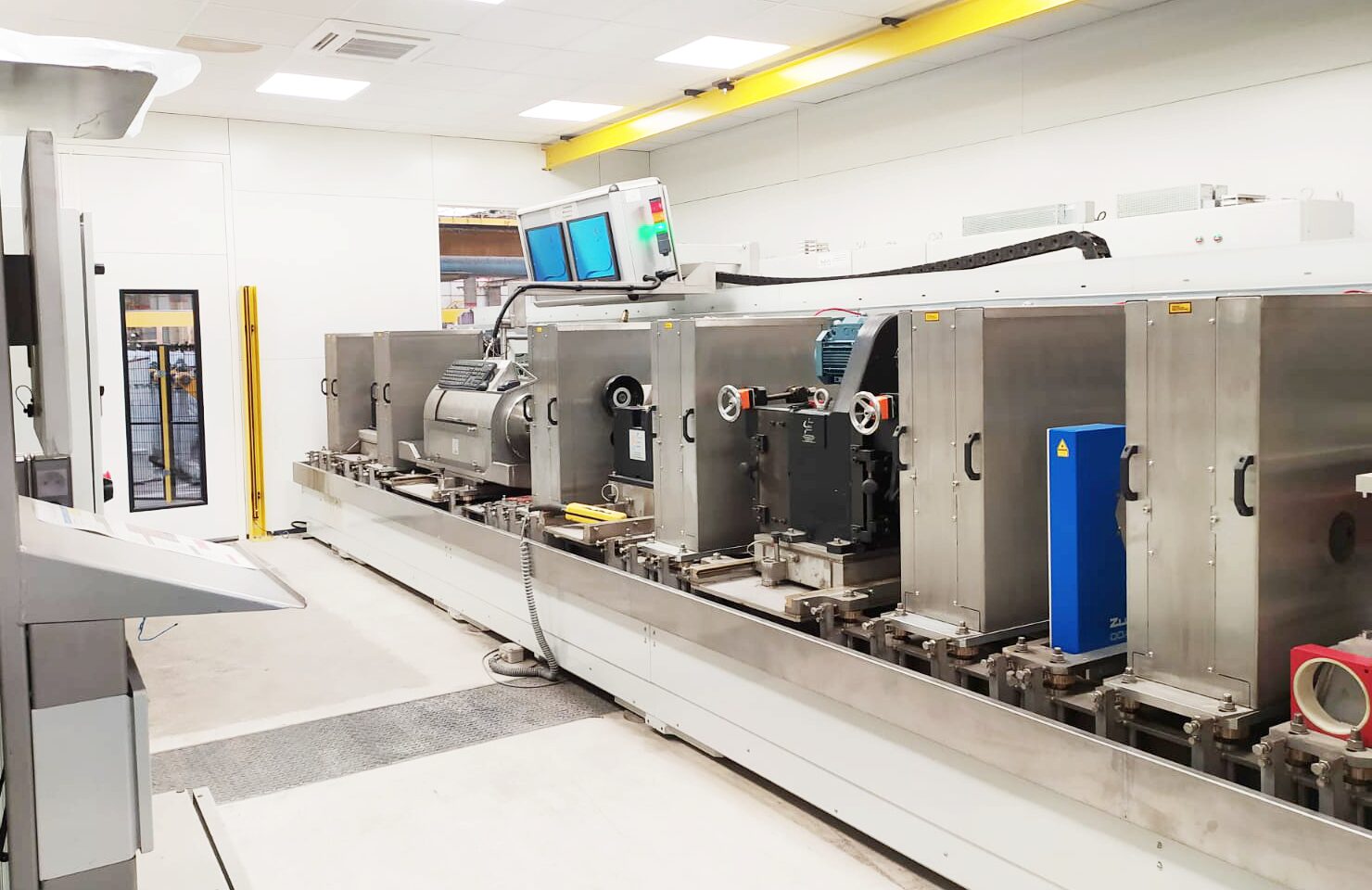

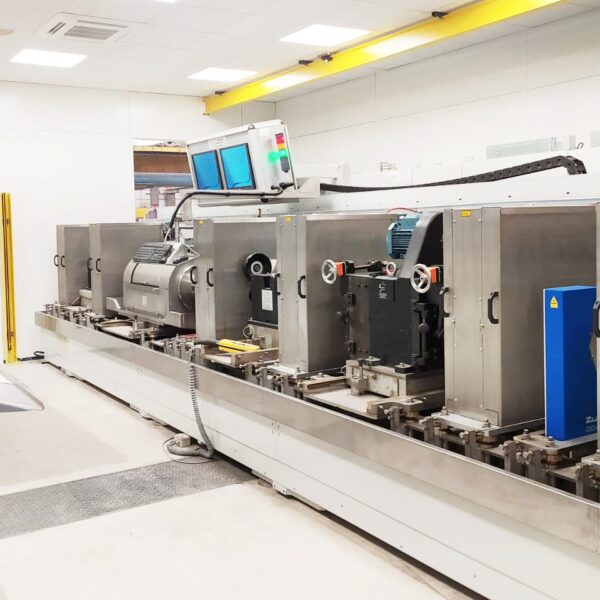

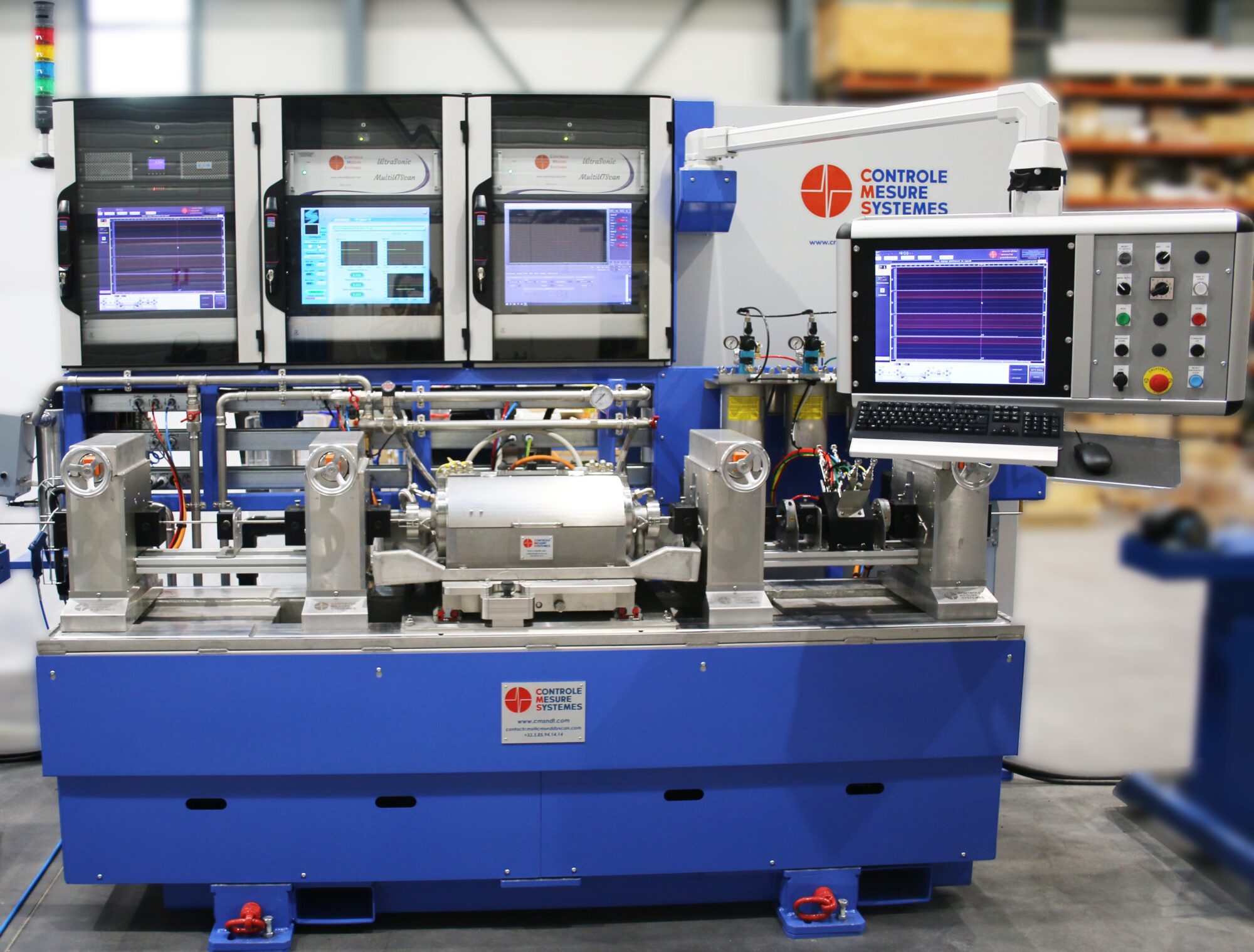

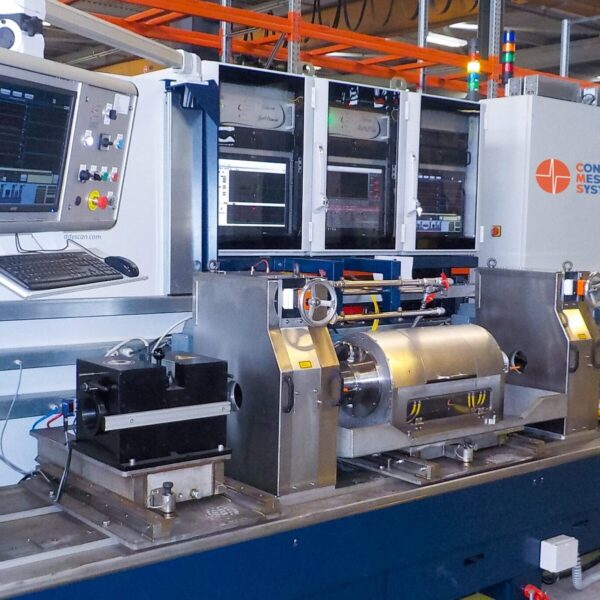

Combining both Eddy Current and Ultrasonic methods ensures a full body and full volumetric inspection of the product

All our Eddy Current and Ultrasonic systems meet the requirements of current European and international standards (ASTM, API, DIN, SEP, BS, ISO, ASME, ASNT…), calibration standards and comply with NF EN ISO 15548-1, NF EN ISO 15548-2, NF EN ISO 15548-3, NF EN ISO 22232-1.

our implemented systems

Discover our examples of NDT inspections already carried out on bars:

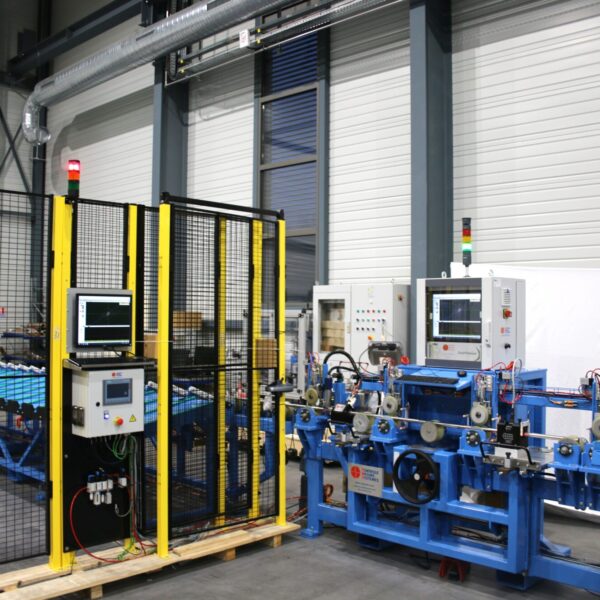

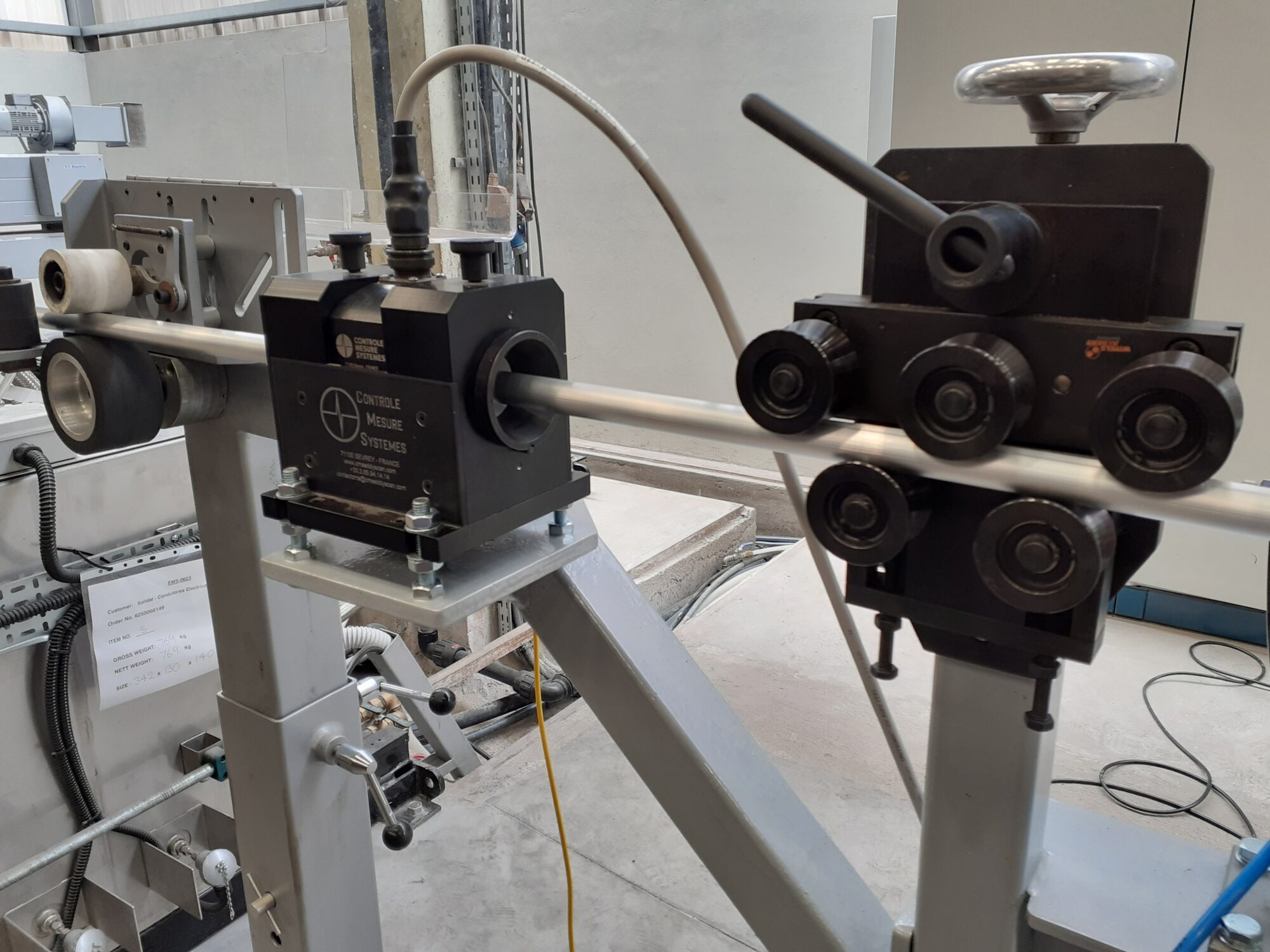

Short and transverse defects detection on non-magnetic products with Eddy Current encircling probes and coil holder

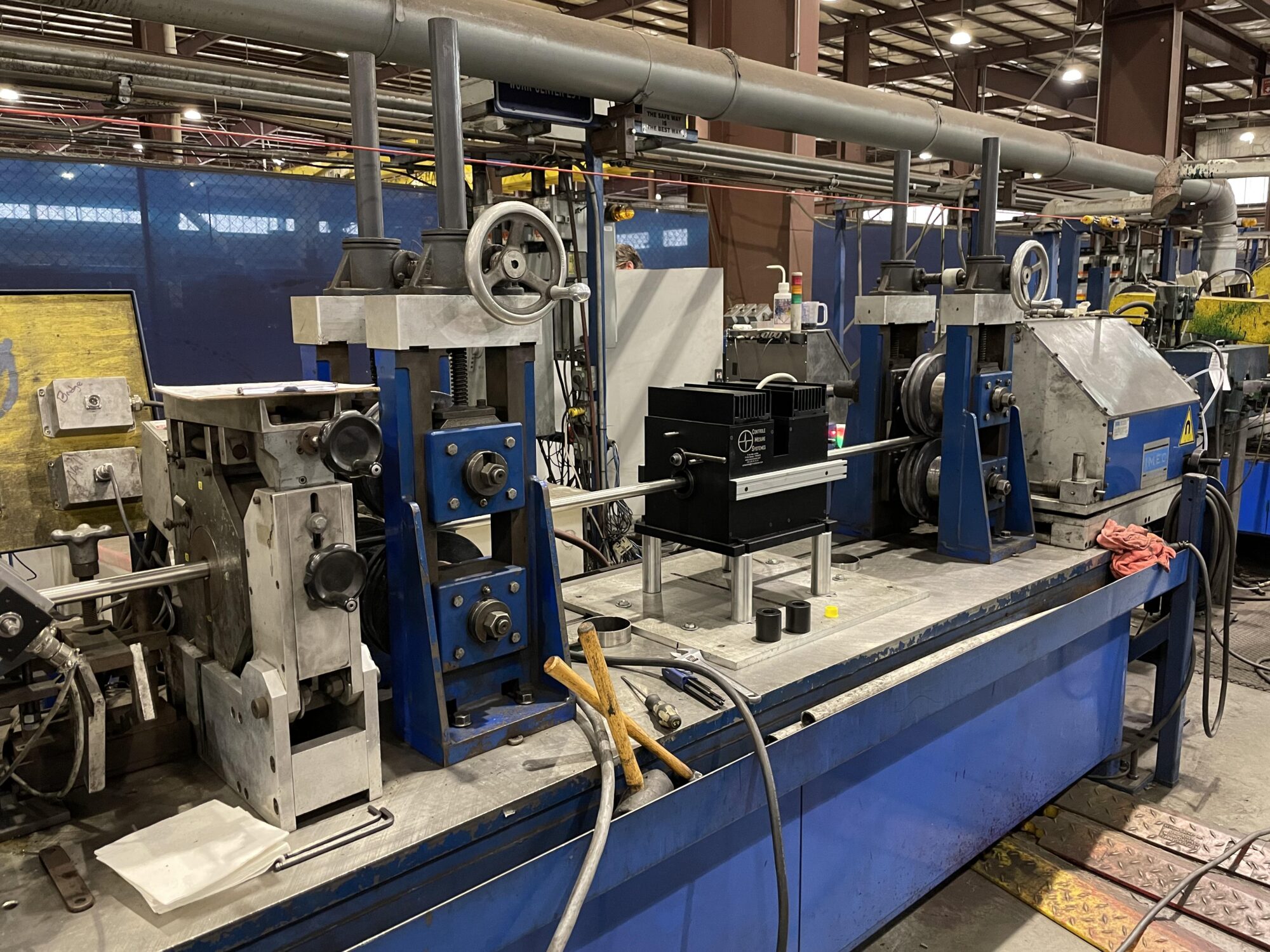

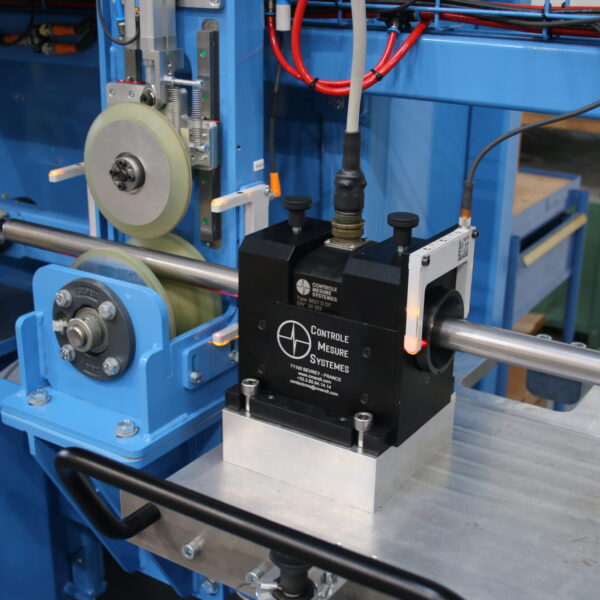

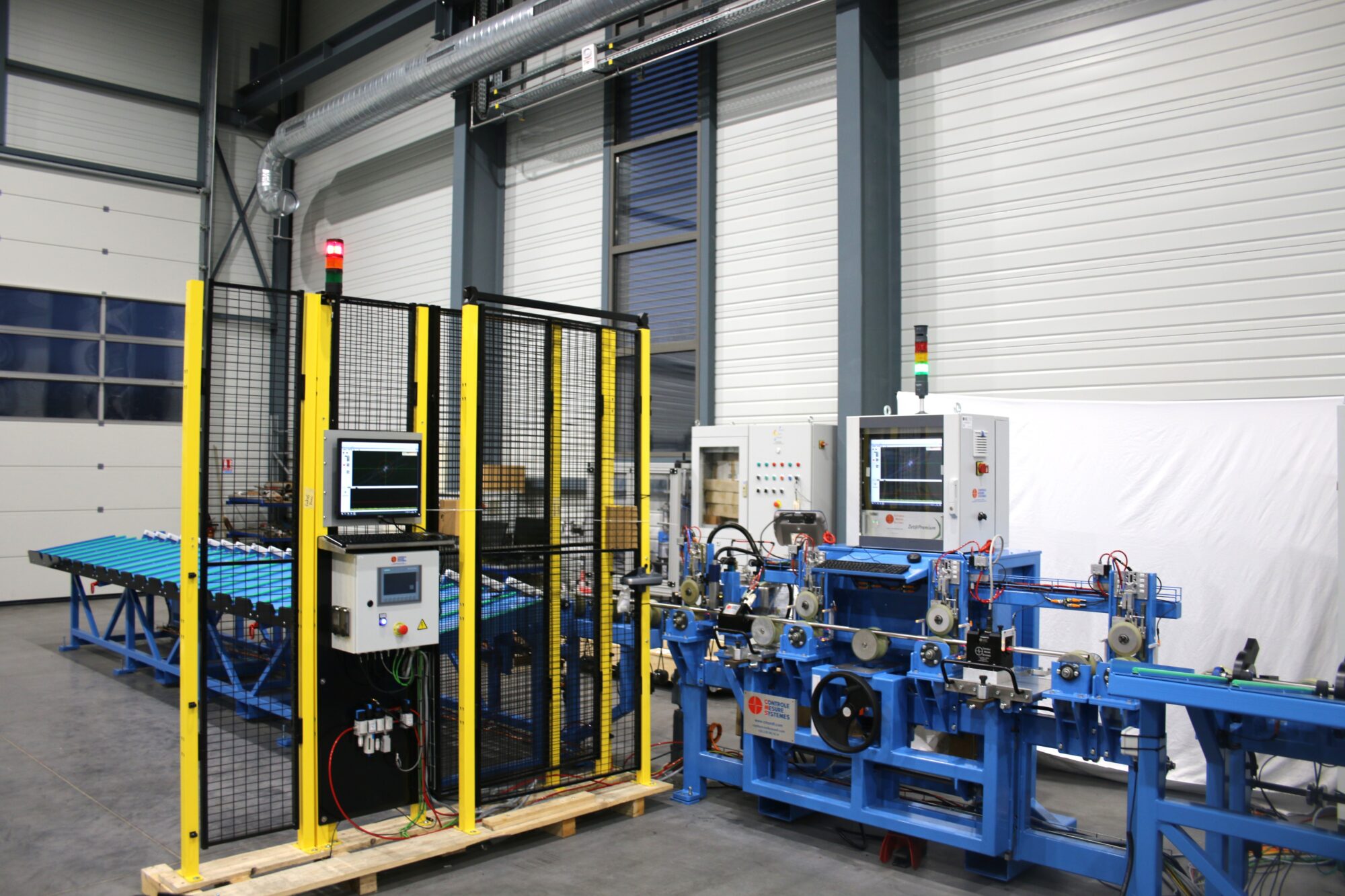

Short and transverse defects detection on magnetic products with Eddy Current Magnetizing unit

Surface/subsurface longitudinal defects detection with Eddy Current rotating head RotoETscan

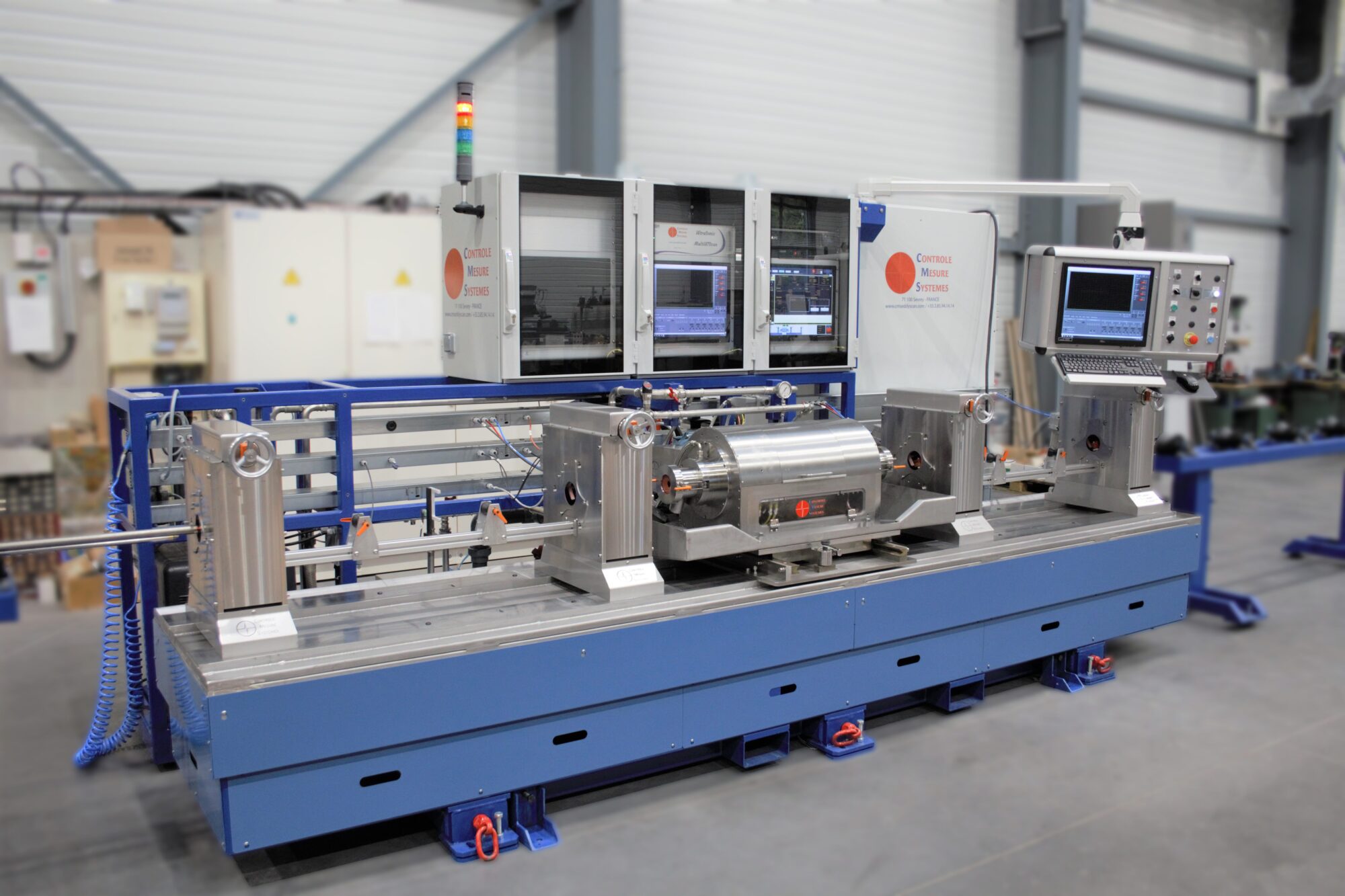

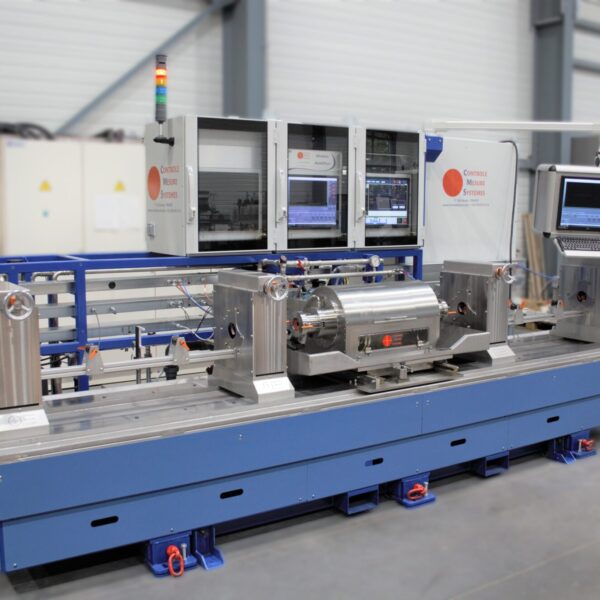

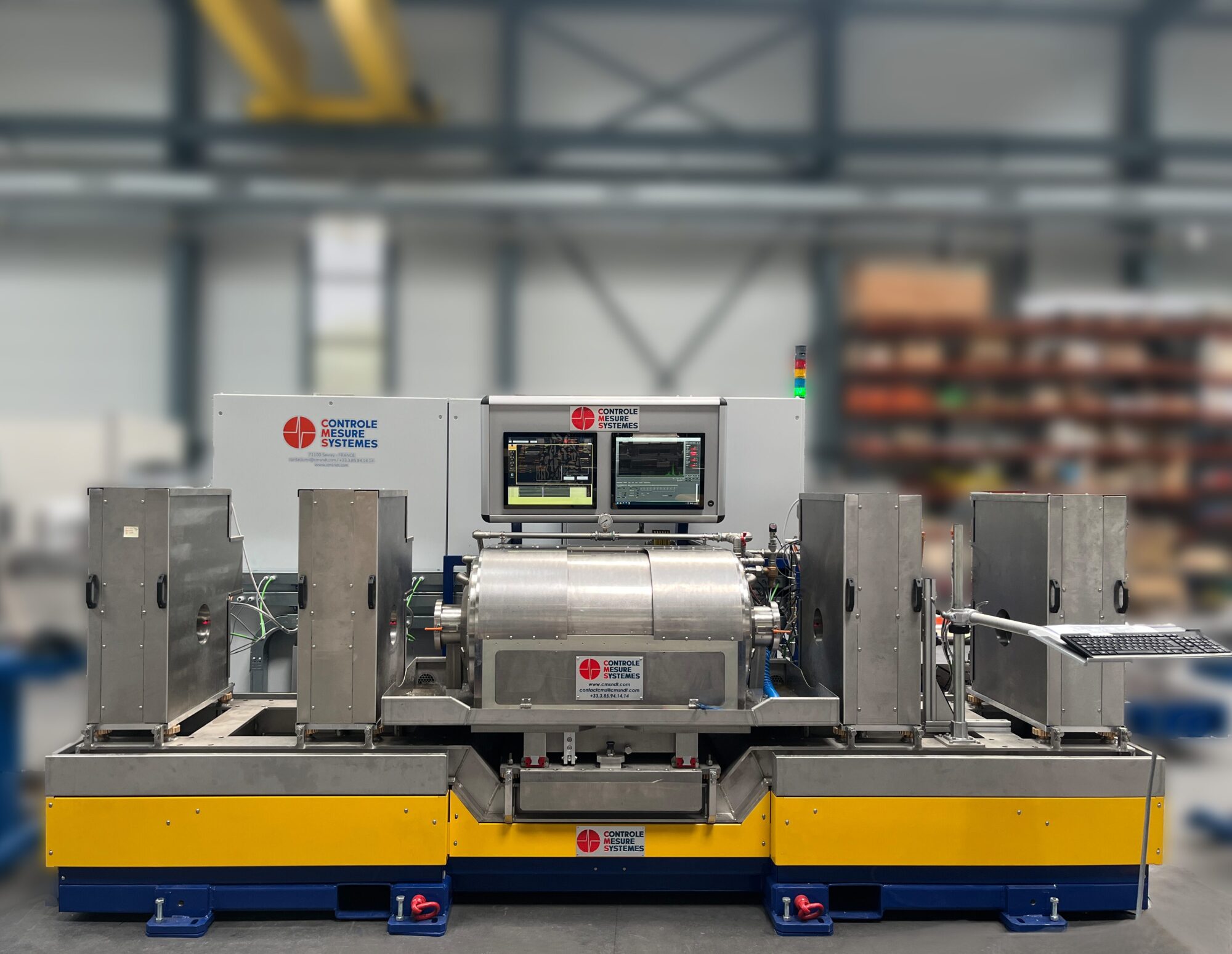

Internal and external defects detection of any orientation on circular products with Ultrasonic rotating head RotoUTscan

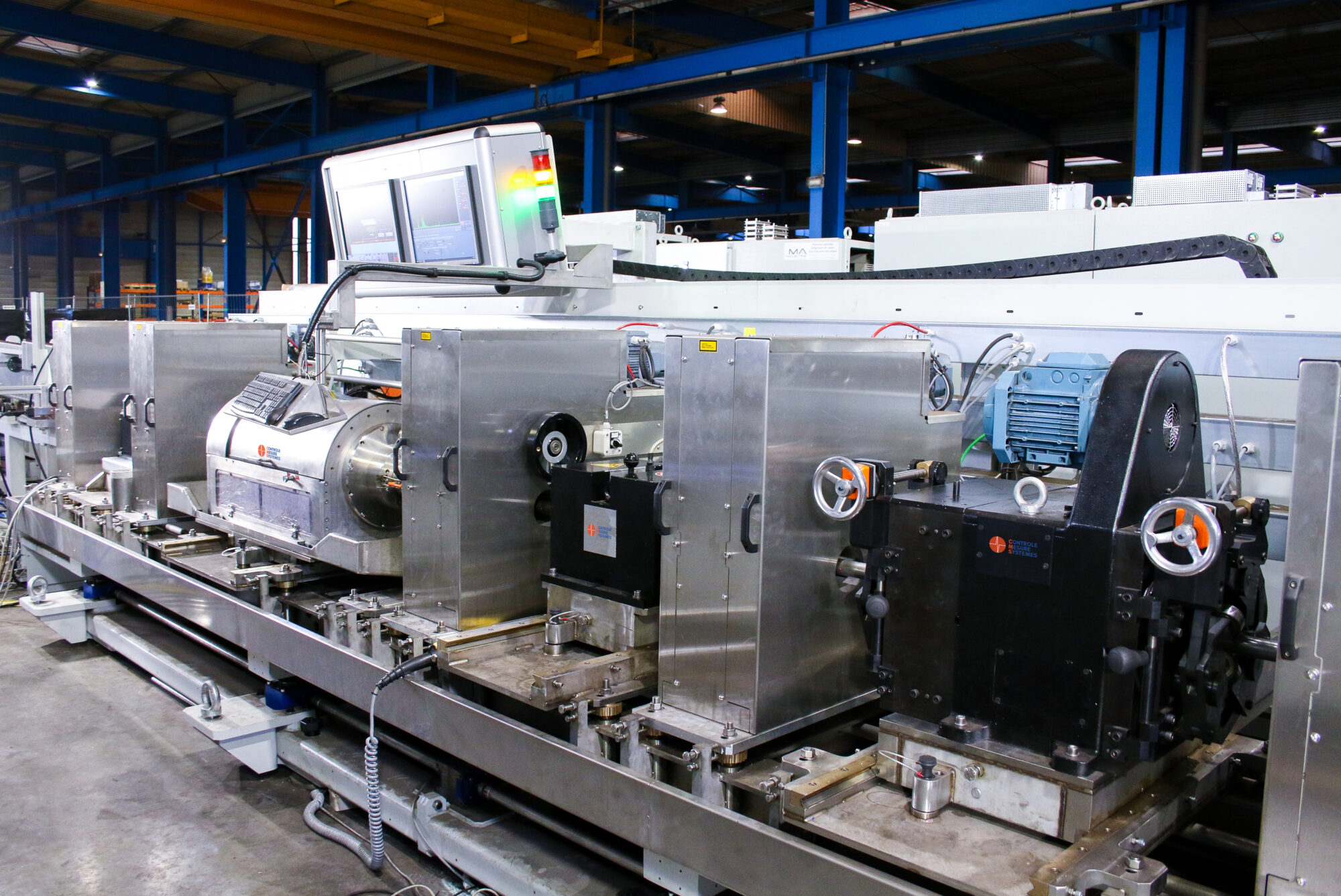

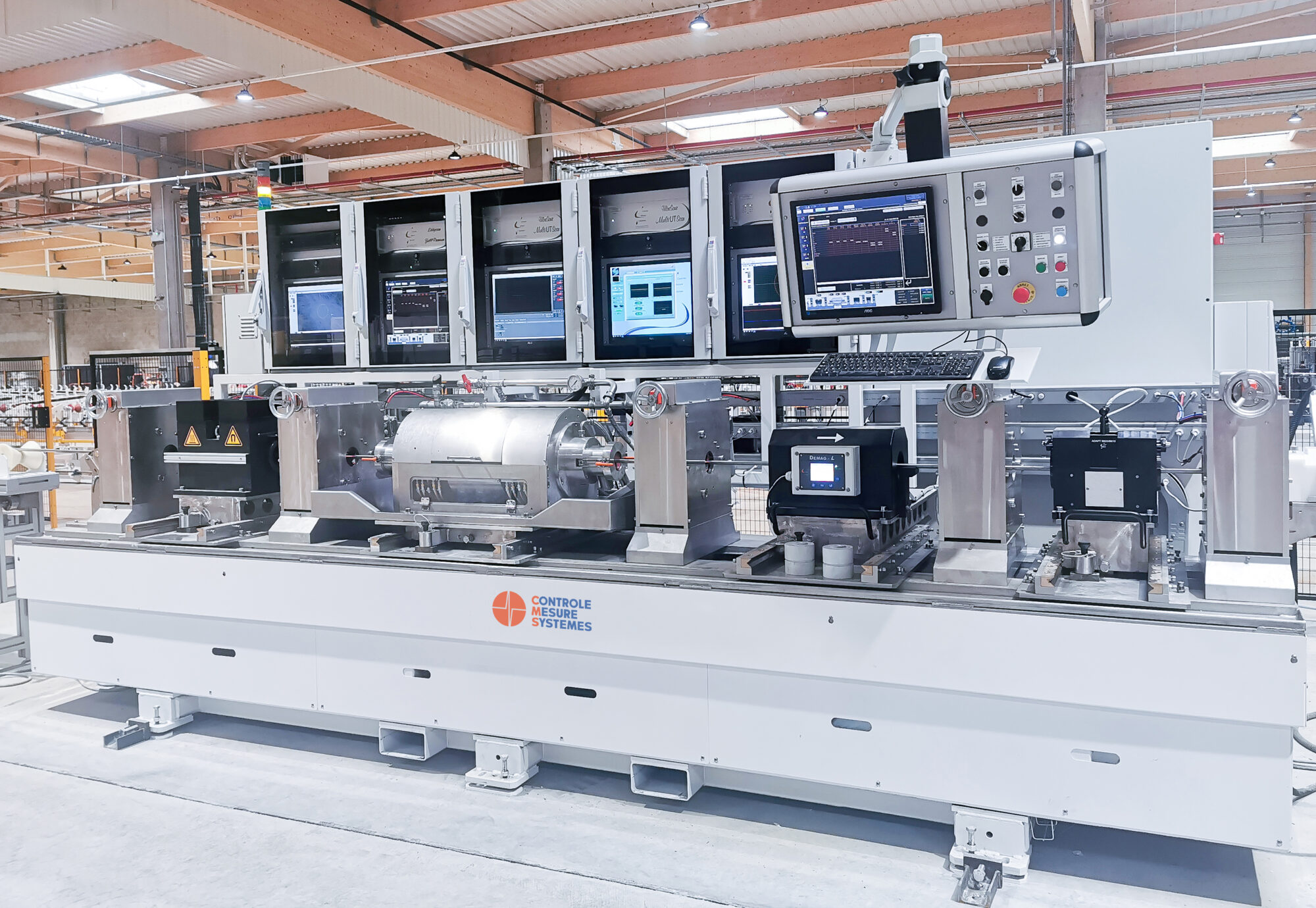

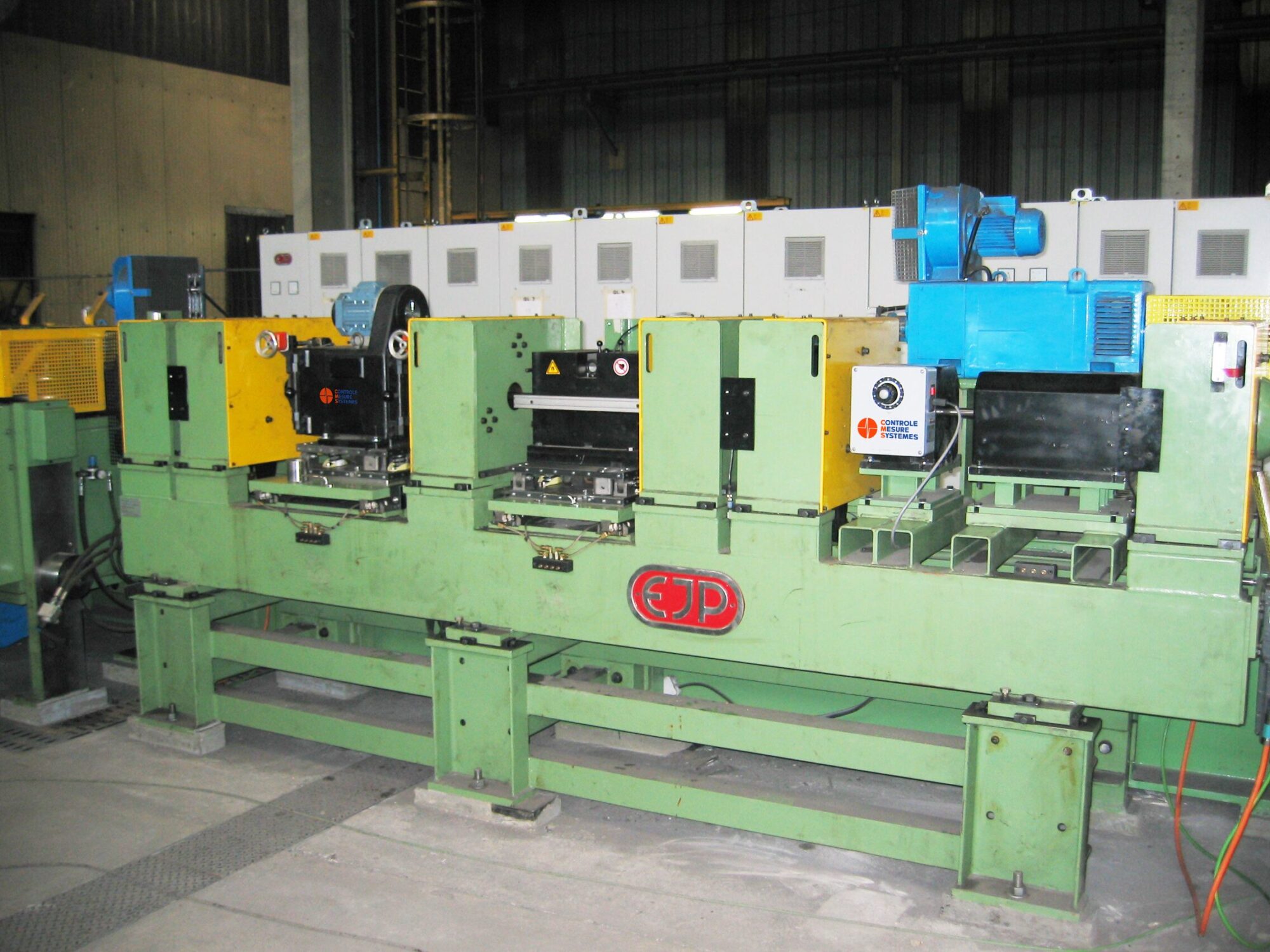

Complete inspection for longitudinal, short and transverse defects detection using Eddy Current and Ultrasonic technologies

Eddy Current inspection of precision bars

Material sorting thanks to encircling sorting probes

Detection of punctual and transverse surface/sub-surface defects of continuous magnetic bars thanks to opening magnetizing unit

our main references in the field

CMS strengths / Added value

Since 1988, CMS designs manufactures and installs Non-Destructive Testing systems for bars inspection

Start with an Eddy Current/Ultrasonic product and build a 100% customized solution based on our experience and to meet your specific needs

Production and design of all Eddy Current & Ultrasonic probes, sensors and software on our own premises (mechanical and electronic design office, engineering, etc.)

Highly responsive in providing assistance and information to our customers

A wide range of complementary Eddy Current/Ultrasonic systems/accessories that can be combined for bars inspection

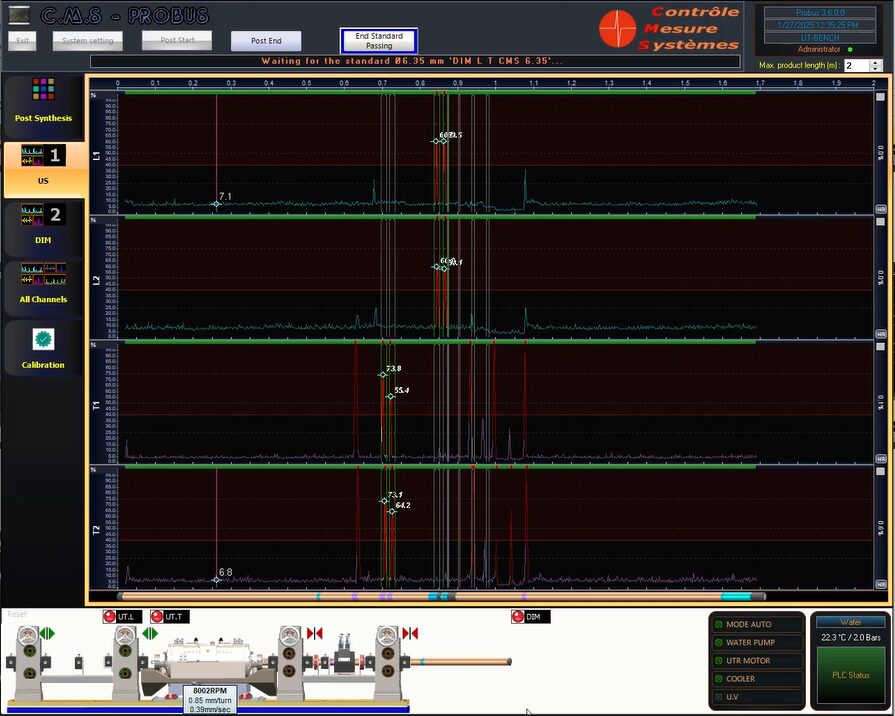

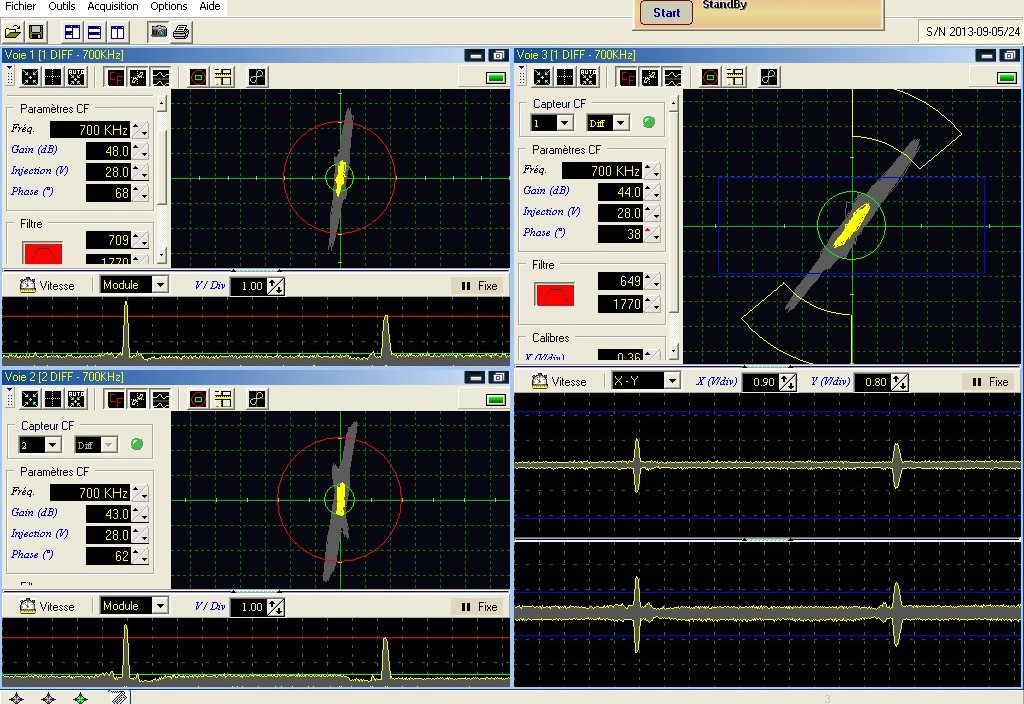

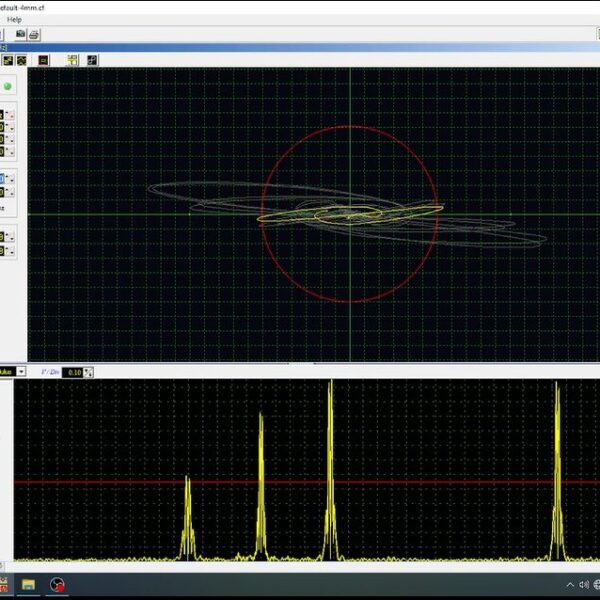

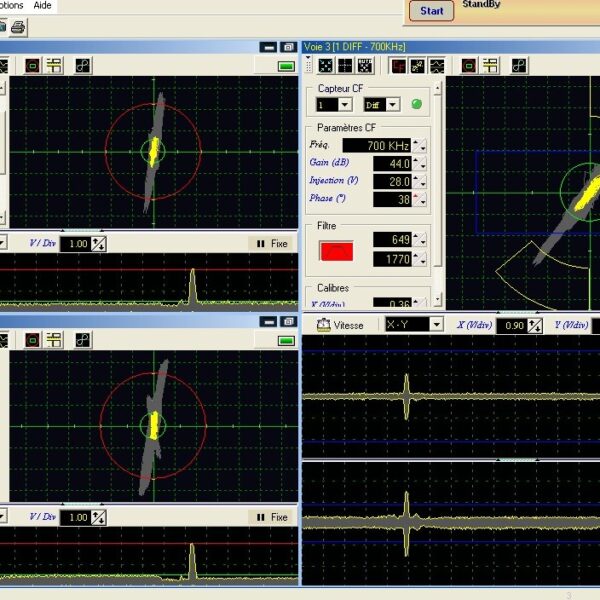

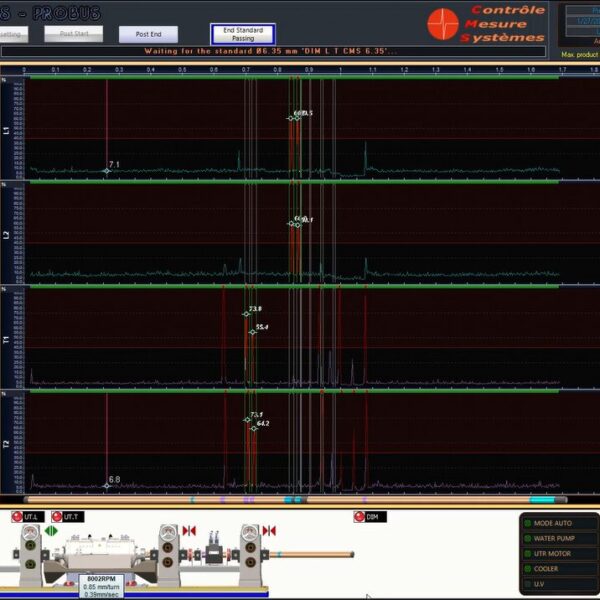

Eddy Current and Ultrasonic inspection results are displayed in real time and traceability is ensured by our production software which creates complete inspection reports

Inspection speed optimized to production constraints

INNOVATION: Ability to combine Eddy Current and Ultrasonic inspection methods for 100% product inspection
